Disassembly And Reassembly (AWD): Notes

CAUTION: As for the EBJ assembly, only the EBJ boot can be replaceable, and other parts cannot be disassembled.

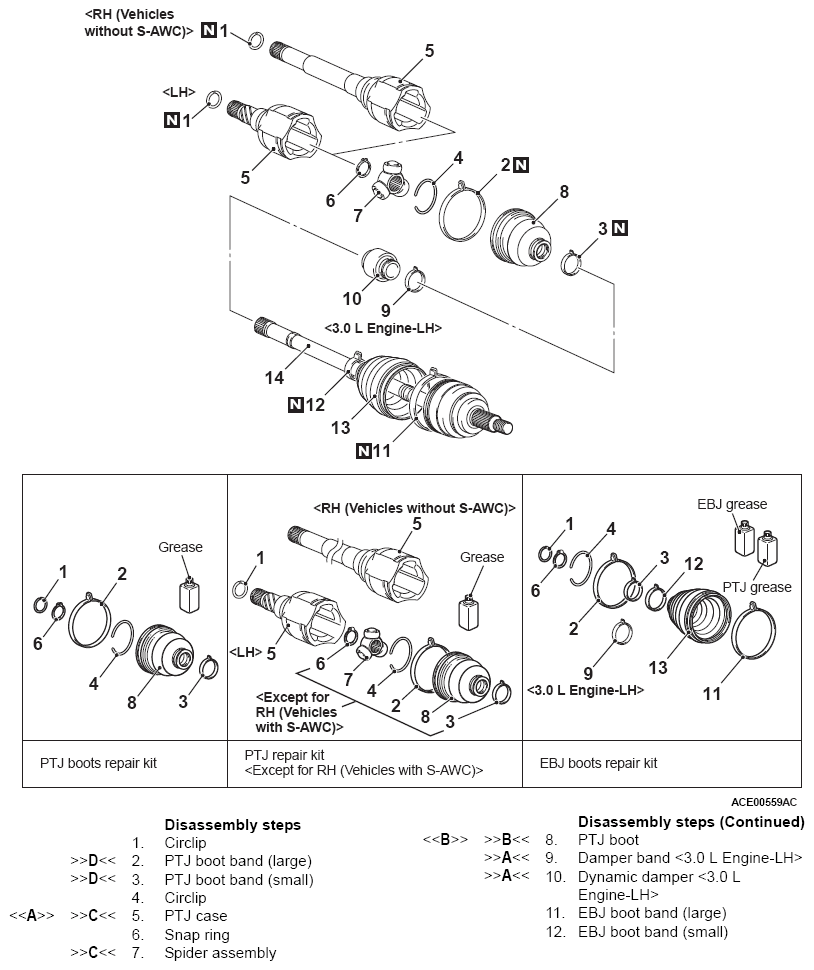

Fig 1: Exploded View Of EBJ Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For 2016:

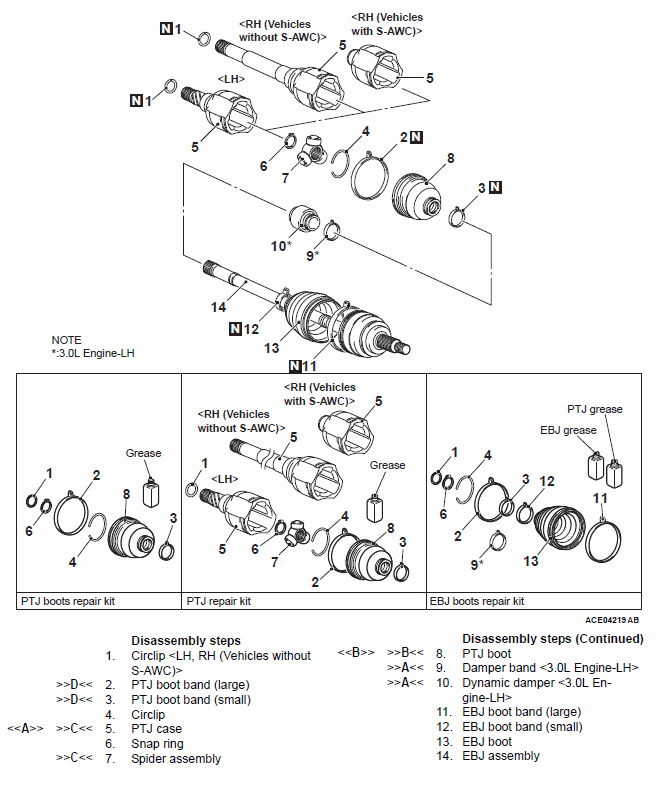

Fig 2: Exploded View Of EBJ Assembly (2016)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE:

LUBRICATION POINTS

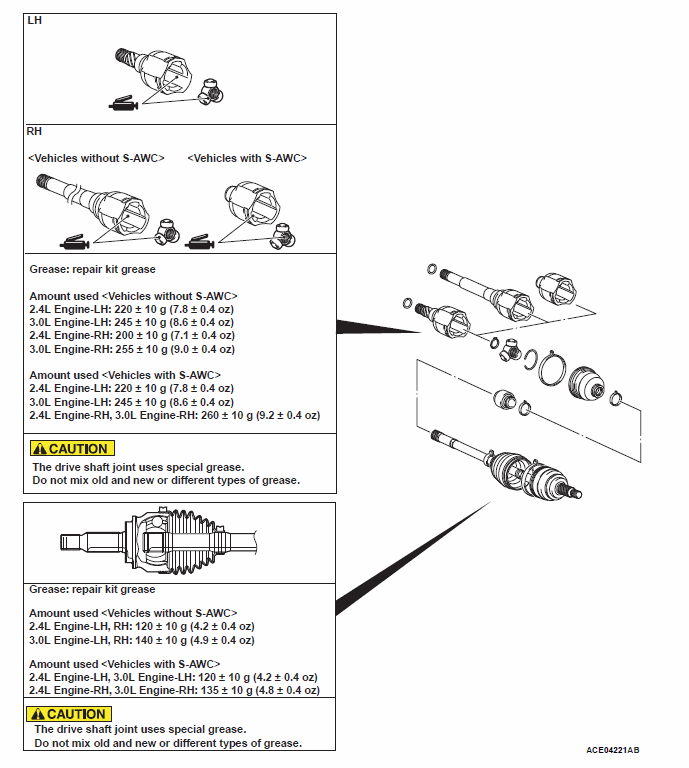

Fig 3: Identifying Lubrication Applying Area On High Efficiency Compact Birfield Joint

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For 2016:

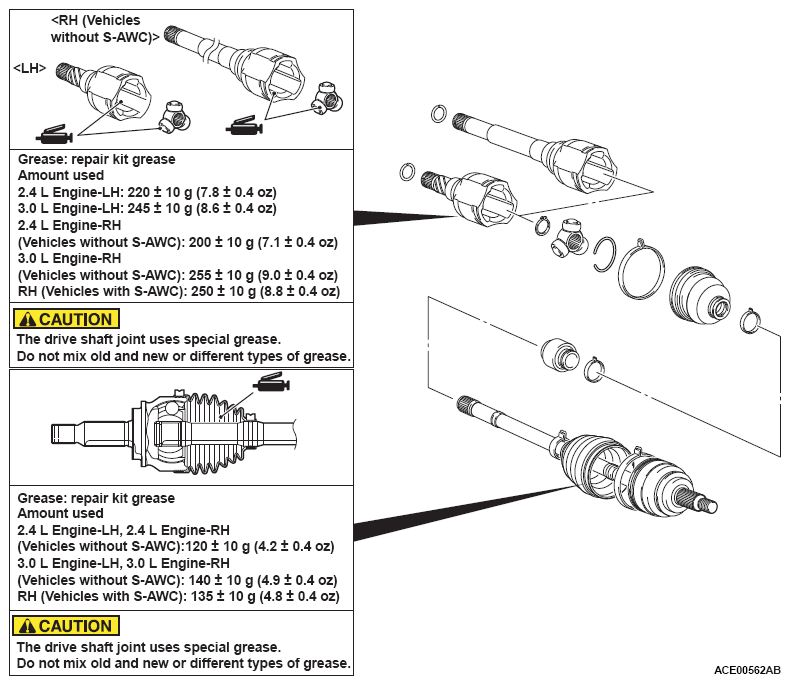

Fig 4: Identifying Lubrication Applying Area On High Efficiency Compact Birfield Joint (2016)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
