Power Distribution System

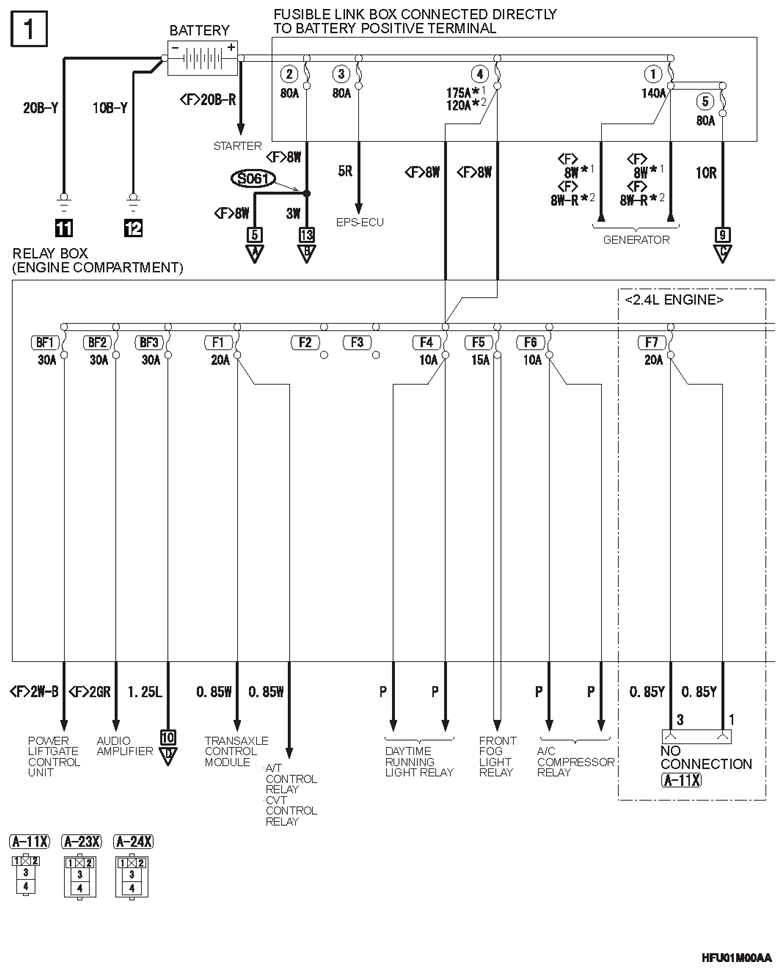

Fig 1: Power Distribution System Circuit Diagram (1 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

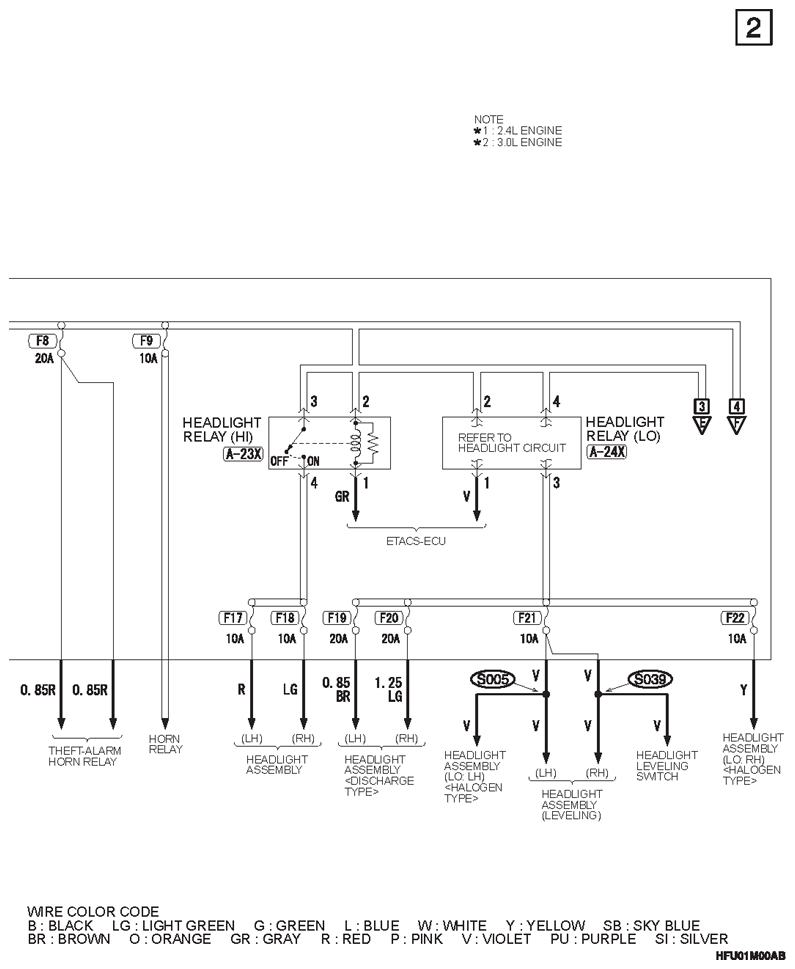

Fig 2: Power Distribution System Circuit Diagram (2 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

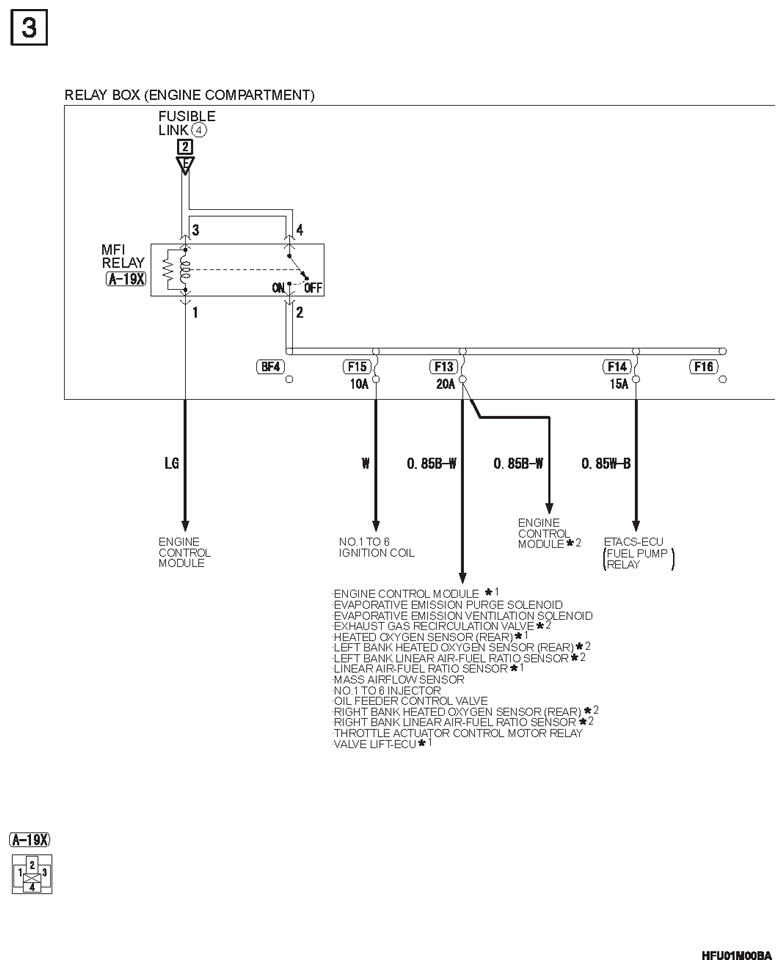

Fig 3: Power Distribution System Circuit Diagram (3 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

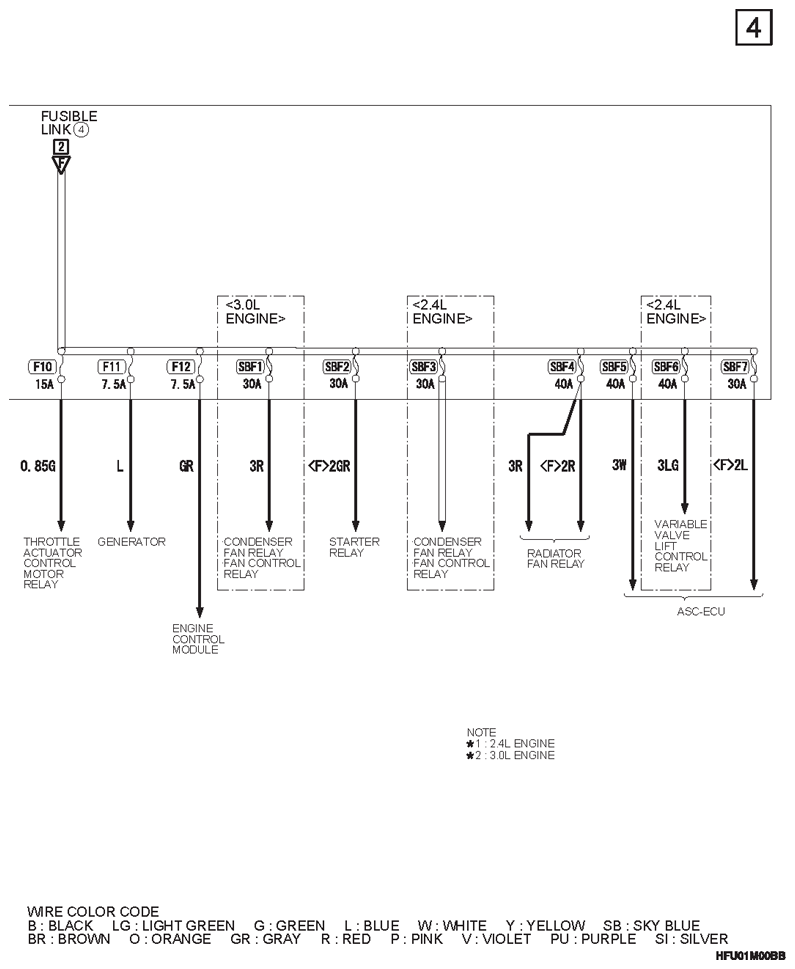

Fig 4: Power Distribution System Circuit Diagram (4 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

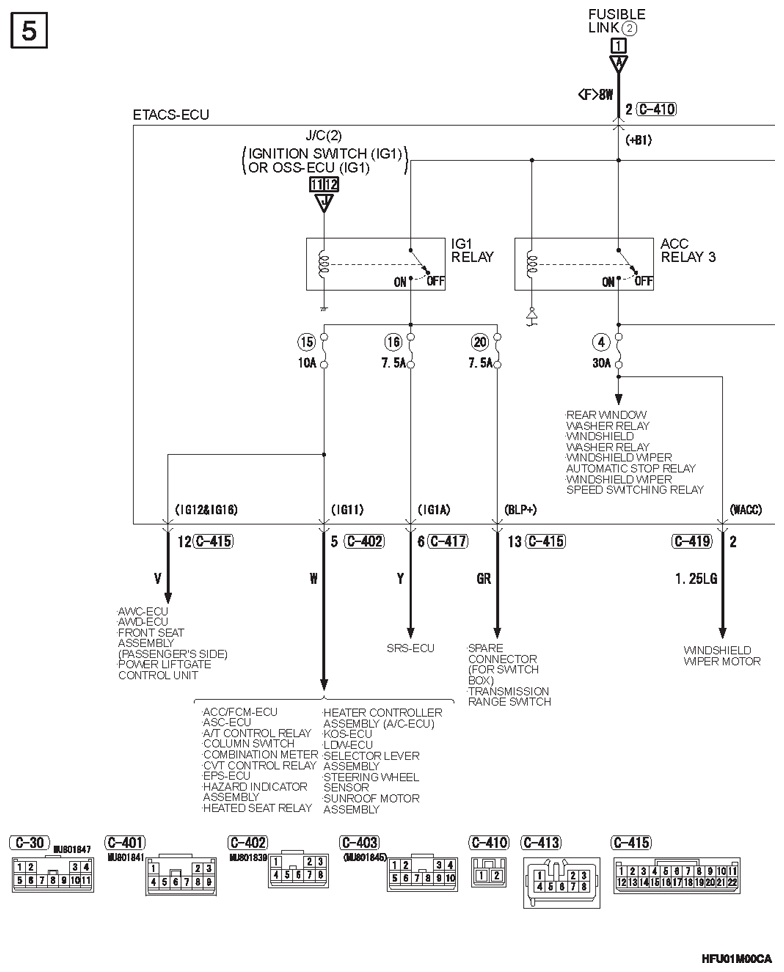

Fig 5: Power Distribution System Circuit Diagram (5 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

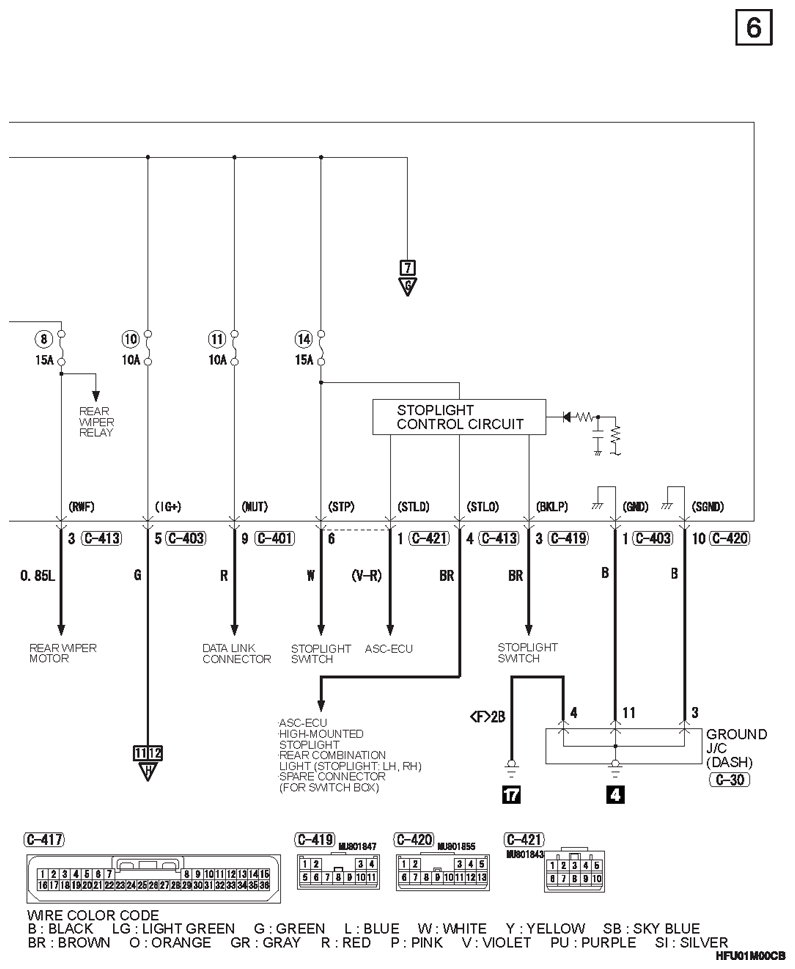

Fig 6: Power Distribution System Circuit Diagram (6 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

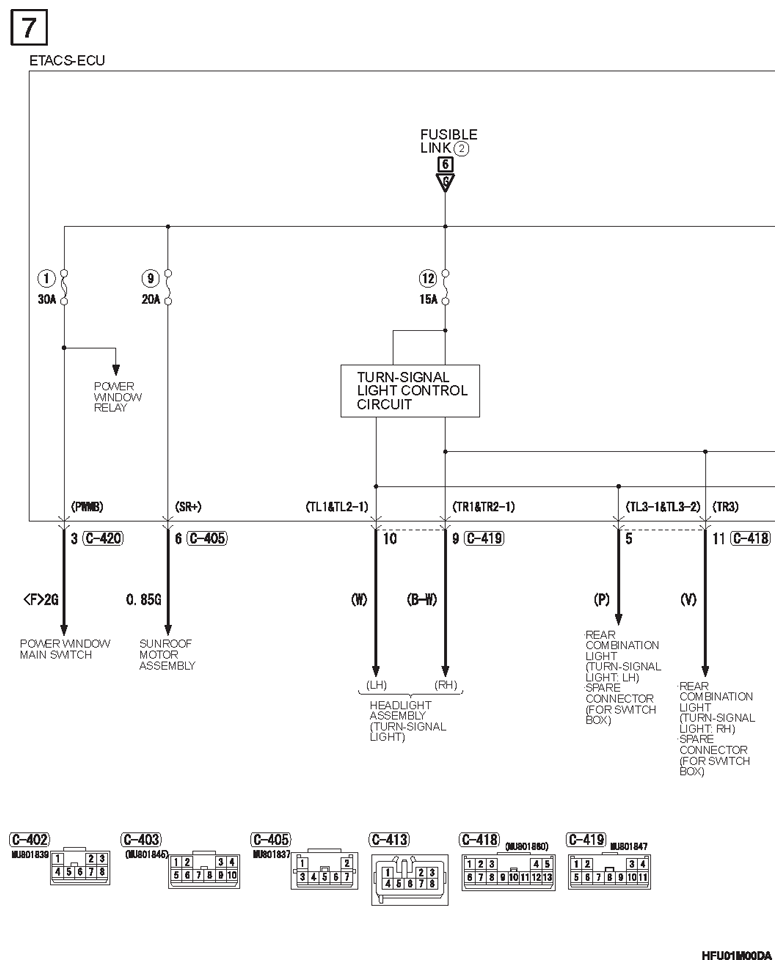

Fig 7: Power Distribution System Circuit Diagram (7 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

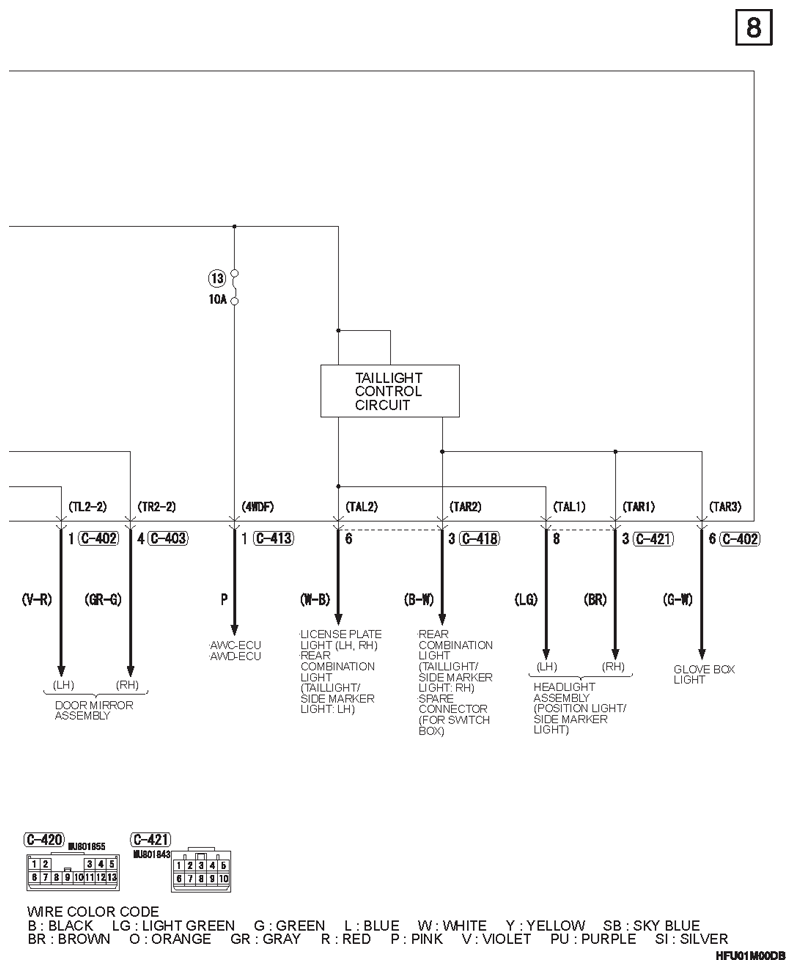

Fig 8: Power Distribution System Circuit Diagram (8 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

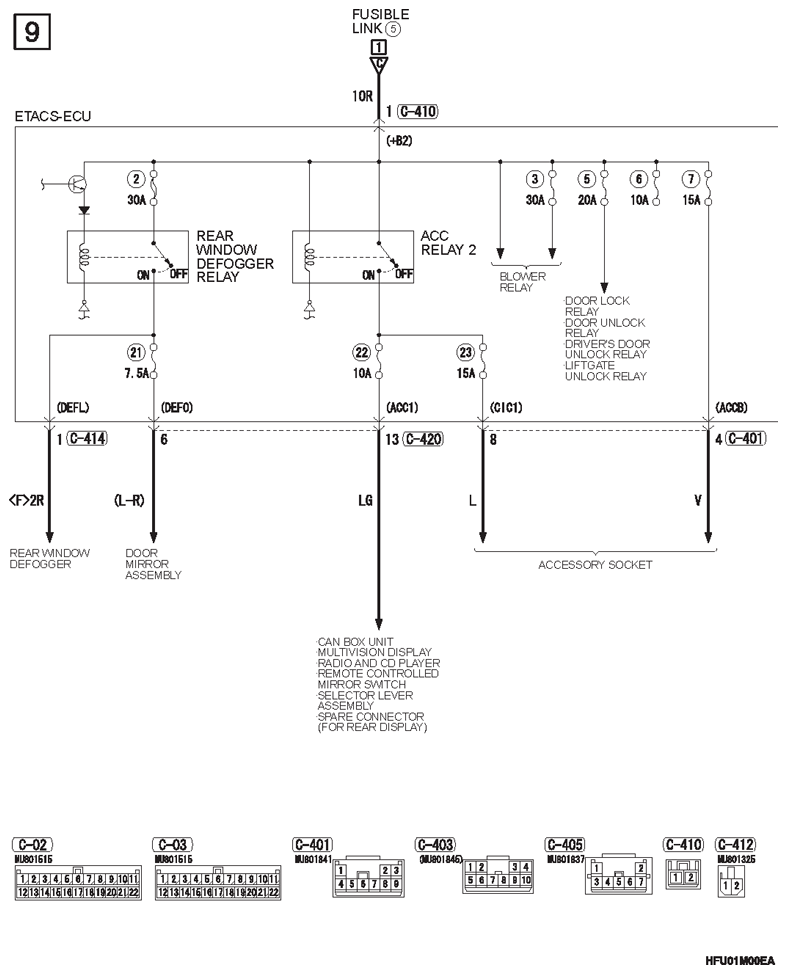

Fig 9: Power Distribution System Circuit Diagram (9 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

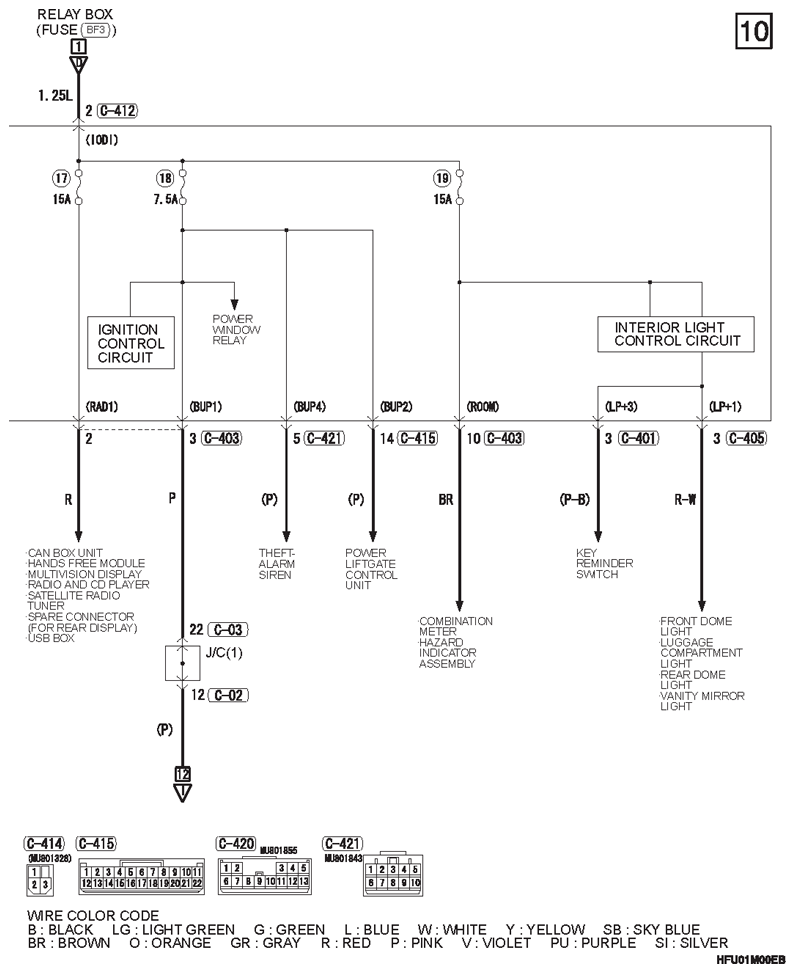

Fig 10: Power Distribution System Circuit Diagram (10 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

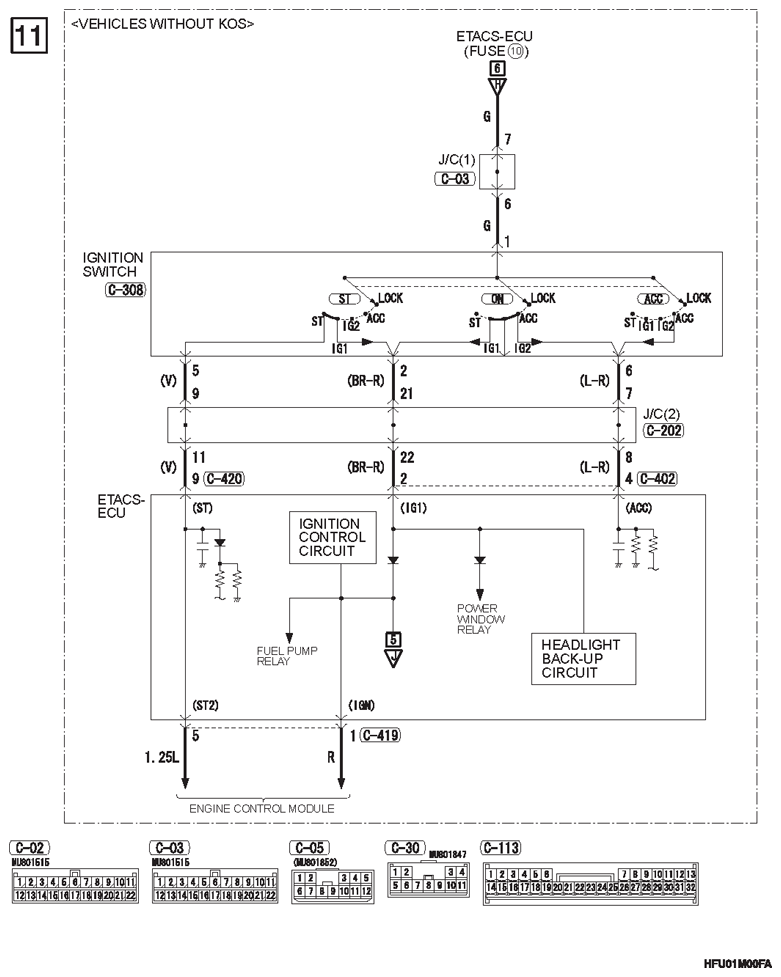

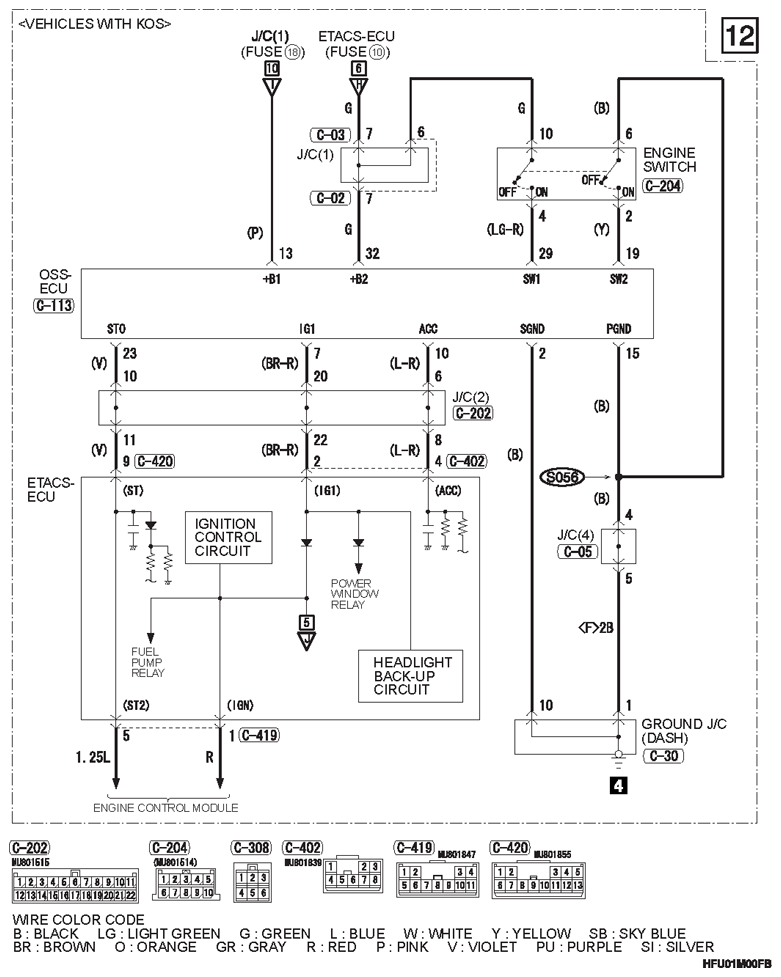

Fig 11: Power Distribution System Circuit Diagram (11 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 12: Power Distribution System Circuit Diagram (12 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

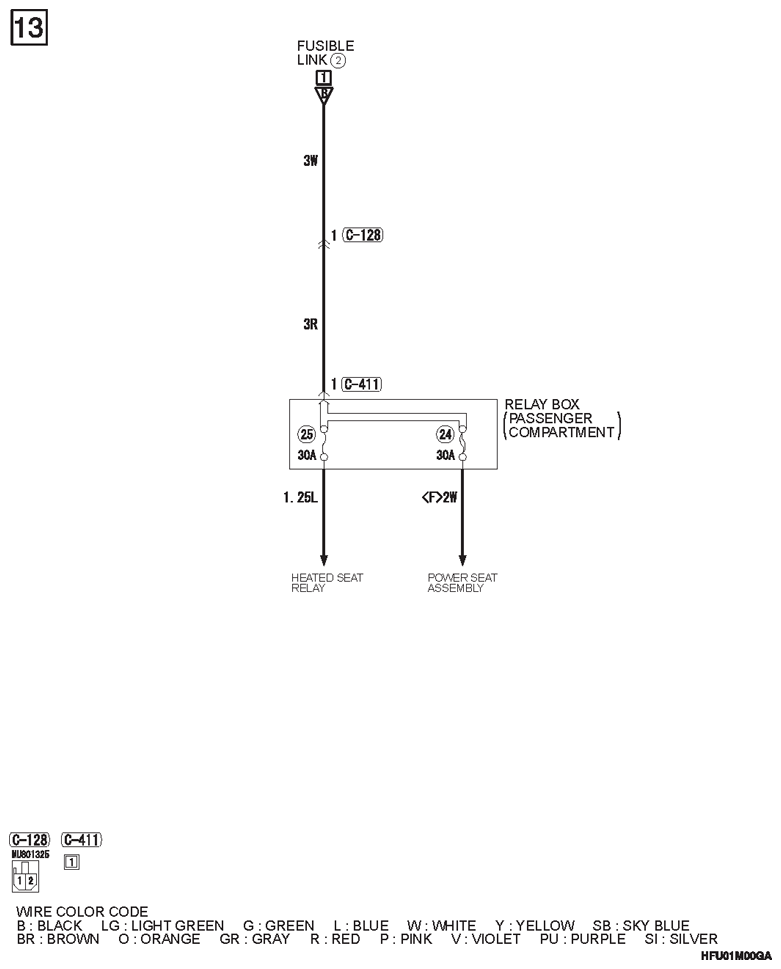

Fig 13: Power Distribution System Circuit Diagram (13 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
