Canister Removal And Installation: Notes

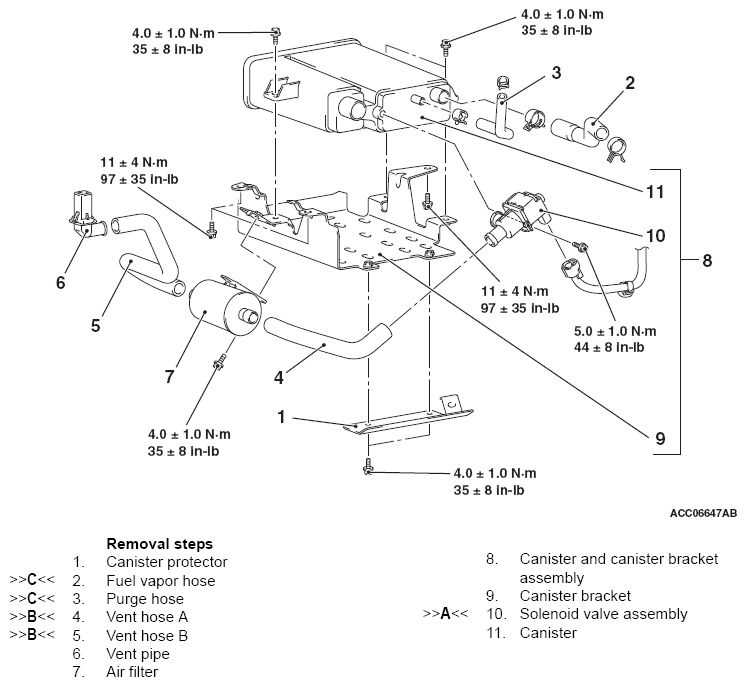

Fig 1: Removing/Installing Canister Components With Torque Specifications
G09628862Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
