Heated Seat Relay Continuity Check

Battery voltage Tester connection Specified condition
Not applied 3 - 4 Open circuit
  • Connect terminal 2 to the positive battery terminal
  • Connect terminal 1 to the negative battery terminal
 Continuity exists (2Ω or less)

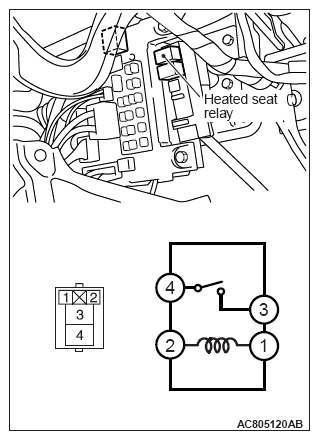

Fig 1: Heated Seat Relay Location
G09651729Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
