Joint Connector

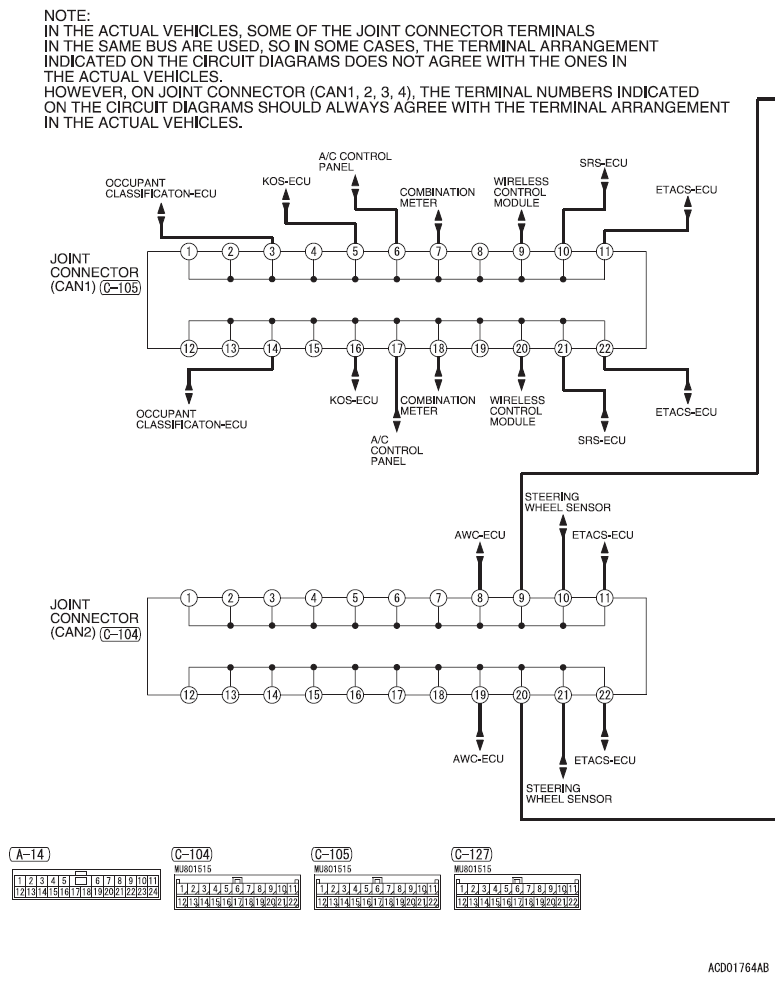

Fig 1: Joint Connector - Circuit Diagram (1 Of 5)

G09620711

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

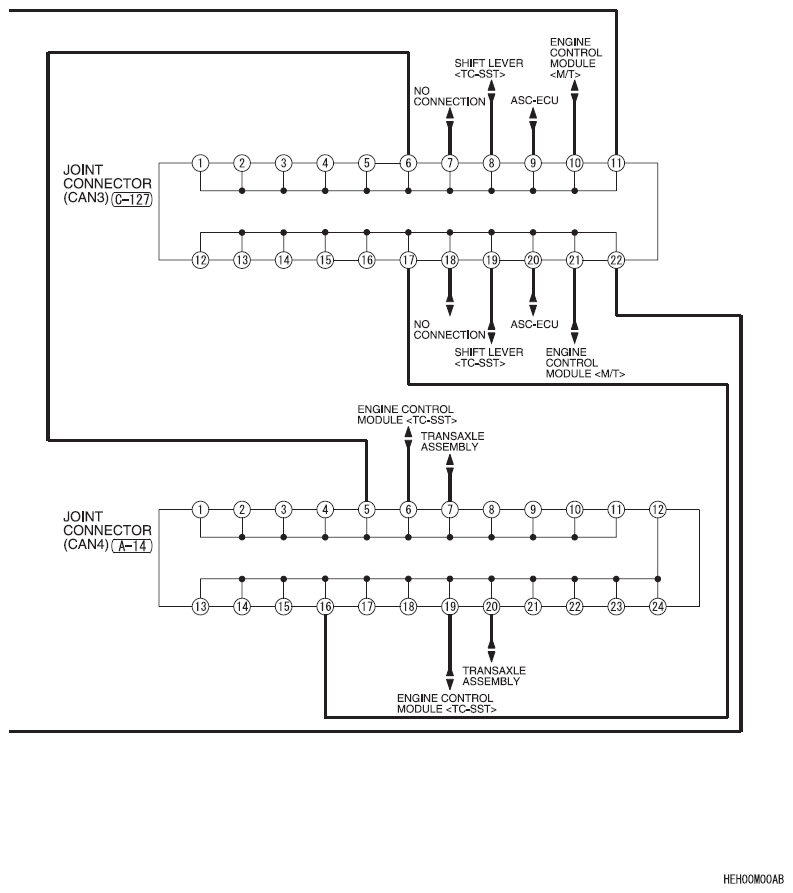

Fig 2: Joint Connector - Circuit Diagram (2 Of 5)

G09620712

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

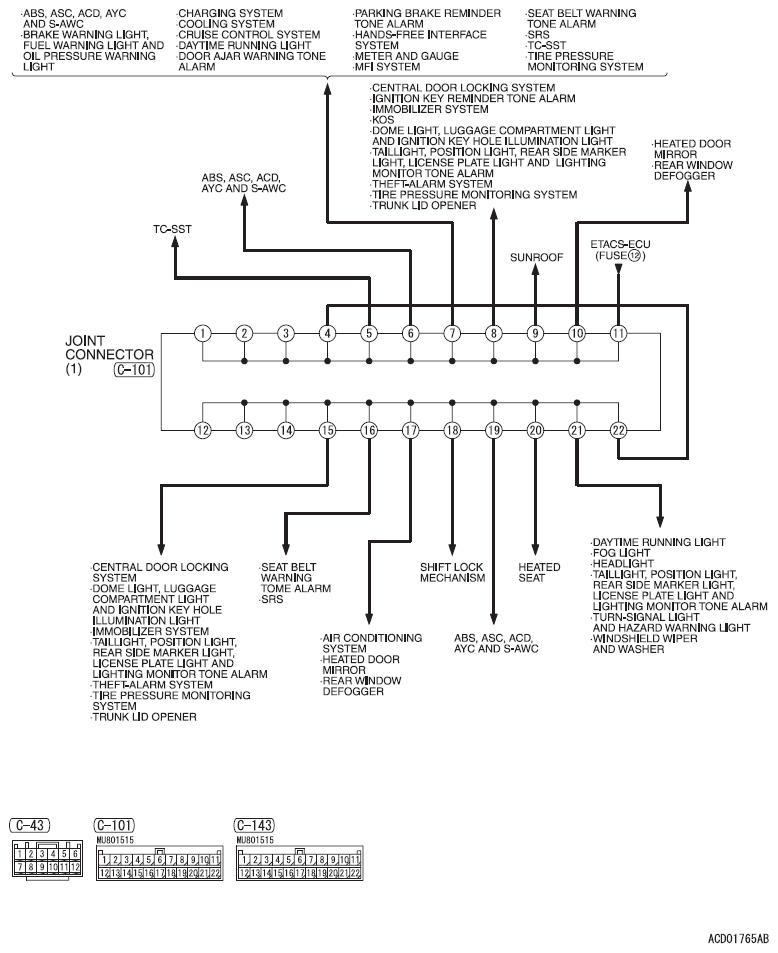

Fig 3: Joint Connector - Circuit Diagram (3 Of 5)

G09620713

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

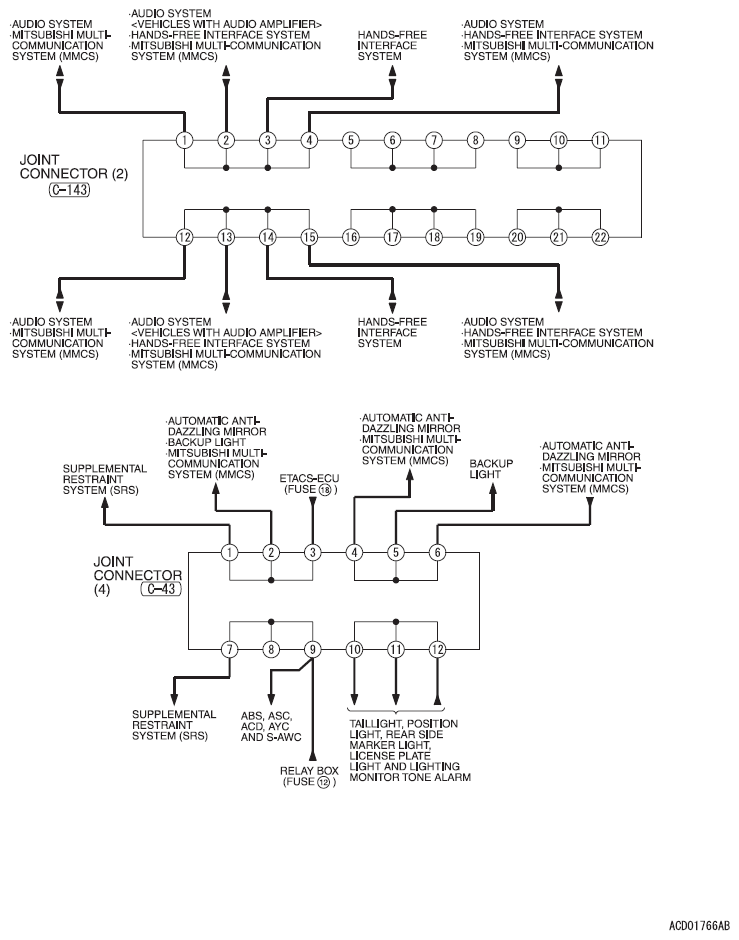

Fig 4: Joint Connector - Circuit Diagram (4 Of 5)

G09620714

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Joint Connector - Circuit Diagram (5 Of 5)

G09620715

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
