Fog Light

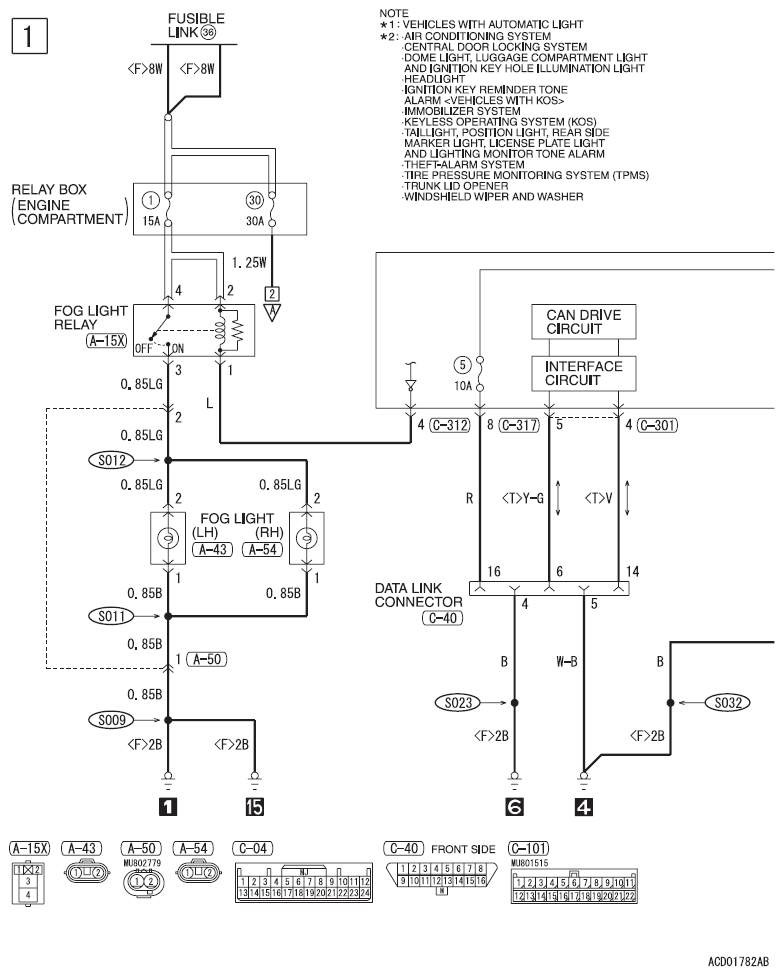

Fig 1: Fog Light - Circuit Diagram (1 Of 2)
G09620803Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

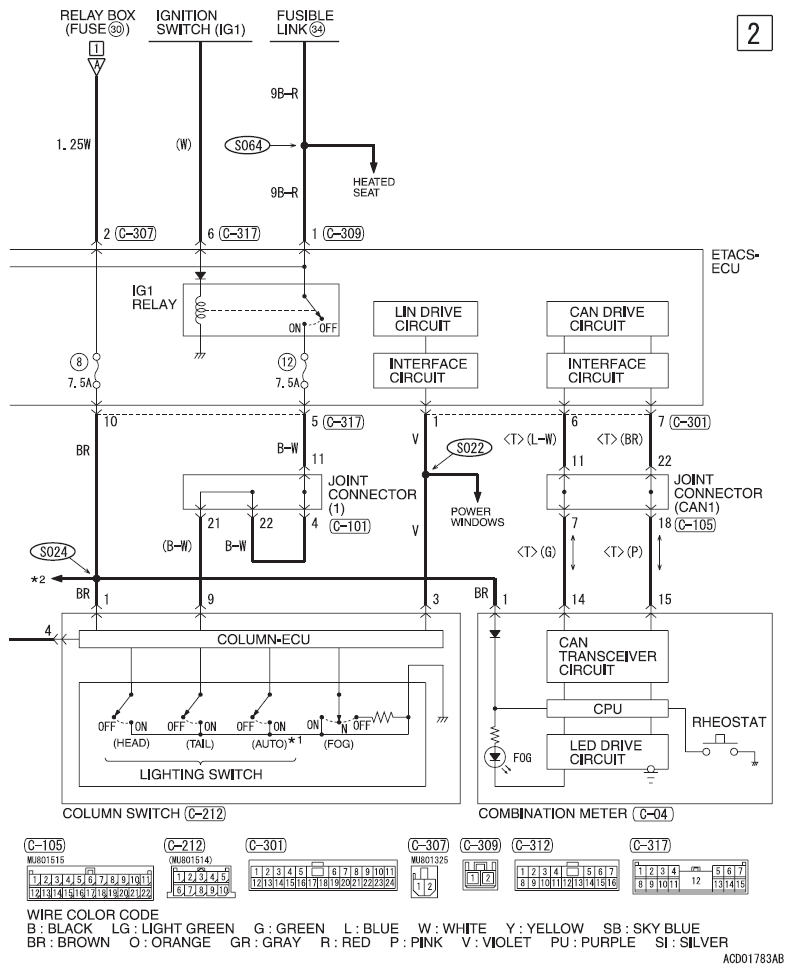

Fig 2: Fog Light - Circuit Diagram (2 Of 2)
G09620804Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
