Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

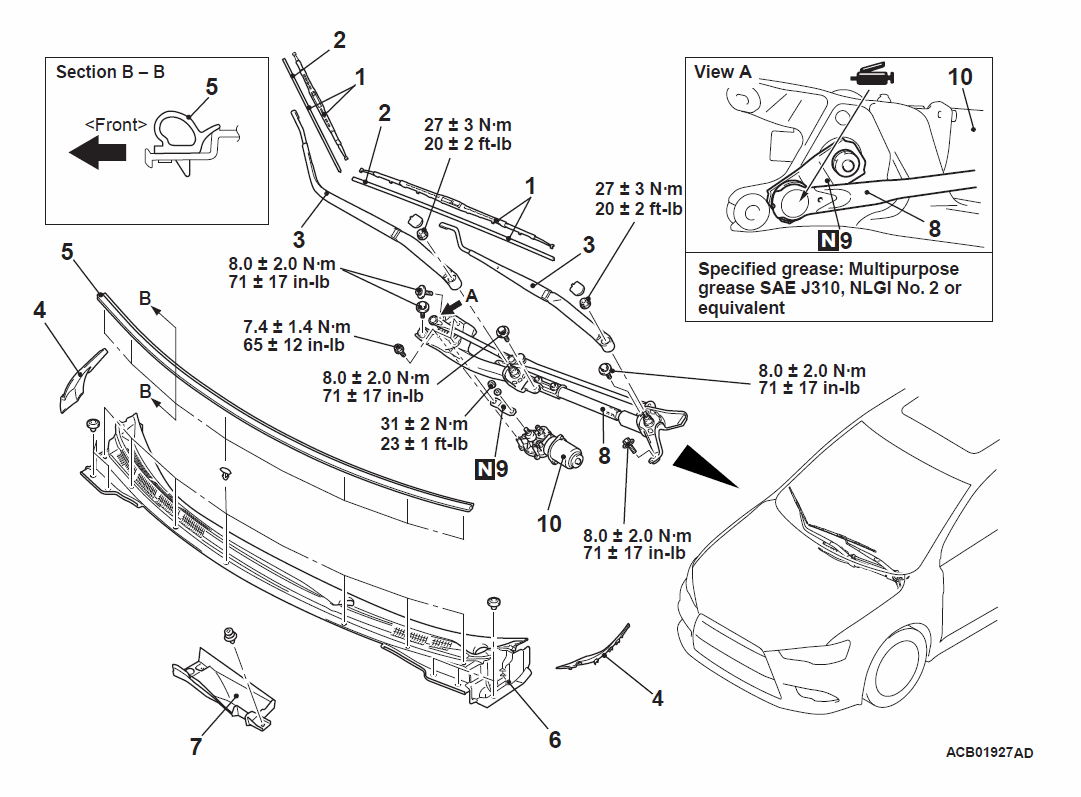

Fig 1: Exploded View Of Windshield Wiper With Torque Specifications (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

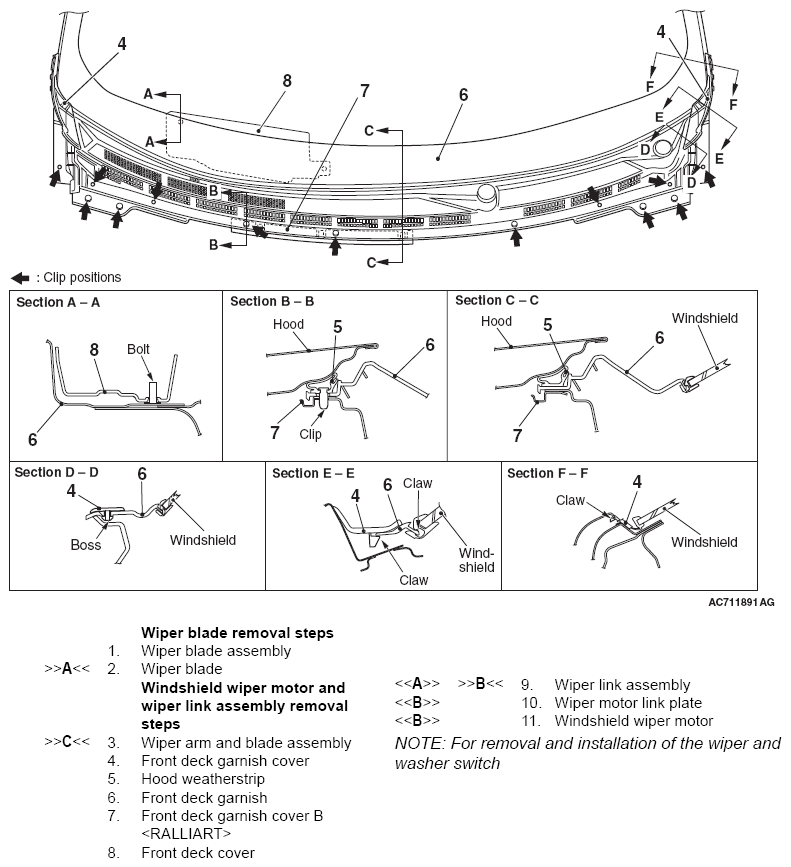

Fig 2: Exploded View Of Windshield Wiper (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For 2016:

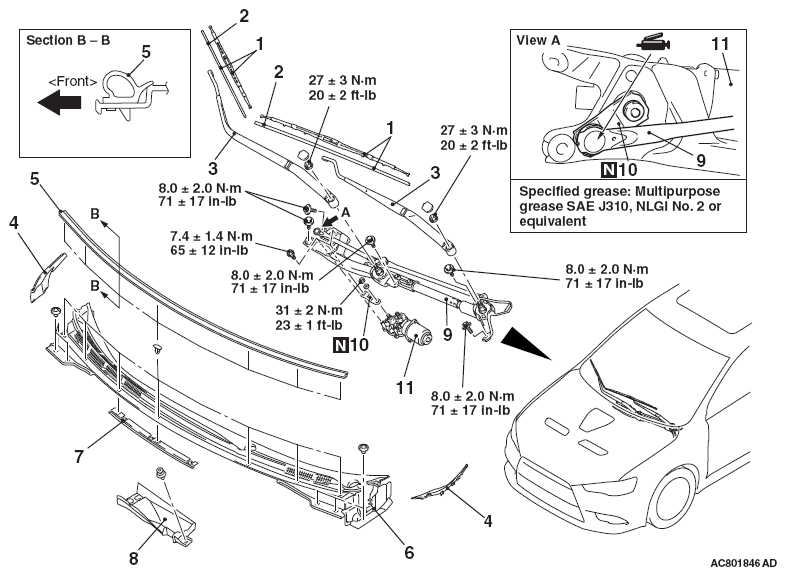

Fig 3: Exploded View Of Windshield Wiper With Torque Specifications (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

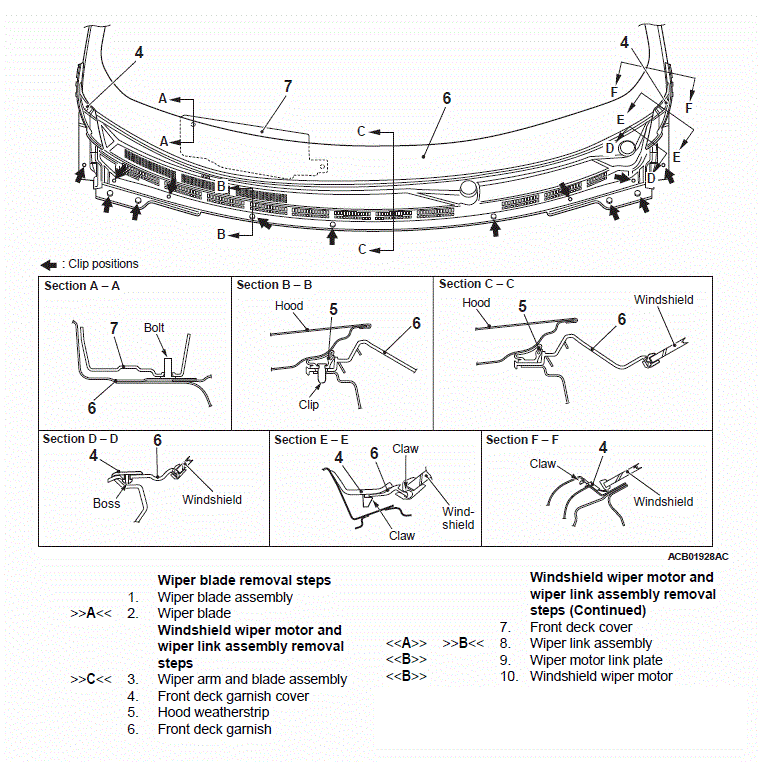

Fig 4: Exploded View Of Windshield Wiper (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: For removal and installation of the wiper and washer switch, refer to COLUMN SWITCH .
