Front Wheel Alignment Check And Adjustment: Toe-In

Standard value: 1 ± 2 mm (0.04 ± 0.08 inch)

1. Adjust the toe-in by undoing the bellows clip and jam nut, and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).
   NOTE: The toe will move out as the left turnbuckle is turned toward the front of the vehicle and the right turnbuckle is turned toward the rear of the vehicle.
2. Install the bellows clip and tighten the jam nut to the specified torque.

   Tightening torque: 52 ± 2 N.m (38 ± 1 ft-lb)

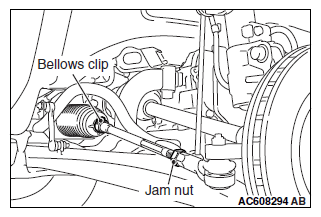

   Fig 1: Identifying Bellows Clip And Jam Nut

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Confirm that the toe-in is at the standard value.
4. Use a turning radius gauge to check that the steering angle is at the standard value (Refer to STEERING ANGLE CHECK < Vehicles without electrical power steering >, or STEERING ANGLE CHECK < Vehicles with electrical power steering >).
