Multivision display

WARNING: This page is about a different variant/trim than selected.

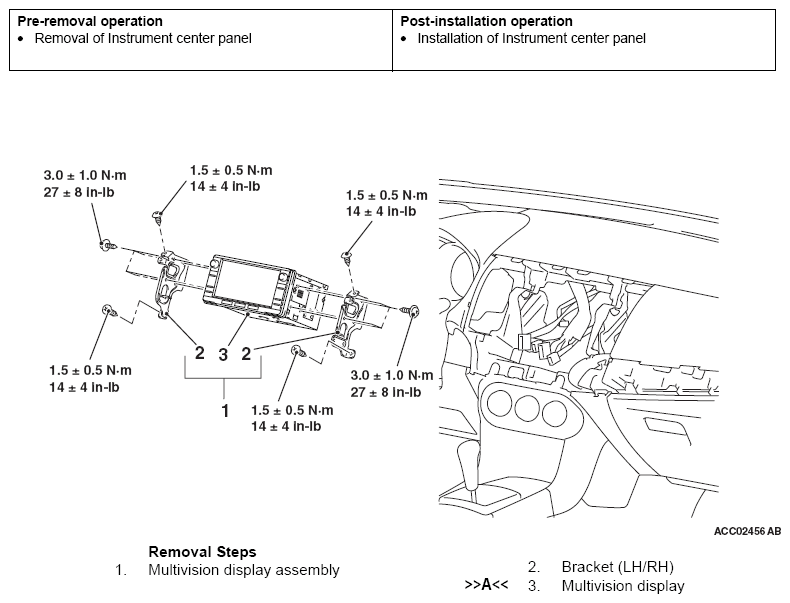

Fig 1: Removing/Installing Multivision Display Components With Torque Specifications
G09630402Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
