System Diagram: (Non-turbo)

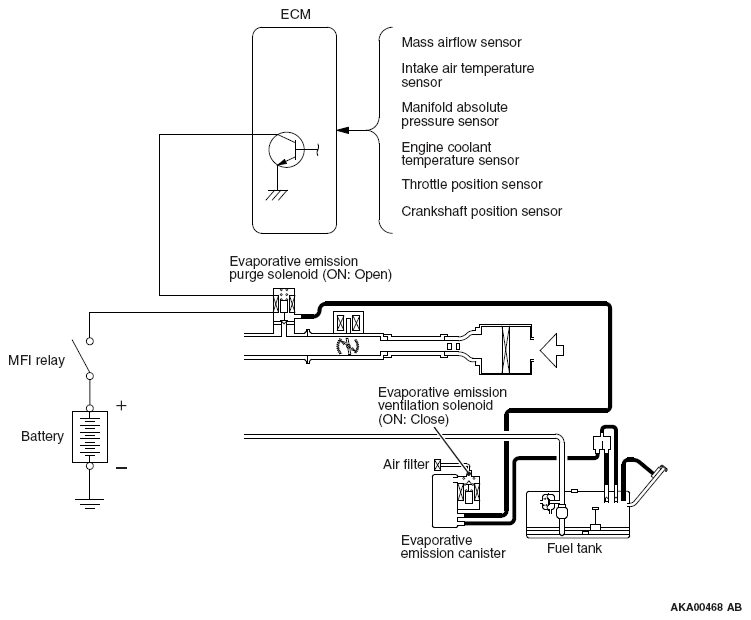

Fig 1: Evaporative Emission Control System Diagram (Non-Turbo)
G07041631Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
