Removal And Installation - 2.0L Engine Turbo: Notes

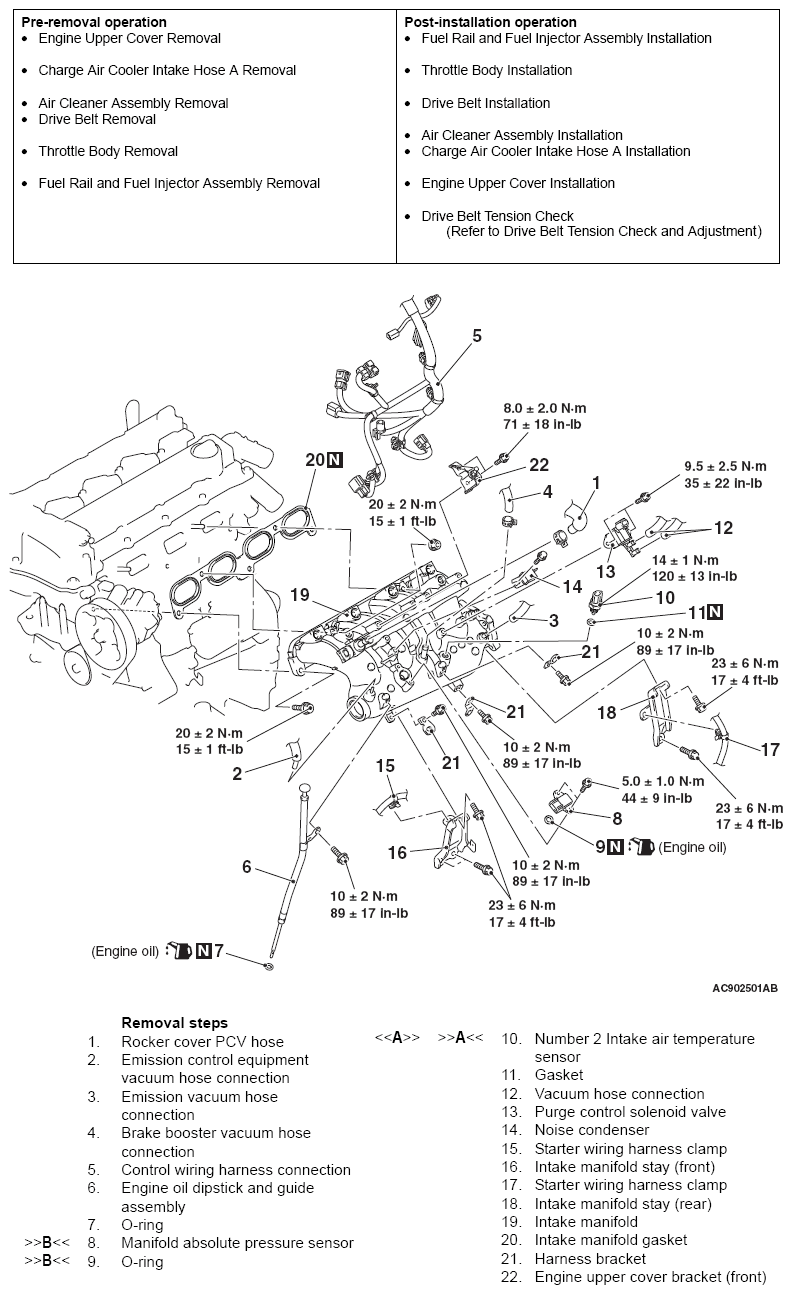

Fig 1: Removing/Installing Intake Manifold Components With Torque Specifications - 2.0L Engine Turbo
G09625319Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
