Removal And Installation: Notes

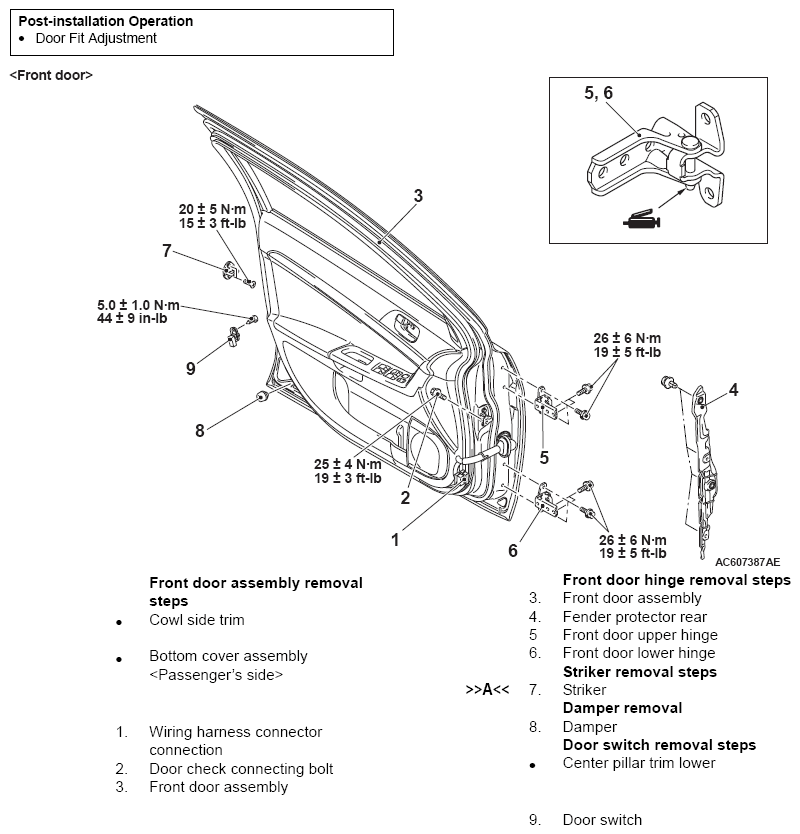

Fig 1: Removing/Installing Front Door Assembly With Torque Specifications
G09651152Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

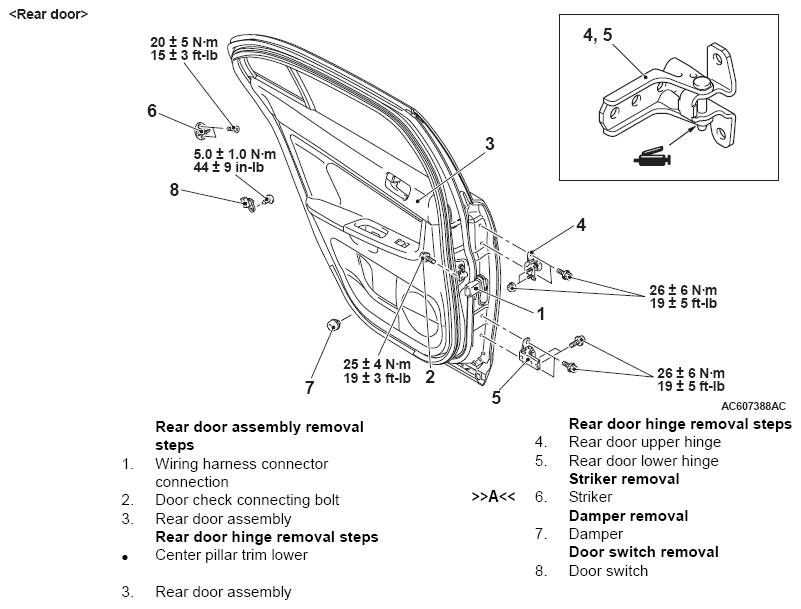

Fig 2: Removing/Installing Rear Door Assembly With Torque Specifications
G09651153Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
