Removal And Installation: Notes

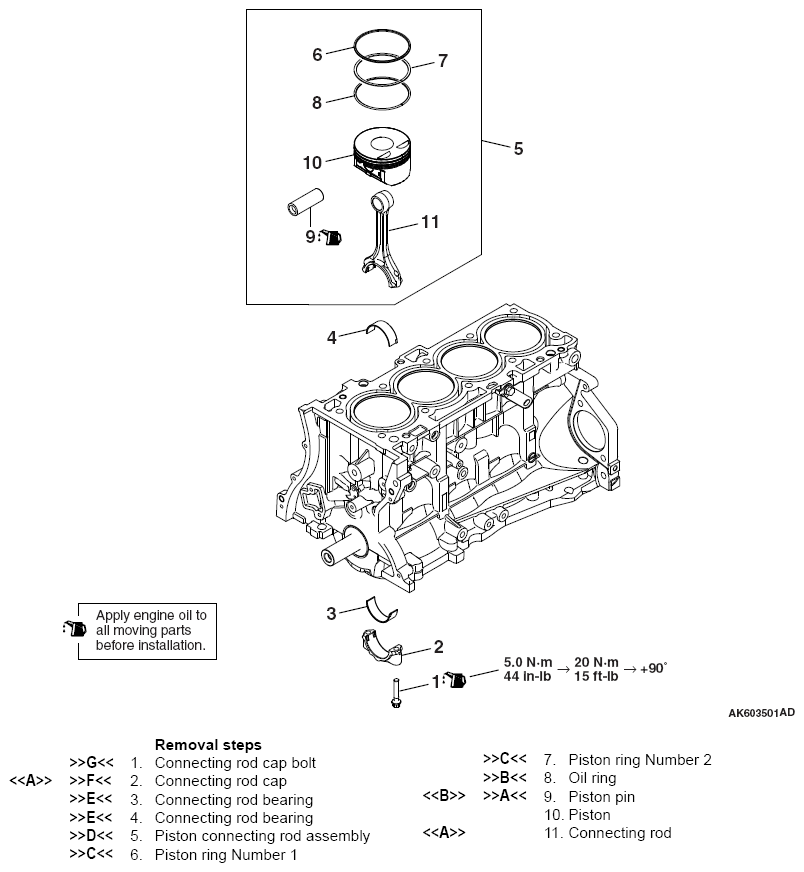

Fig 1: Piston And Components With Torque Specifications
G09619199Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
