Removal And Installation: Notes

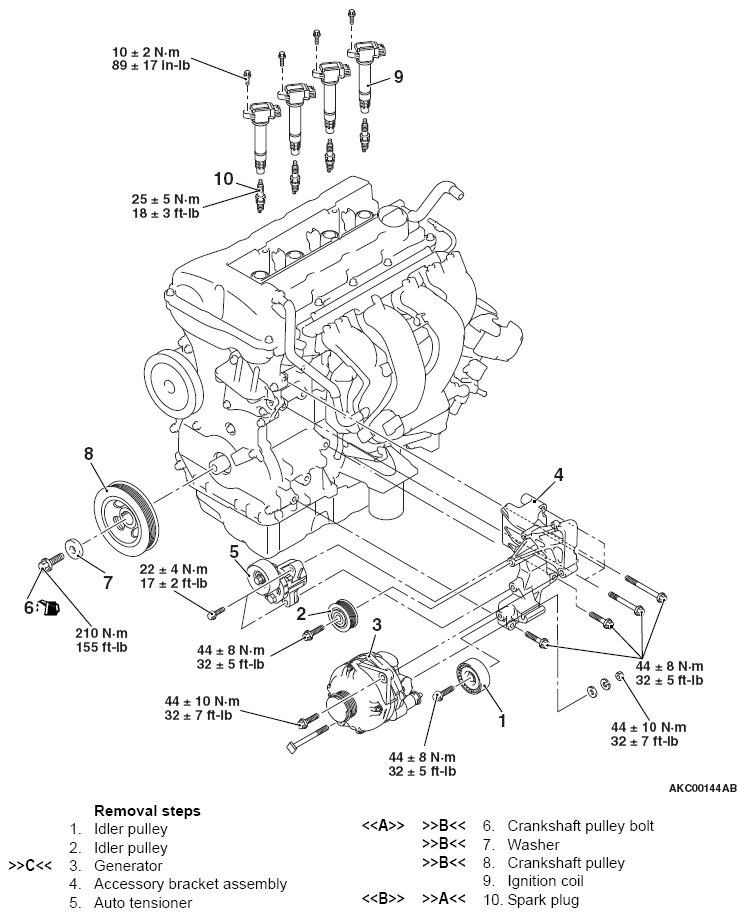

Fig 1: Generator And Ignition System Components With Torque Specifications
G09619089Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
