Removal And Installation - AWD
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Removal And Installation - AWD: Notes
Fig 1: Removing/Installing Fuel Tank With Torque Specification - AWD (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

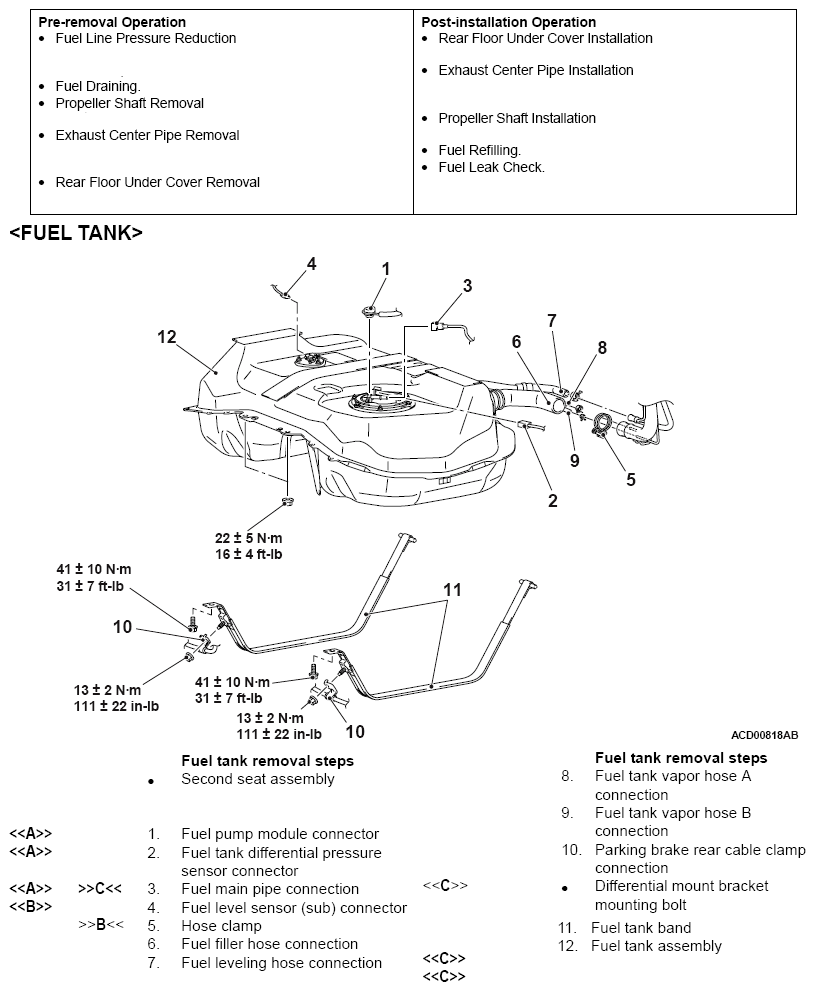

Fig 2: Removing/Installing Fuel Tank With Torque Specification - AWD (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
