Fuel Shut-Off Valve Check

Check that the flapper of the fuel shut-off valve opens and closes as shown in the illustration.

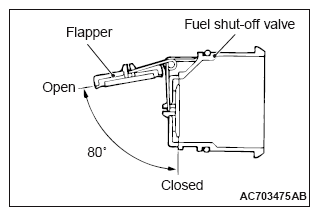

Fig 1: Identifying Fuel Shut-Off Valve Opening Angle
G09664585Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
