Door Latch Assembly Inspection: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Check the door lock actuator operation in the following procedures:

Open a door that is supposed to be checked.
Remove a door trim assembly (Refer to DOOR TRIM ).
Use a screwdriver or the like to slide the door latch claw from unlatch to full-latch position (Set the door latch from door-open to door-closed condition).

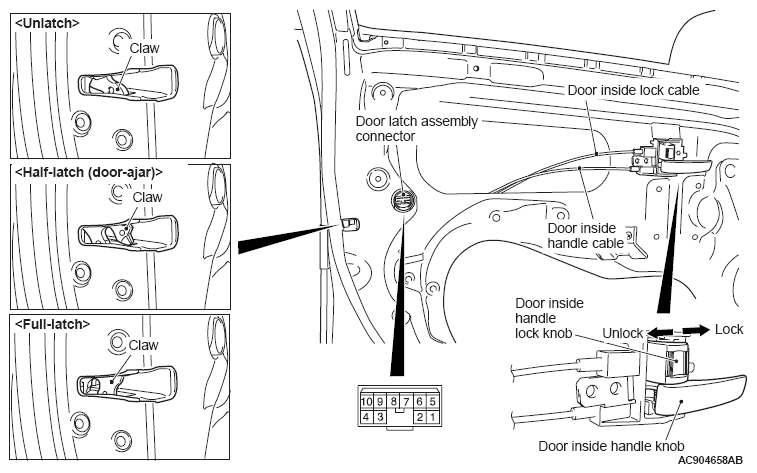

Fig 1: Identifying Door Latch Assembly Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
