DTC 15: Cruise Control Switch System: Notes

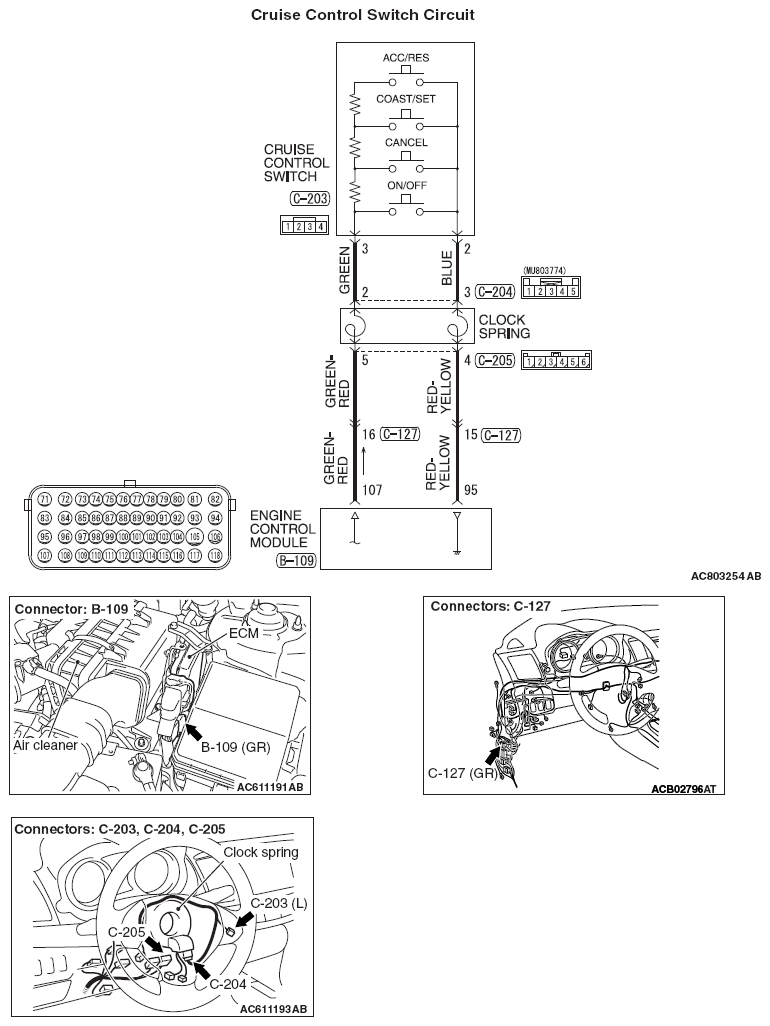

Fig 1: Cruise Control Switch Circuit Diagram
G09625450Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
