Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Do not disassemble or throw the trunk lid gas spring into fire.
  • Punch a hole in the trunk lid gas spring before disposal to release the gas inside.
  • Ensure the trunk lid gas spring piston rod does not come into contact with foreign material.

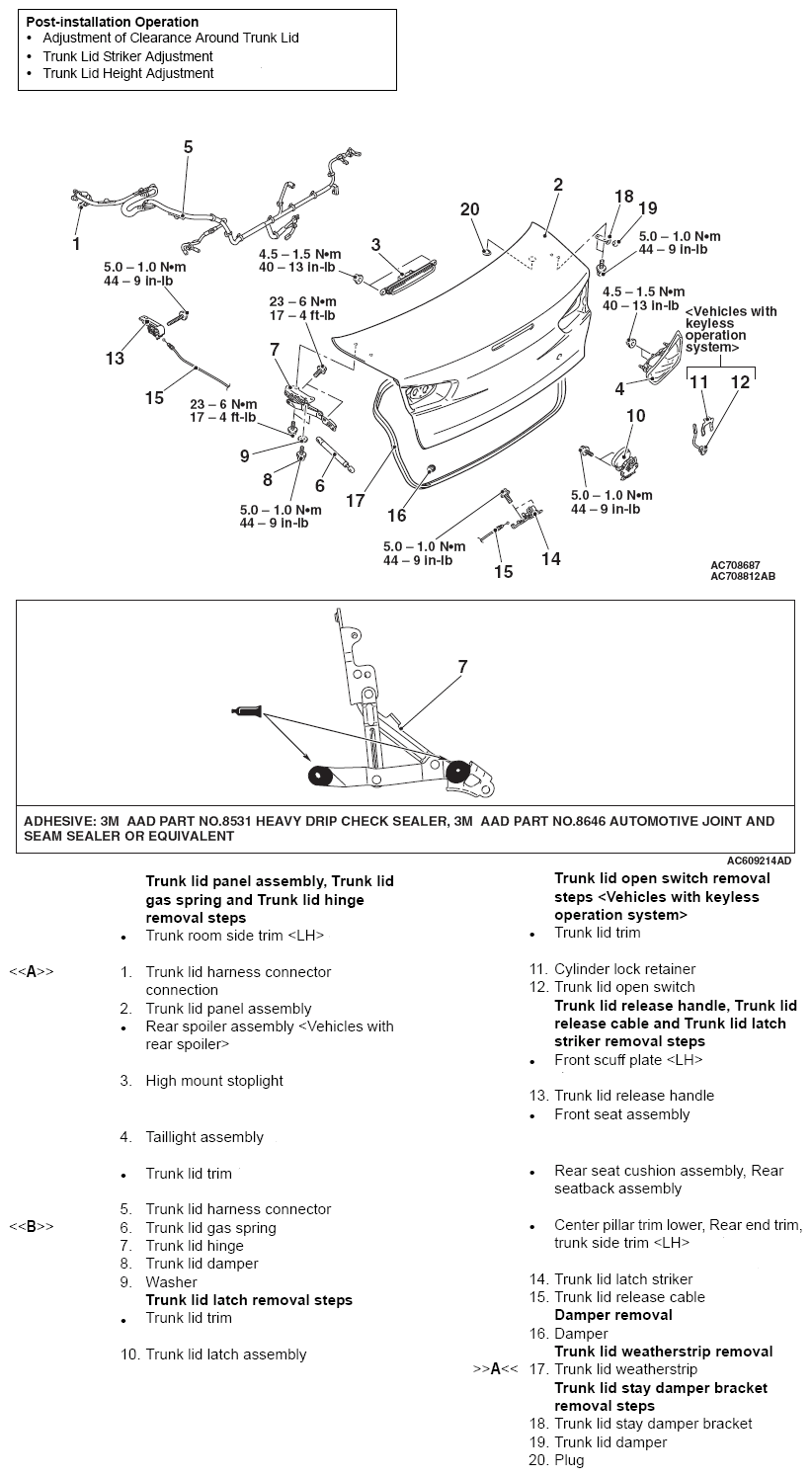

    Fig 1: Removing/Installing Trunk Lid Components With Torque Specifications
    G06677842Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
