Vehicles Without Aluminum Pedal Pad

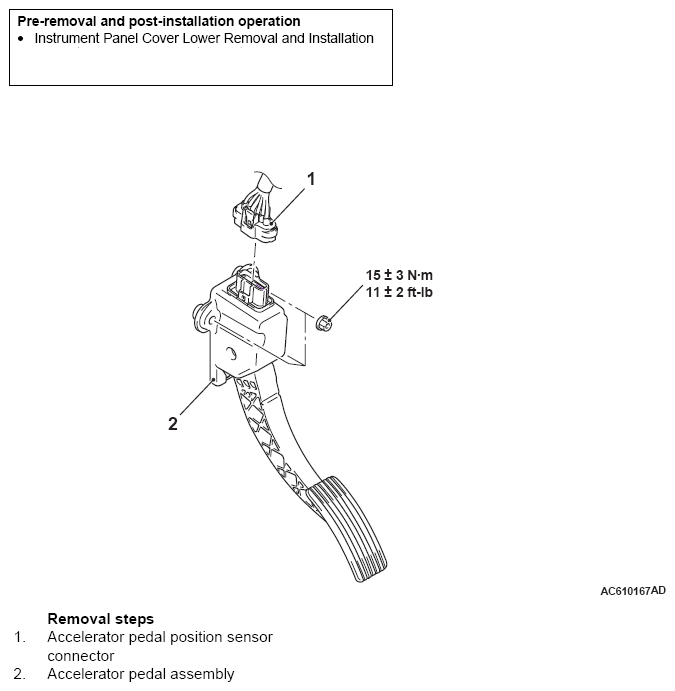

Fig 1: Accelerator Pedal Components With Torque Specification (Vehicles Without Aluminum Pedal Pad)
G08290742Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
