General Information: Schematic

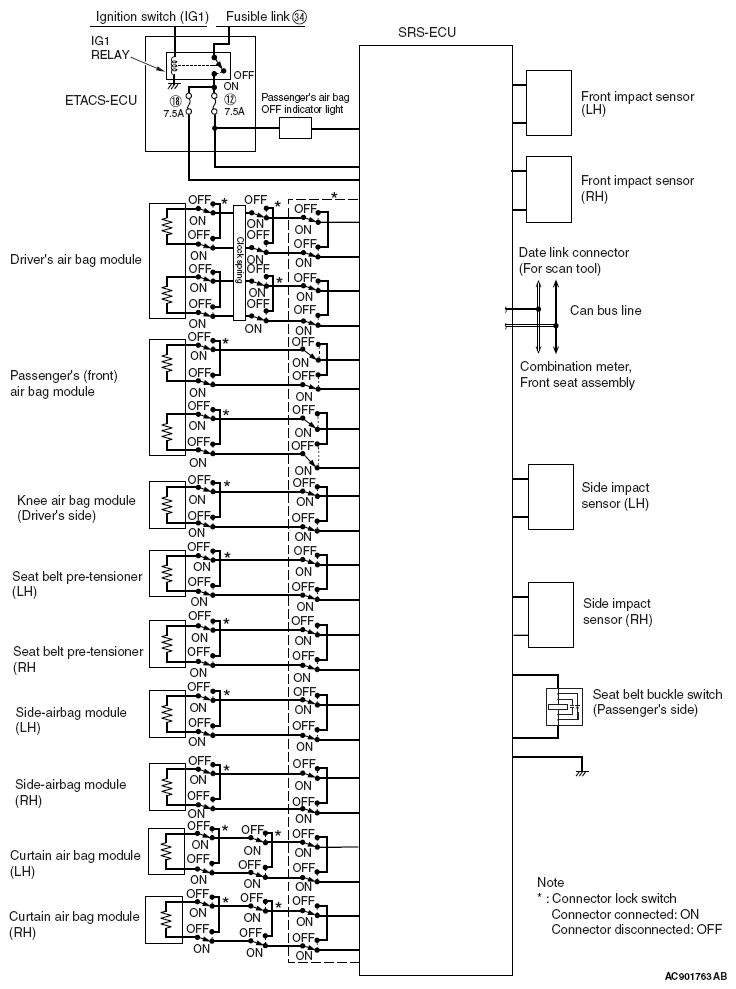

Fig 1: Supplemental Restraint System Schematic Diagram
G06675871Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
