Note On Repair Work: Installation

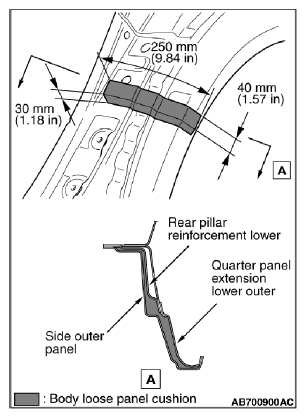

- When installing the new quarter panel outer, machine the body loose panel cushion (MR535301 or MR435765) for replacement as shown and apply it to the body side because the sound dampening foam material cannot be filled into the rear pillar.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- When installing the new quarter panel outer, machine the body loose panel cushion (MR535301 or MR435765) for replacement as shown and apply it to the body side because the sound dampening foam material cannot be filled into the wheel arch.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

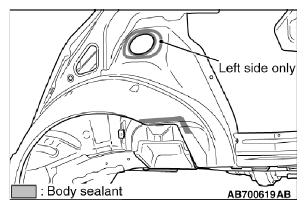

- When installing the new quarter panel outer, apply the body sealant in advance to the areas as shown.
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|

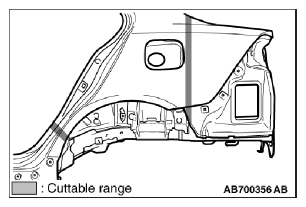

- Partial replacement is possible depending on the range of damage.
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
