Note On Repair Work: Removal

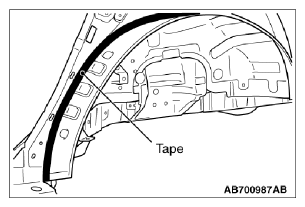

  1. Adhere tape along the wheel arch of the quarter inner panel as shown in the figure of the instructions, use the tape as a guide so about 20 mm (0.79 inch) of the flange remains, then cut and remove.
    G11486765Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
