Front Body

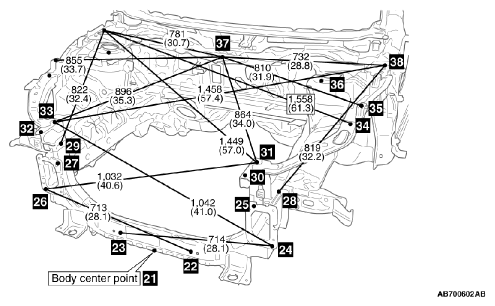

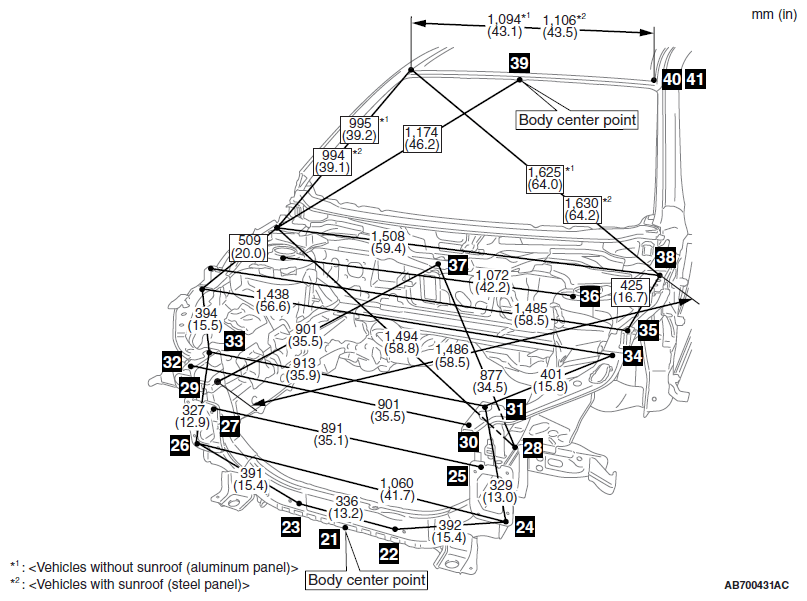

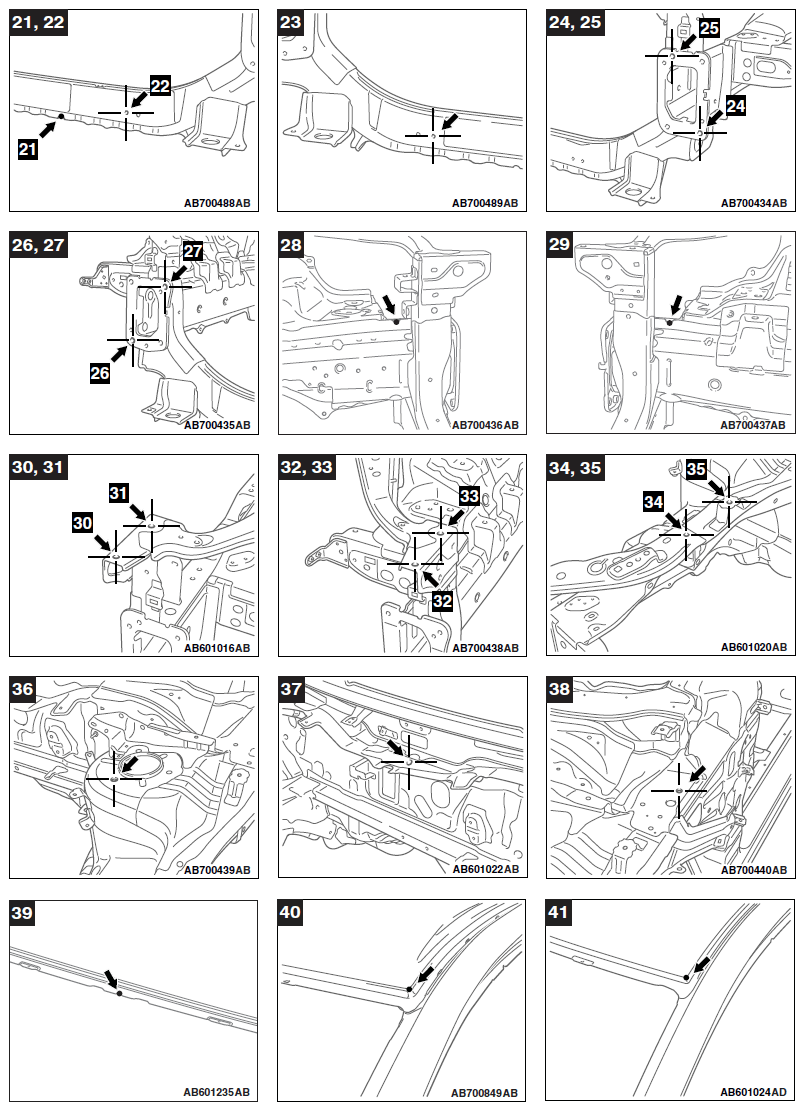

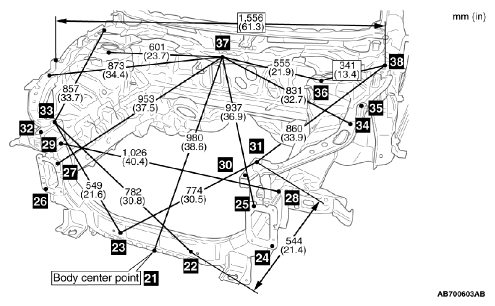

STANDARD MEASUREMENT POINT SPECIFICATION
| No. | Standard measurement point | Hole shape | Size mm (in) |
|---|---|---|---|
| 21 | Center of front end crossmember positioning notch (Body center point) | - | - |
| 22 | Center of front end crossmember dynamic damper mounting hole (left side) | Round | 9 (0.35) |
| 23 | Center of front end crossmember dynamic damper mounting hole (right side) | Round | 9 (0.35) |
| 24 | Center of front bumper reinforcement mounting hole (left lower) | Round | 9 (0.35) |
| 25 | Center of front bumper reinforcement mounting hole (left upper) | Round | 9 (0.35) |
| 26 | Center of front bumper reinforcement mounting hole (right lower) | Round | 9 (0.35) |
| 27 | Center of front bumper reinforcement mounting hole (right upper) | Round | 9 (0.35) |
| 28 | Center of front sidemember inner positioning notch (left side) | - | - |
| 29 | Center of front sidemember inner positioning notch (right side) | - | - |
| 30 | Center of headlight support panel upper mounting hole (left front) | Round | 6.6 (0.26) |
| 31 | Center of headlight support panel upper mounting hole (left rear) | Round | 6.6 (0.26) |
| 32 | Center of headlight support panel upper mounting hole (right front) | Round | 6.6 (0.26) |
| 33 | Center of headlight support panel upper mounting hole (right rear) | Round | 6.6 (0.26) |
| 34 | Center of front end upper bar side positioning hole | Round | 6 (0.24) |
| 35 | Center of front fender mounting hole | Round | 6.6 (0.26) |
| 36 | Center of front strut mounting hole | Round | 11.5 (0.45) |
| 37 | Center of cowl top panel mounting hole | Round | 6.6 (0.26) |
| 38 | Center of hood hinge mounting hole | Round | 9 (0.35) |
| 39 | Center of roof panel positioning notch (Body center point) | - | - |
| 40 | Corner of roof panel <Vehicles without sunroof (aluminum panel)> | - | - |
| 41 | Corner of roof panel <Vehicles with sunroof (steel panel)> | - | - |
