Disassembly And Assembly: Notes

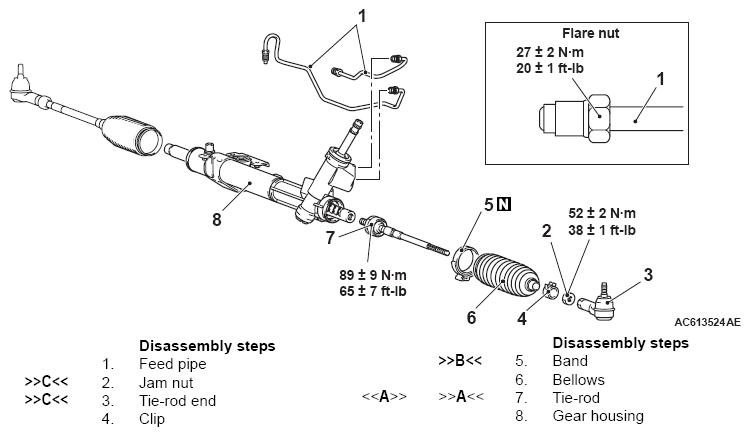

Fig 1: Exploded View Of Power Steering Gear Linkage With Torque Specifications
G08294219Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
