Home >> Mitsubishi >> 2012 >> i-MiEV ES >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Seat Assembly >> Rear Seat Assembly >> Disassembly And Reassembly >> Notes
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Disassembly And Reassembly: Notes

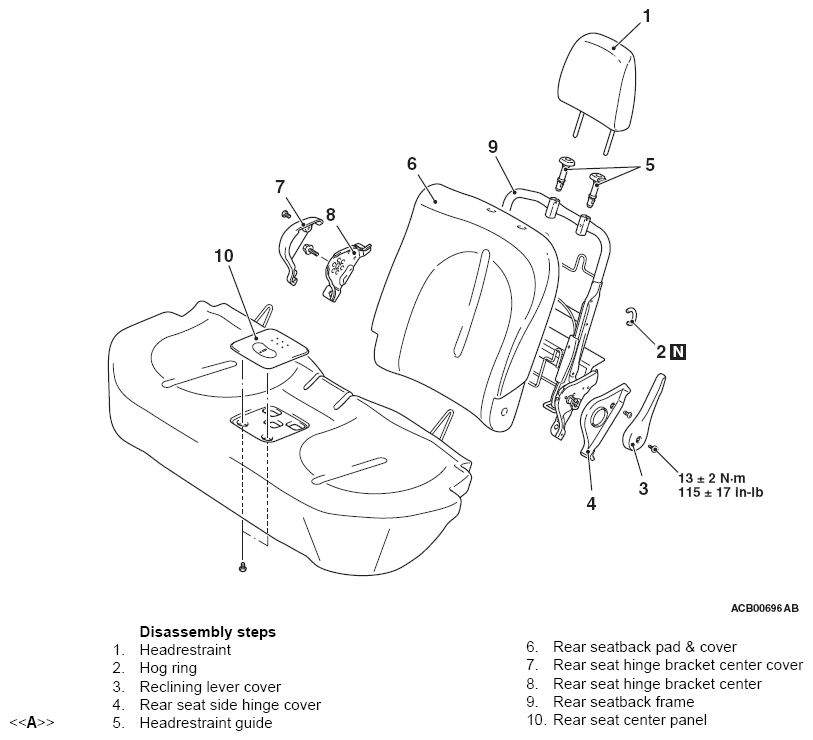

Fig 1: Disassembling Order Of Seat Assembly With Torque Specification
G08303455Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
