Removal And Installation < 2.4L Engine >

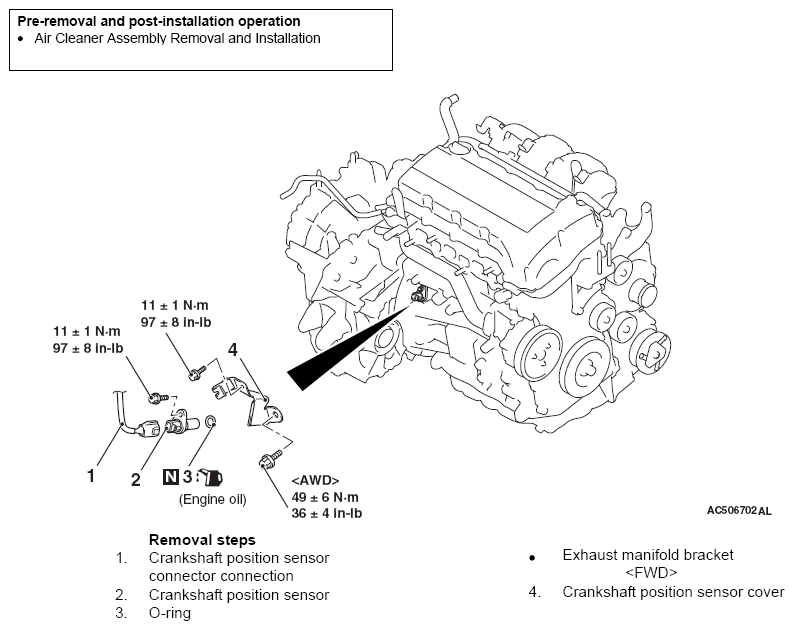

Fig 1: Crankshaft Position Sensor Removal And Installation - 2.4L Engine With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
