DTC U0231: Lighting control sensor LIN timeout < Vehicles with auto light function >: Notes

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

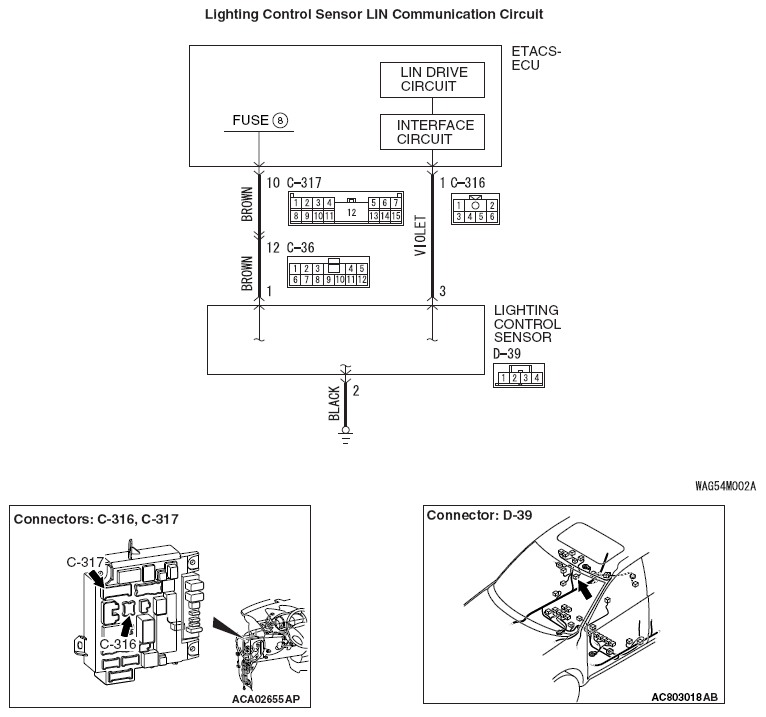

Fig 1: Lighting Control Sensor LIN Communication Circuit Diagram
G07044723Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
