Removal And Installation - 2.0L Engine Turbo: Notes

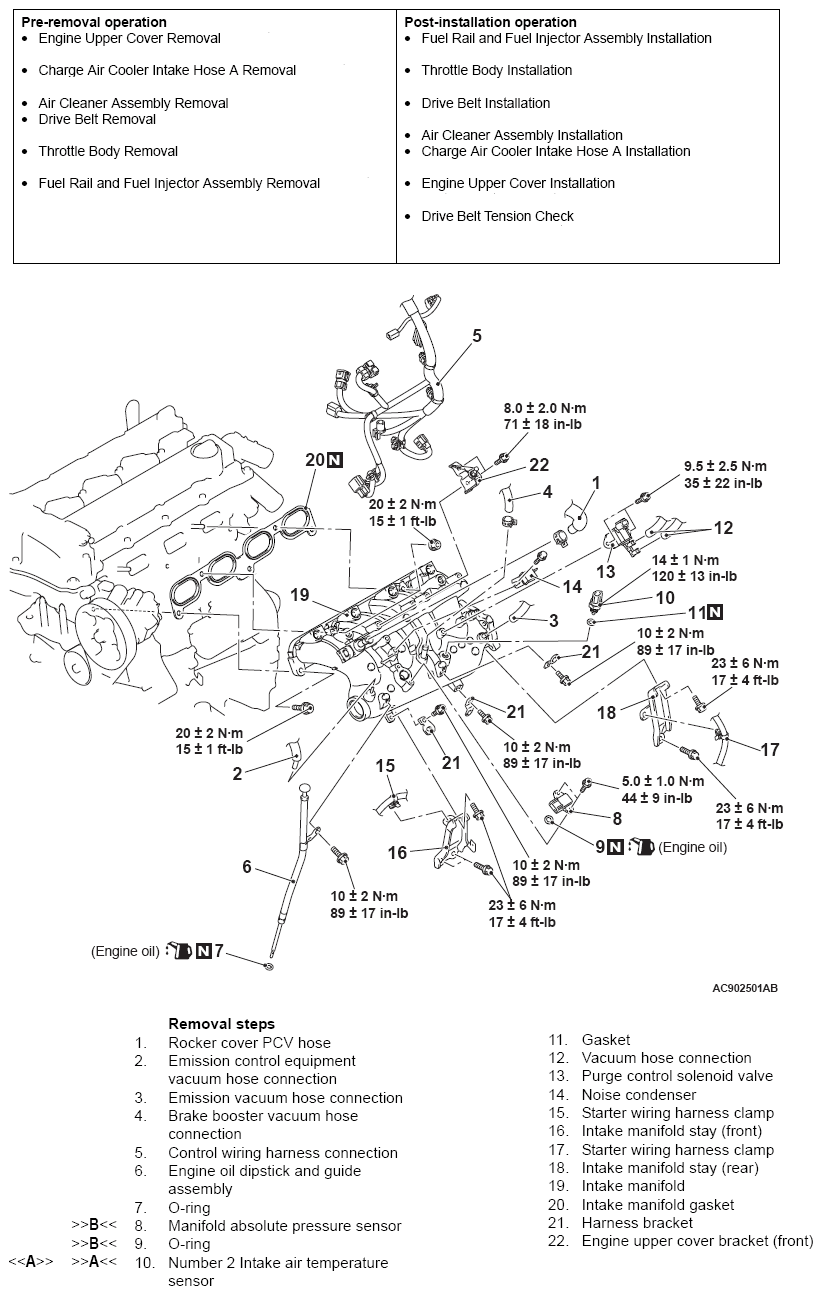

Fig 1: Intake Manifold Components With Torque Specifications (2.0L Engine Turbo)
G08290628Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
