Removal And Installation - 2.0L Engine Non-Turbo, 2.4L Engine: Notes

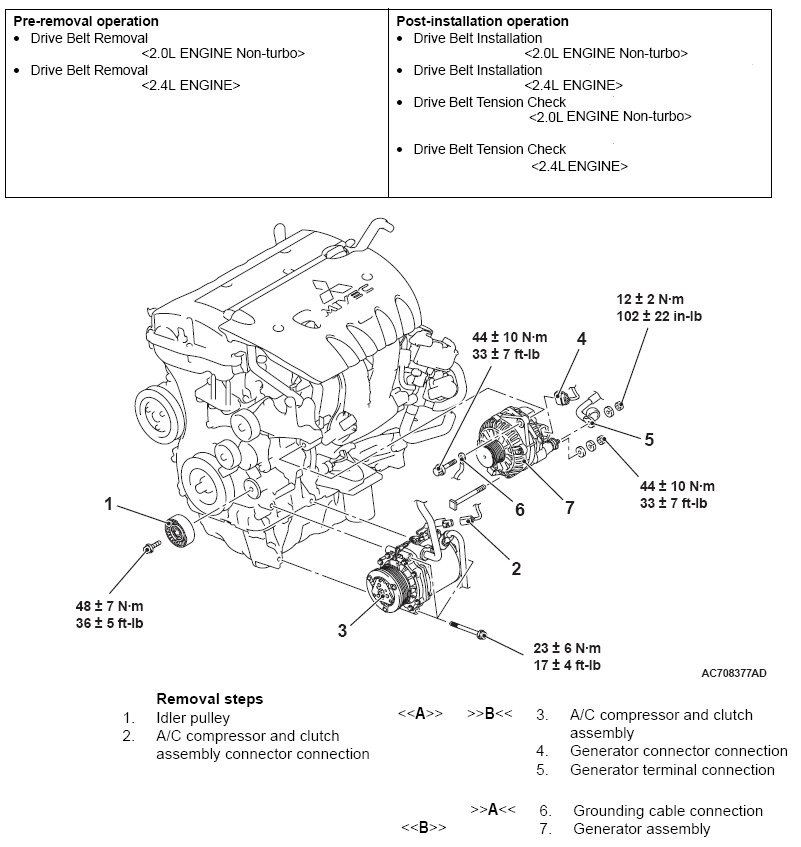

Fig 1: Generator Assembly Components With Torque Specifications
G08290667Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
