Disassembly And Assembly: Notes

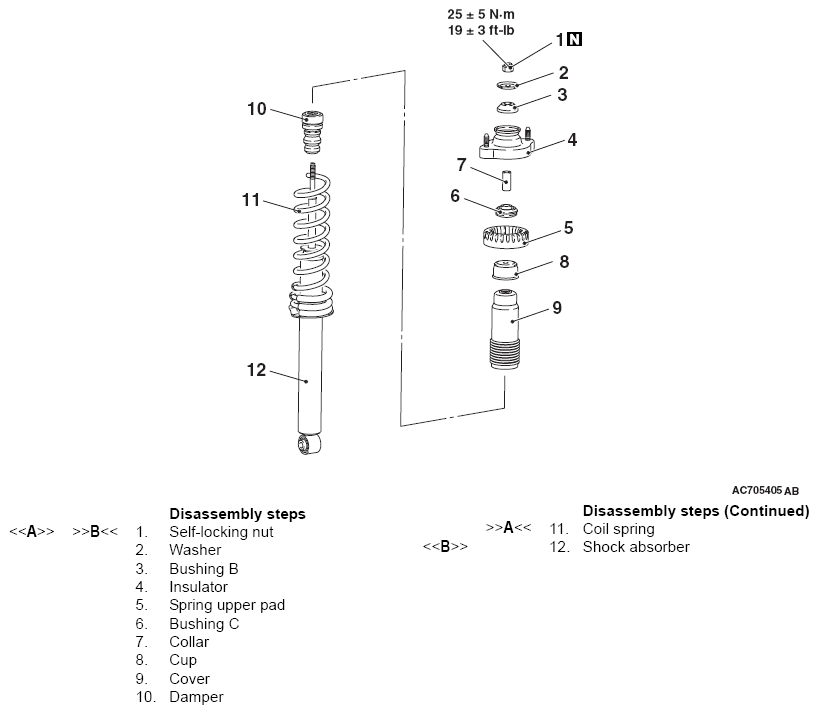

Fig 1: Exploded View Of Shock Absorber Assembly With Torque Specifications
G06677628Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
