Removal And Installation

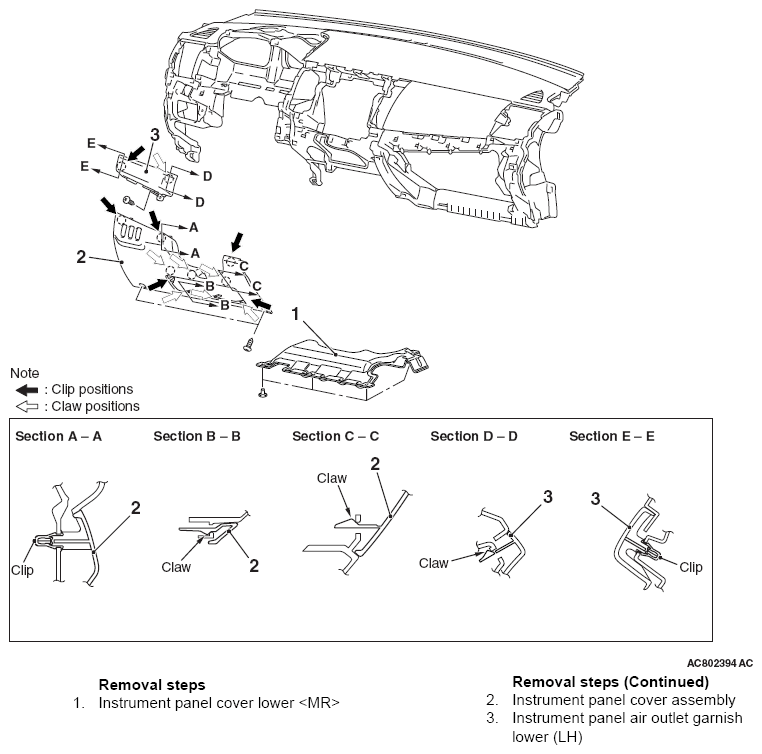

Fig 1: Removal & Installation Of Instrument Lower Panel
G06677975Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
