Removal And Installation

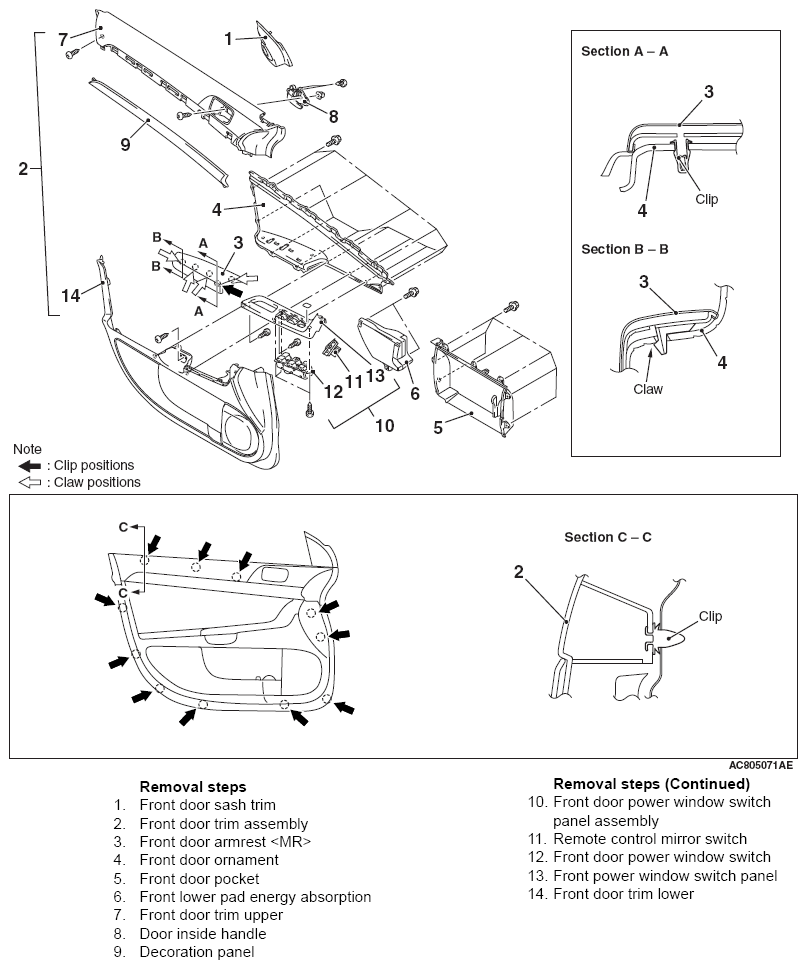

Fig 1: Removal & Installation Of Front Door Trim
G06677984Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

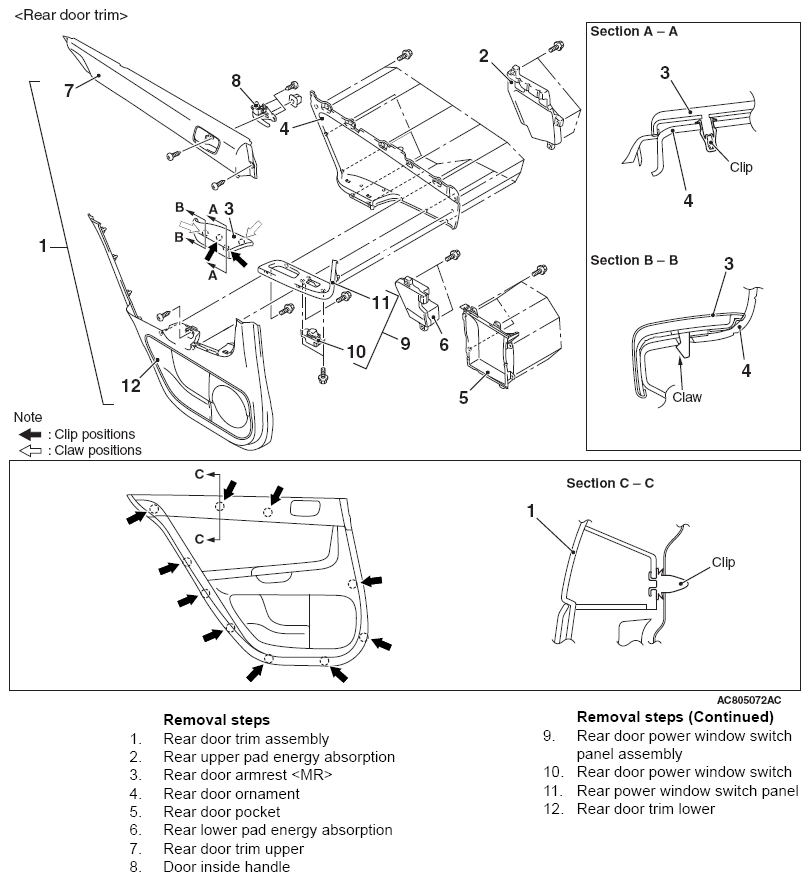

Fig 2: Removal & Installation Of Rear Door Trim
G06677985Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
