Lancer Evolution MR
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Circuit Diagrams - Lancer Evolution
>>
Spare Connector (For Navigation System)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Spare Connector (For Navigation System)

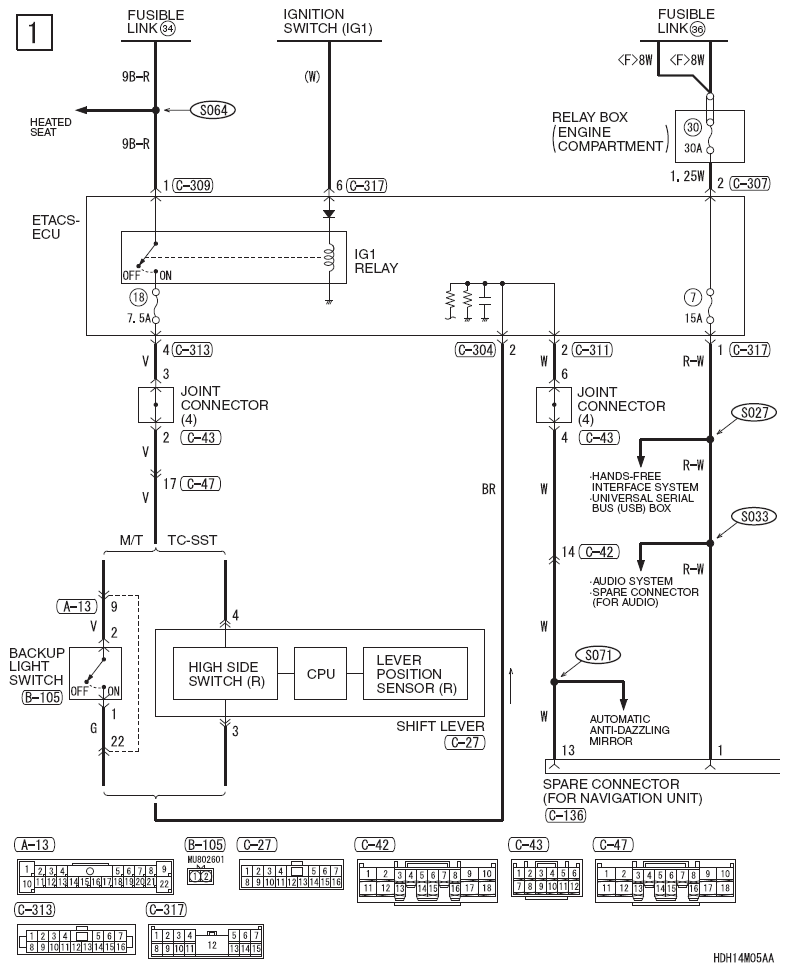

Fig 1: Spare Connector Circuit Diagram - For Navigation System (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

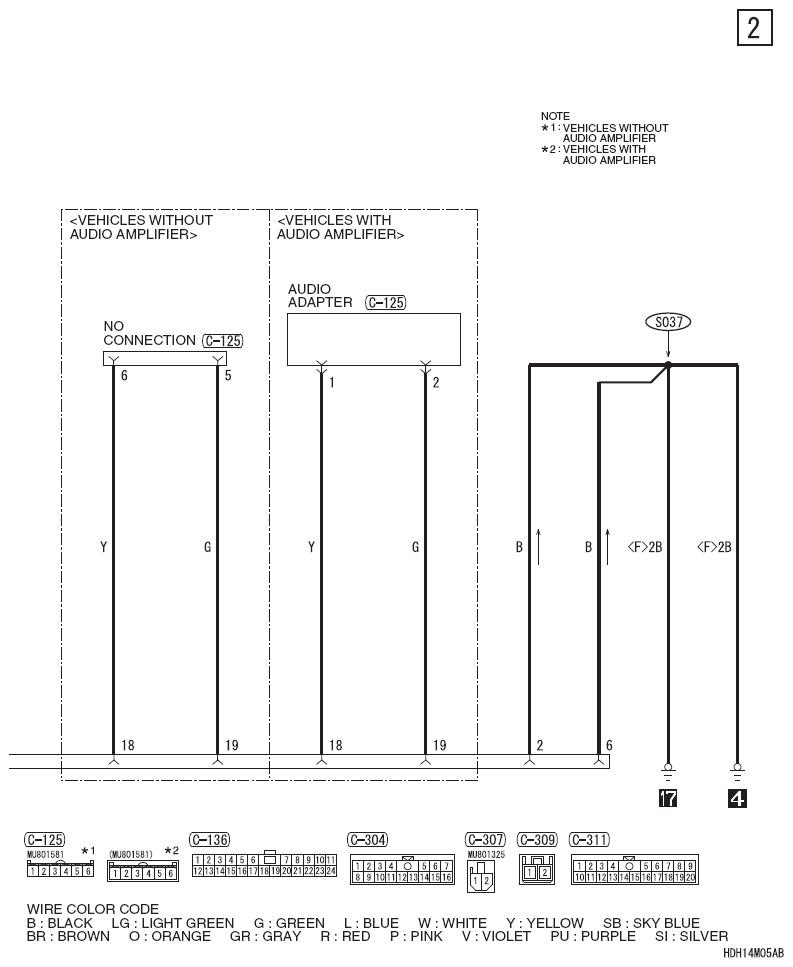

Fig 2: Spare Connector Circuit Diagram - For Navigation System (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
