Power Windows

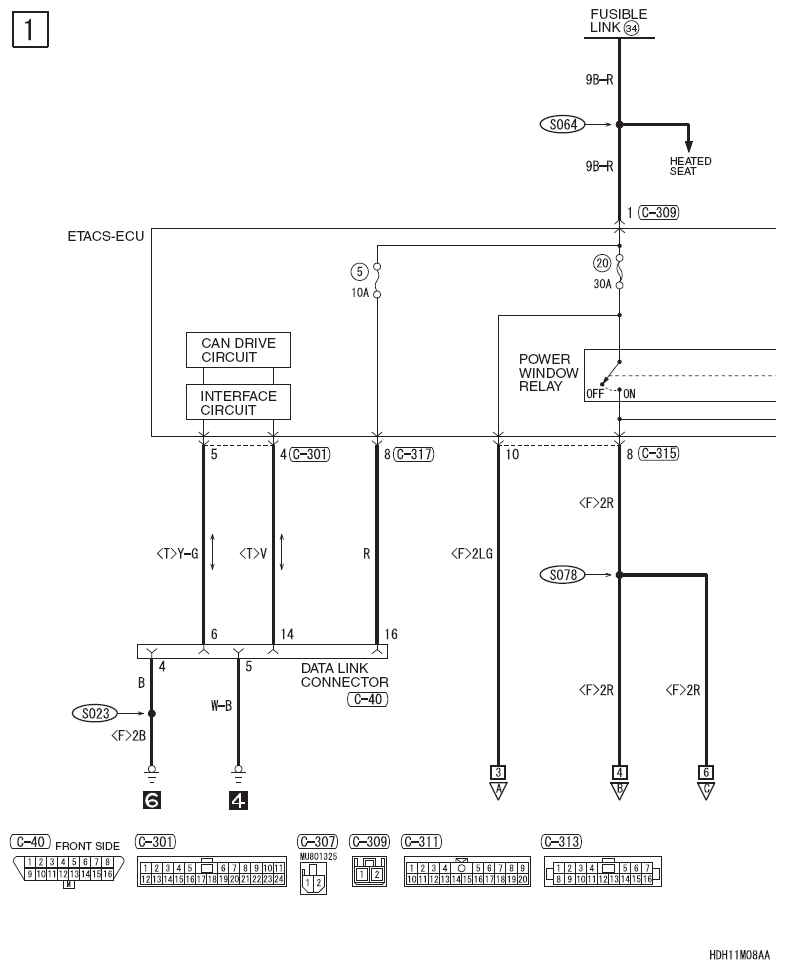

Fig 1: Power Windows Circuit Diagram (1 Of 6)

G08304815

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

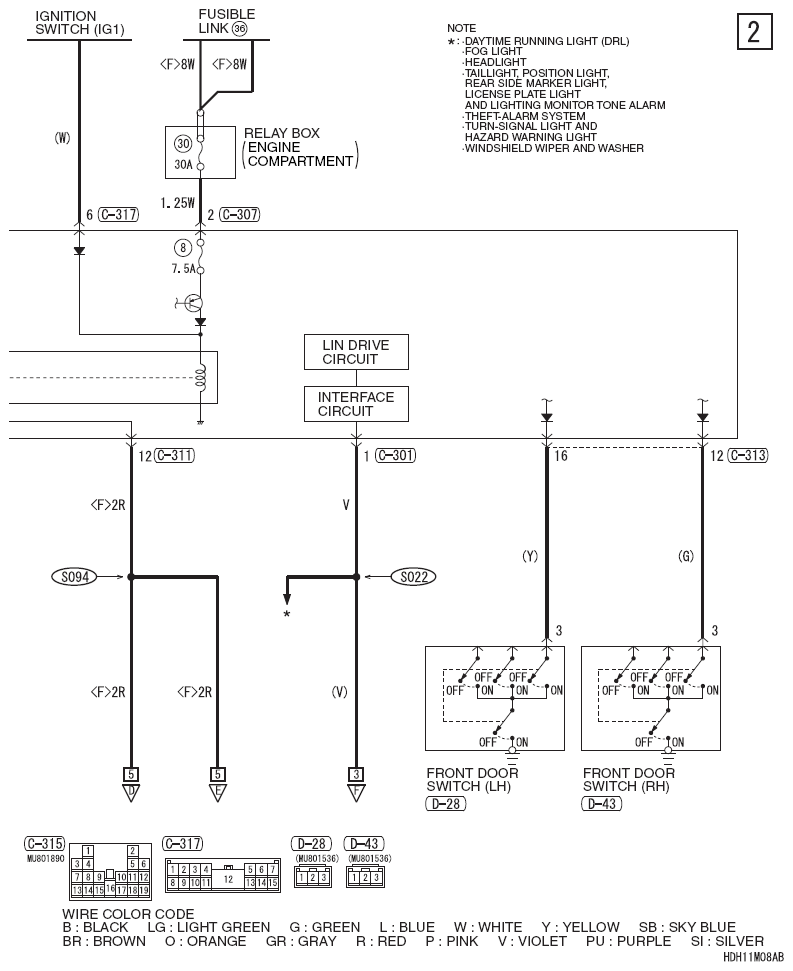

Fig 2: Power Windows Circuit Diagram (2 Of 6)

G08304816

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

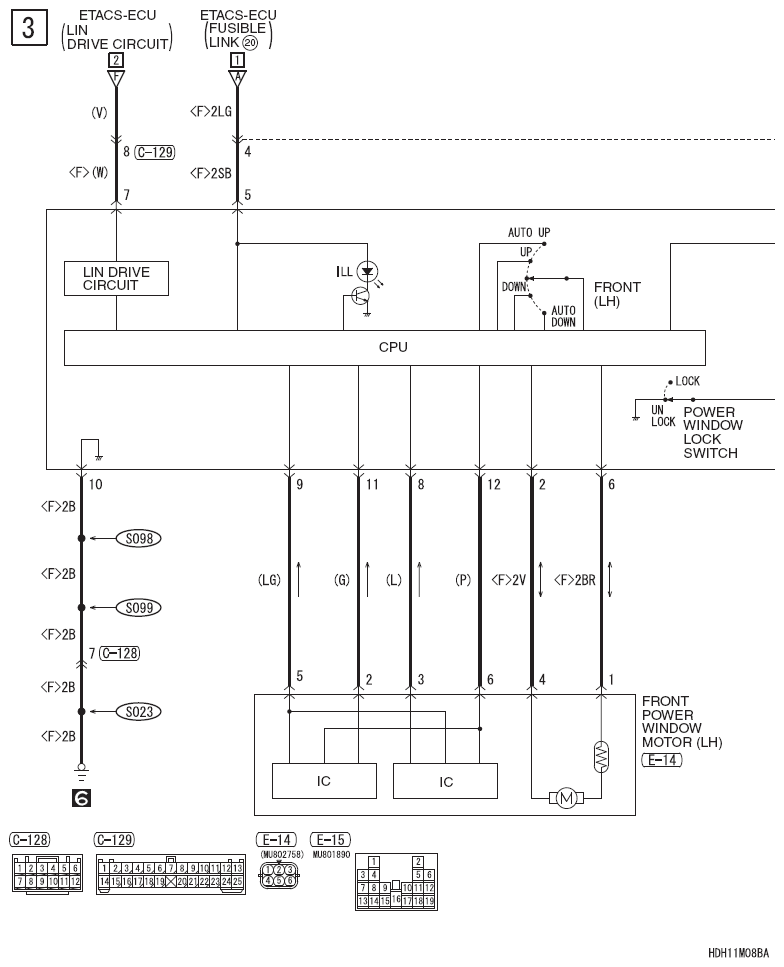

Fig 3: Power Windows Circuit Diagram (3 Of 6)

G08304817

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

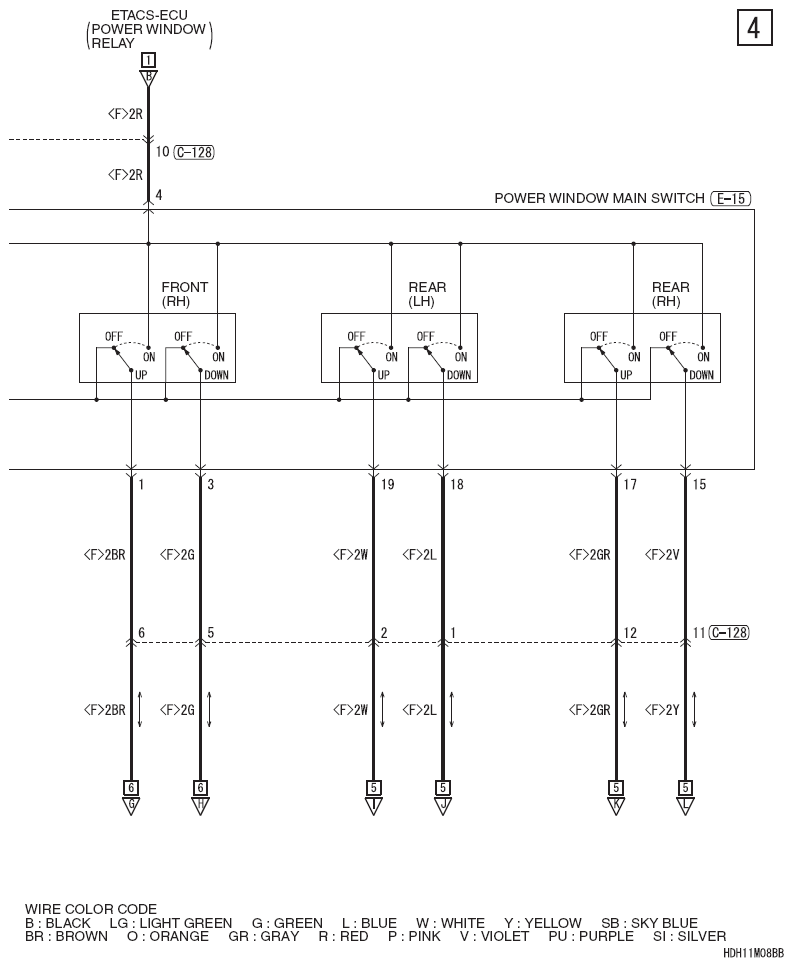

Fig 4: Power Windows Circuit Diagram (4 Of 6)

G08304818

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

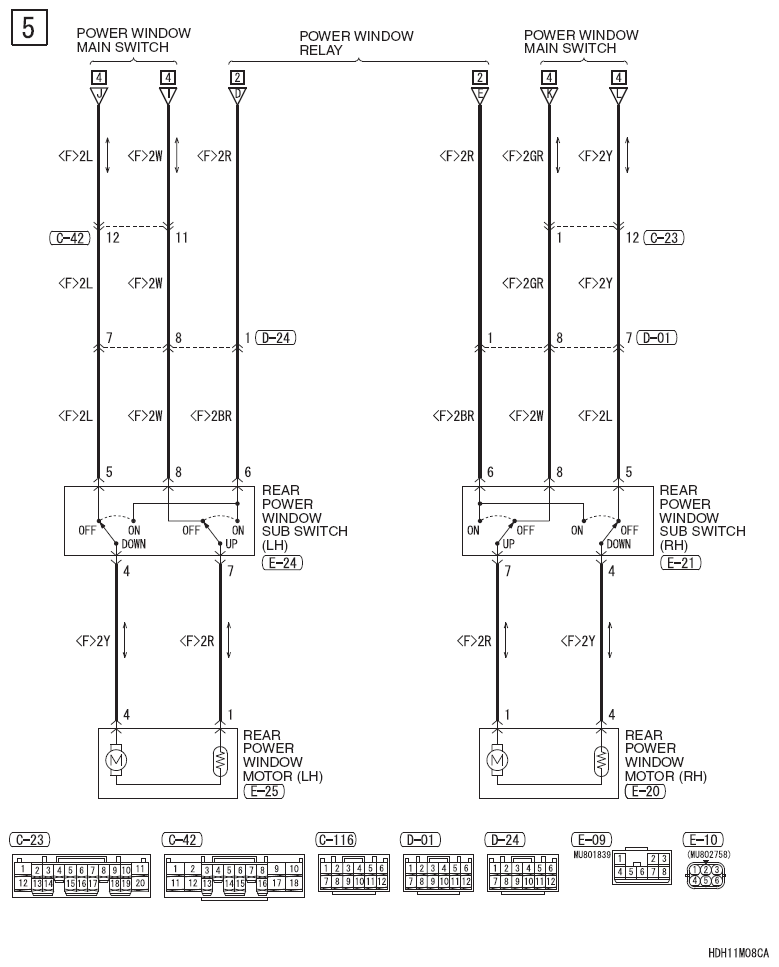

Fig 5: Power Windows Circuit Diagram (5 Of 6)

G08304819

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

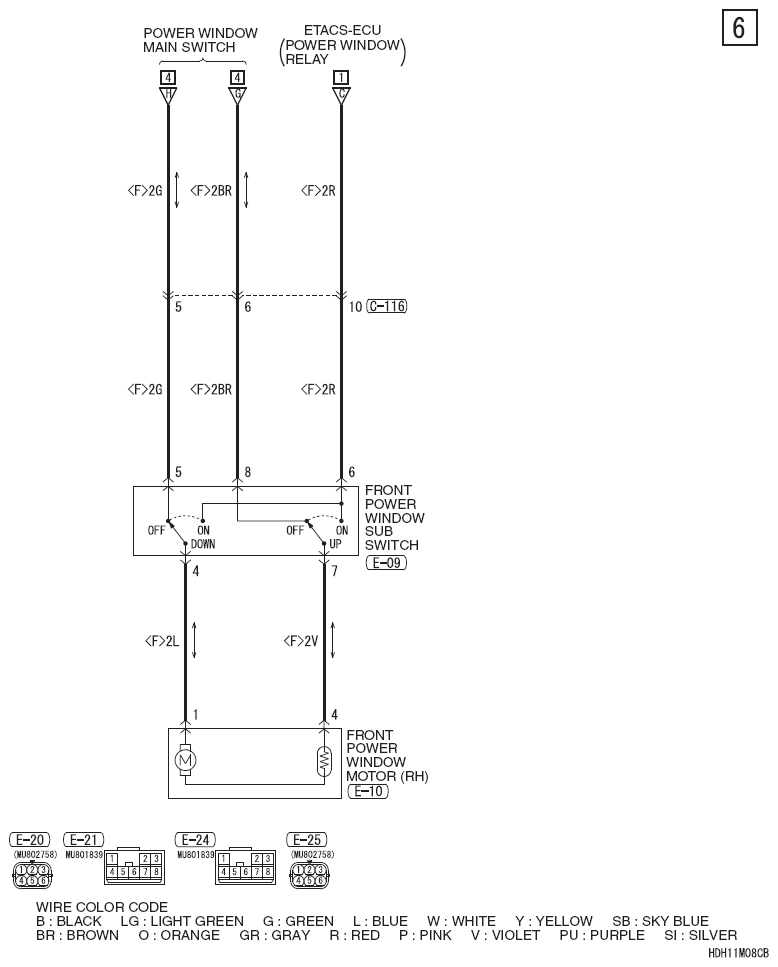

Fig 6: Power Windows Circuit Diagram (6 Of 6)

G08304820

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
