Cruise Control System - M/T

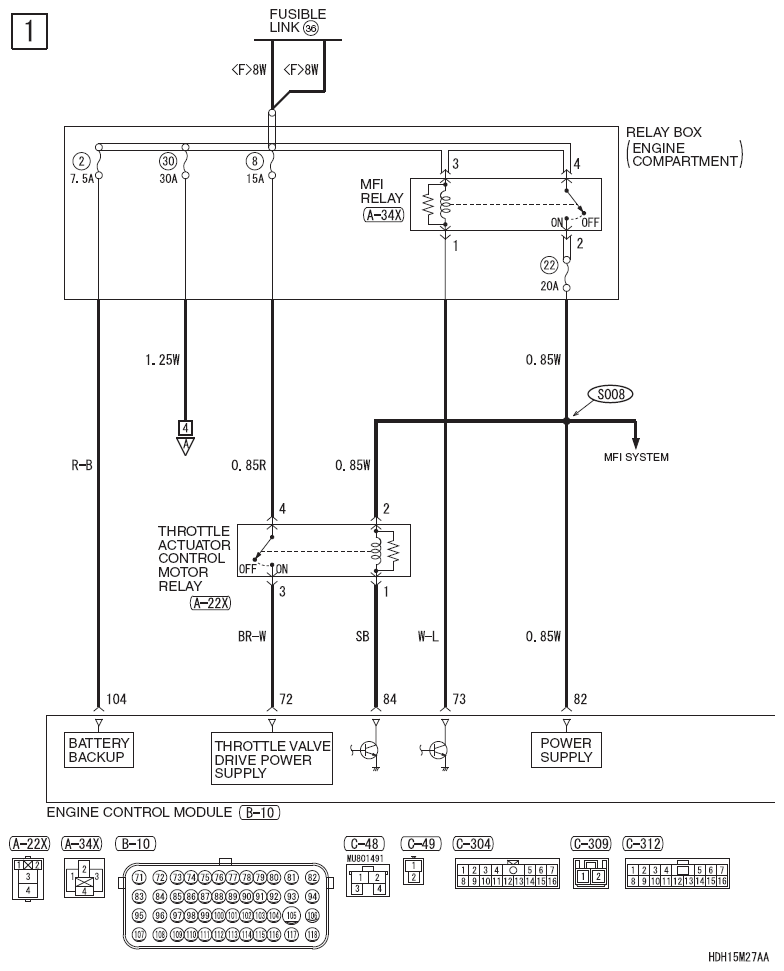

Fig 1: Cruise Control System Circuit Diagram - M/T (1 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

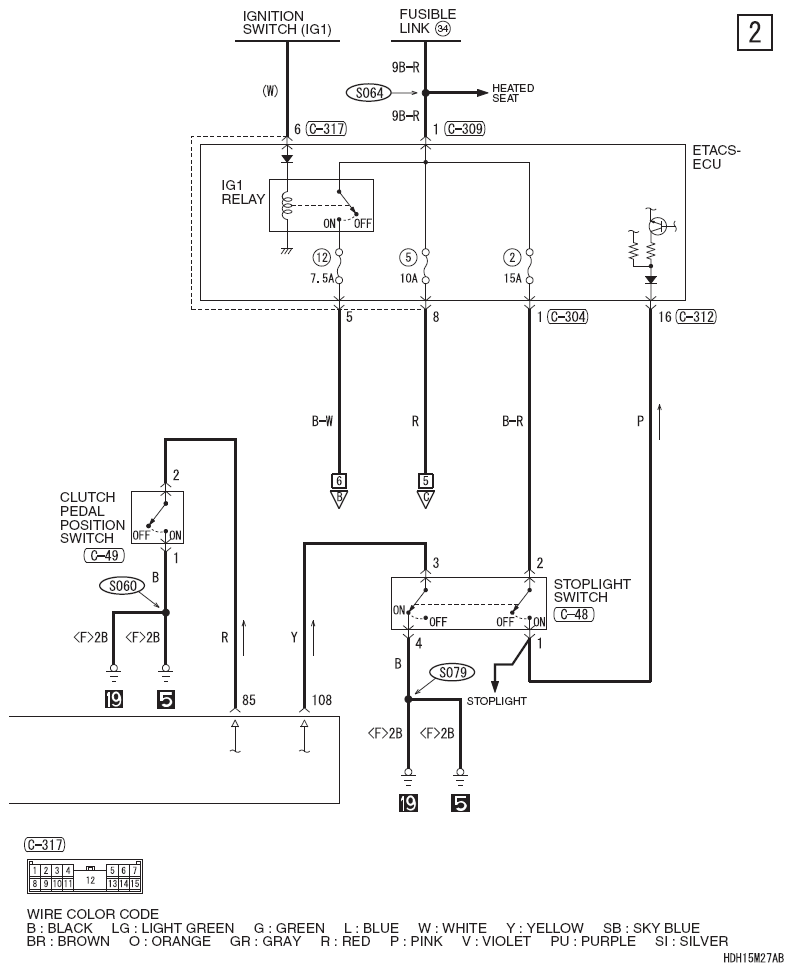

Fig 2: Cruise Control System Circuit Diagram - M/T (2 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

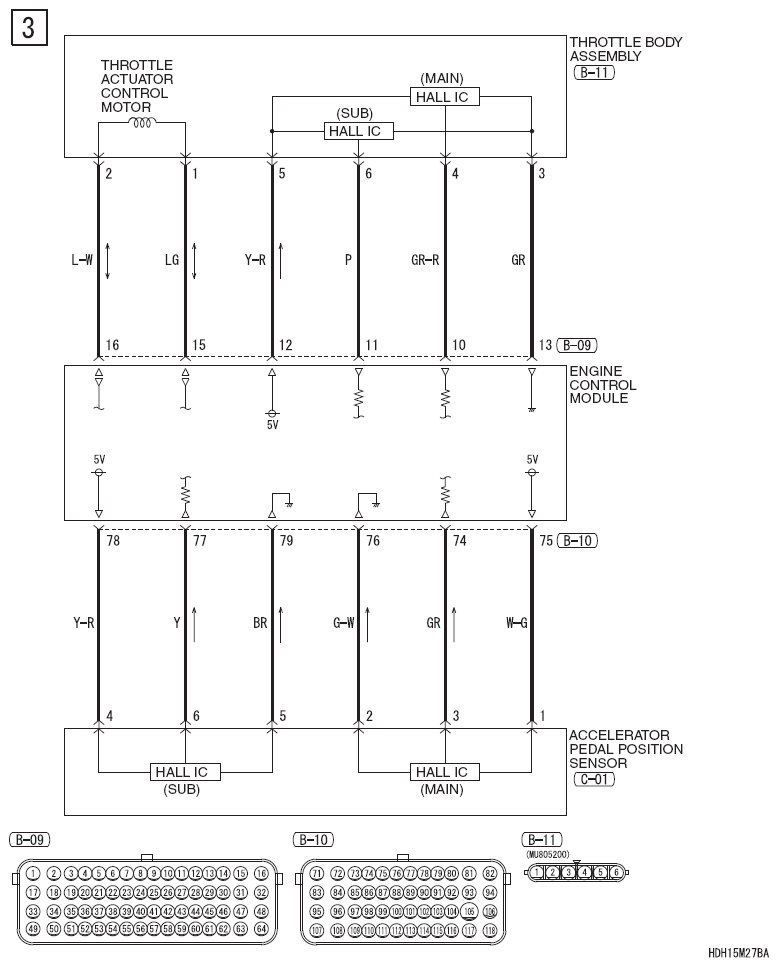

Fig 3: Cruise Control System Circuit Diagram - M/T (3 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

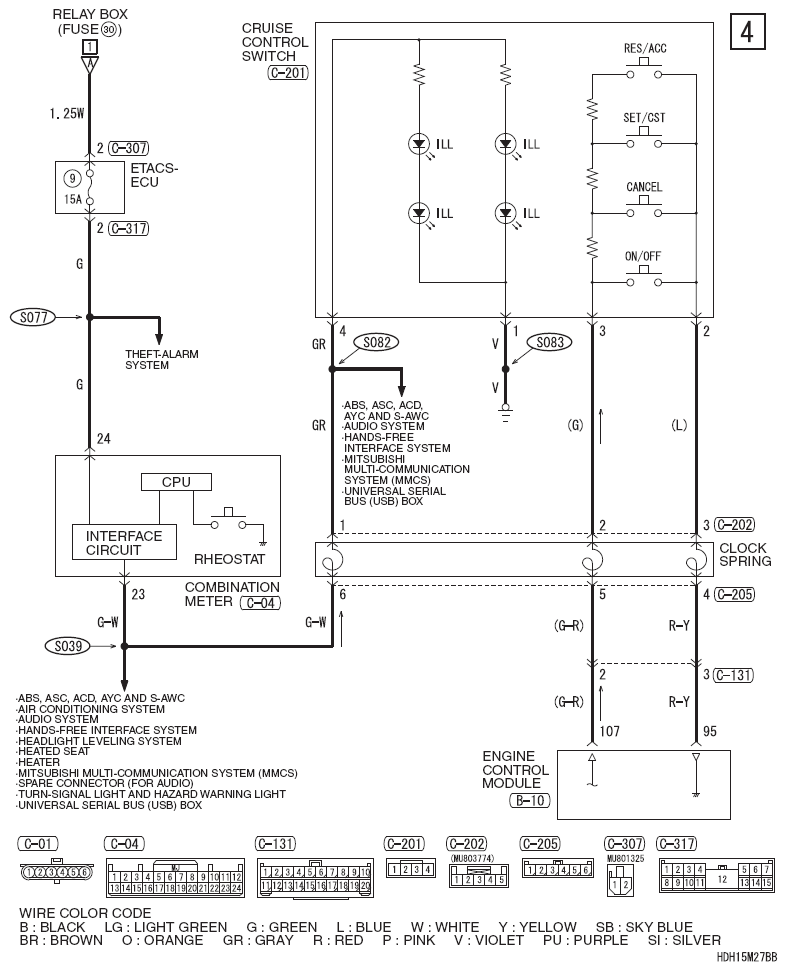

Fig 4: Cruise Control System Circuit Diagram - M/T (4 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

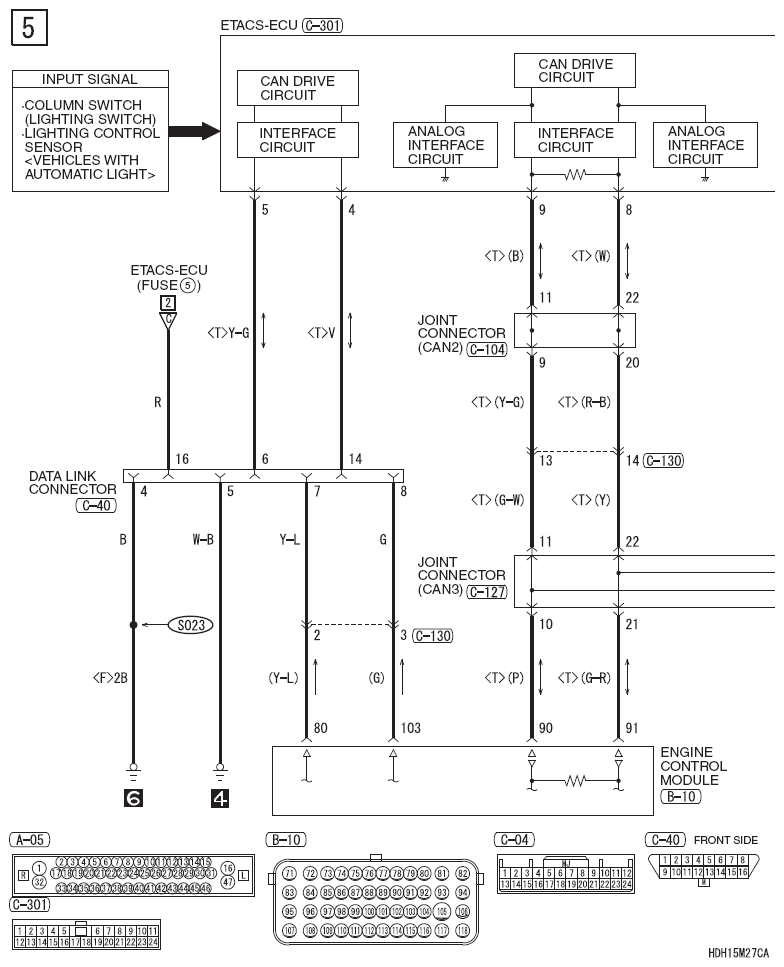

Fig 5: Cruise Control System Circuit Diagram - M/T (5 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

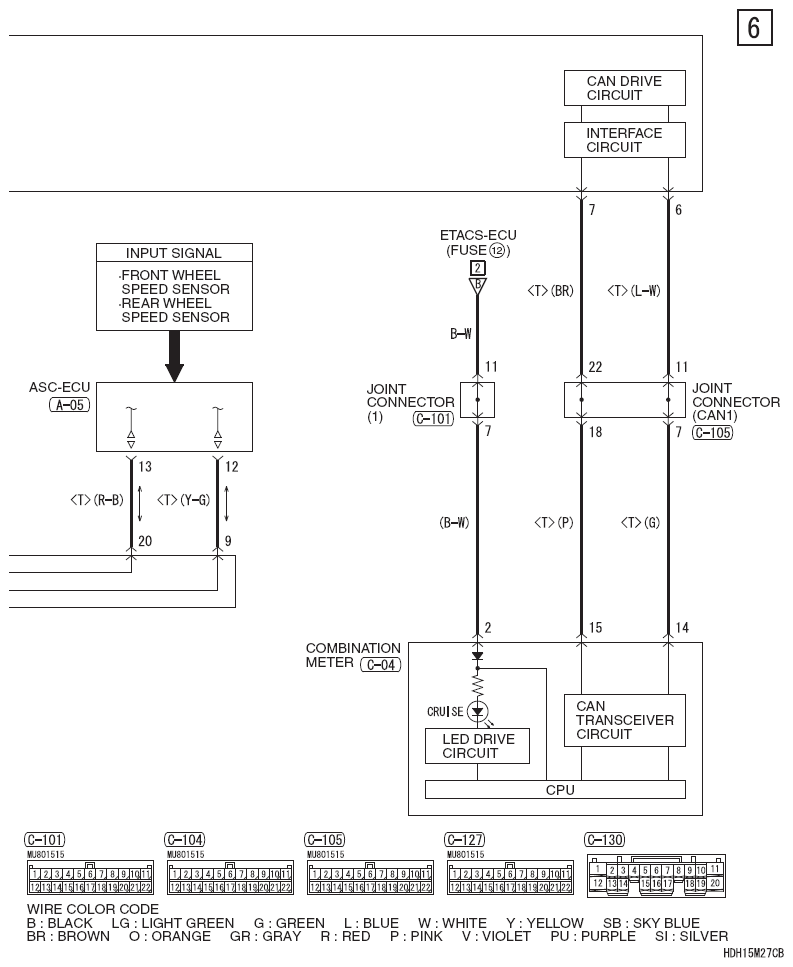

Fig 6: Cruise Control System Circuit Diagram - M/T (6 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
