Charging System - TC-SST

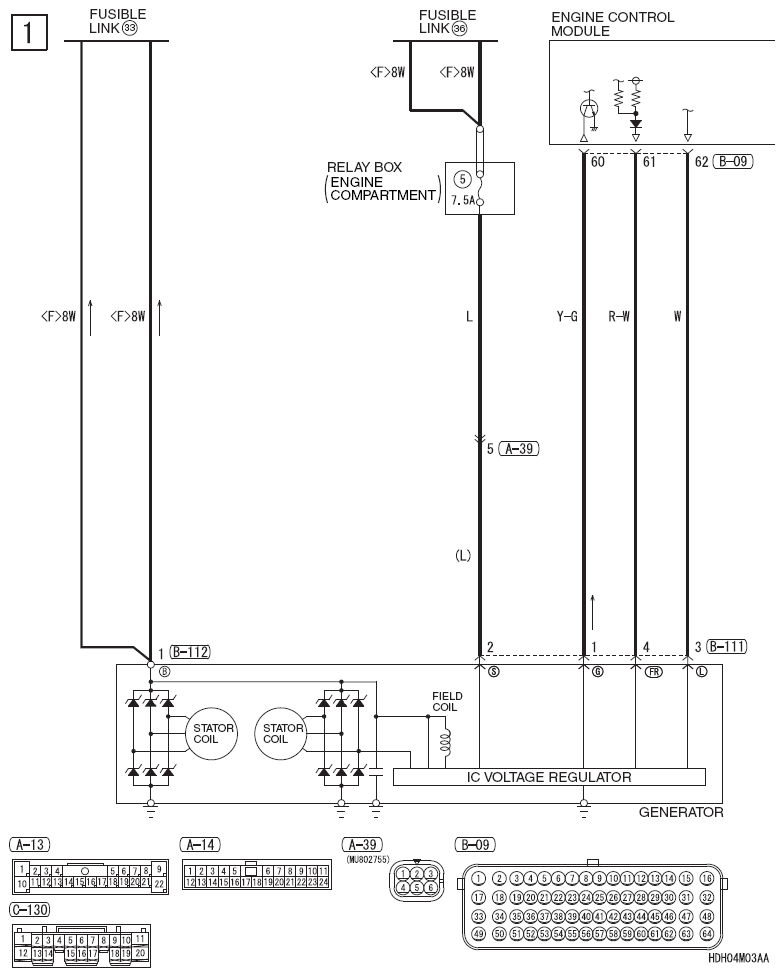

Fig 1: Charging System Circuit Diagram - TC-SST (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

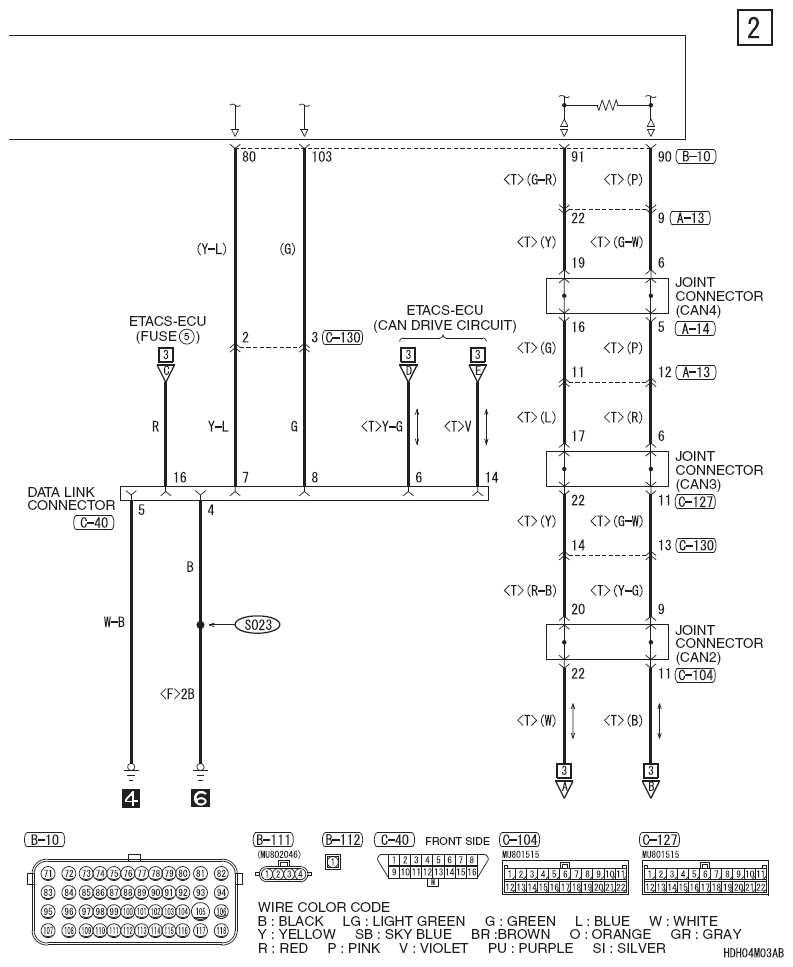

Fig 2: Charging System Circuit Diagram - TC-SST (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

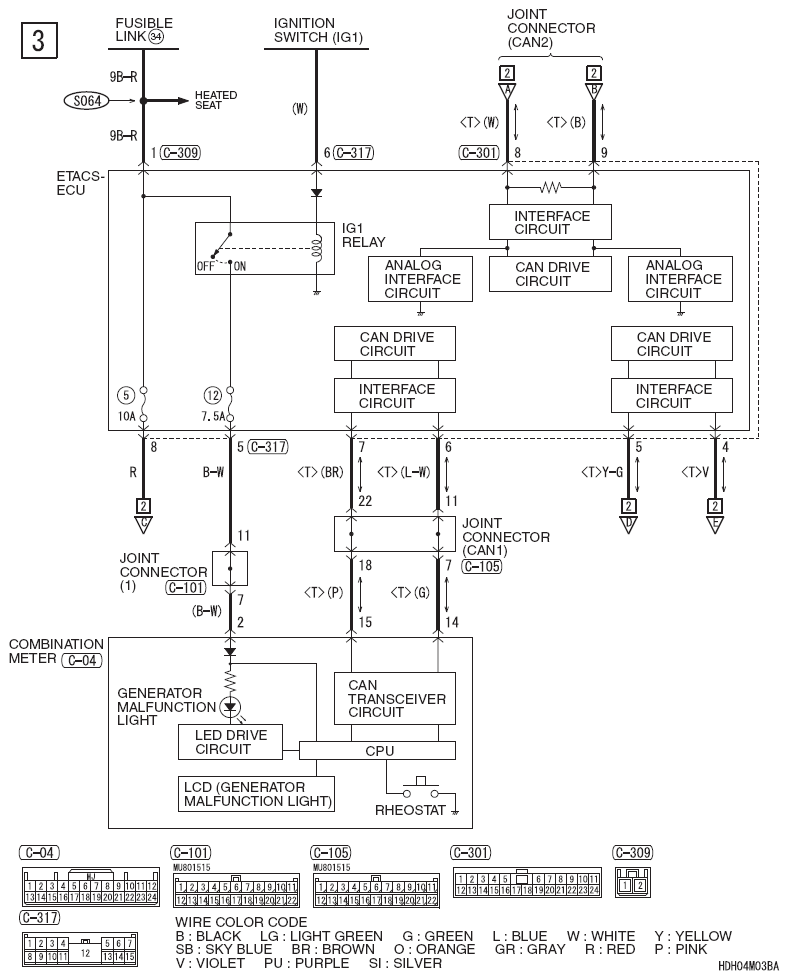

Fig 3: Charging System Circuit Diagram - TC-SST (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
