Inspection Procedure 15: Keyless Entry System Does Not Work: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

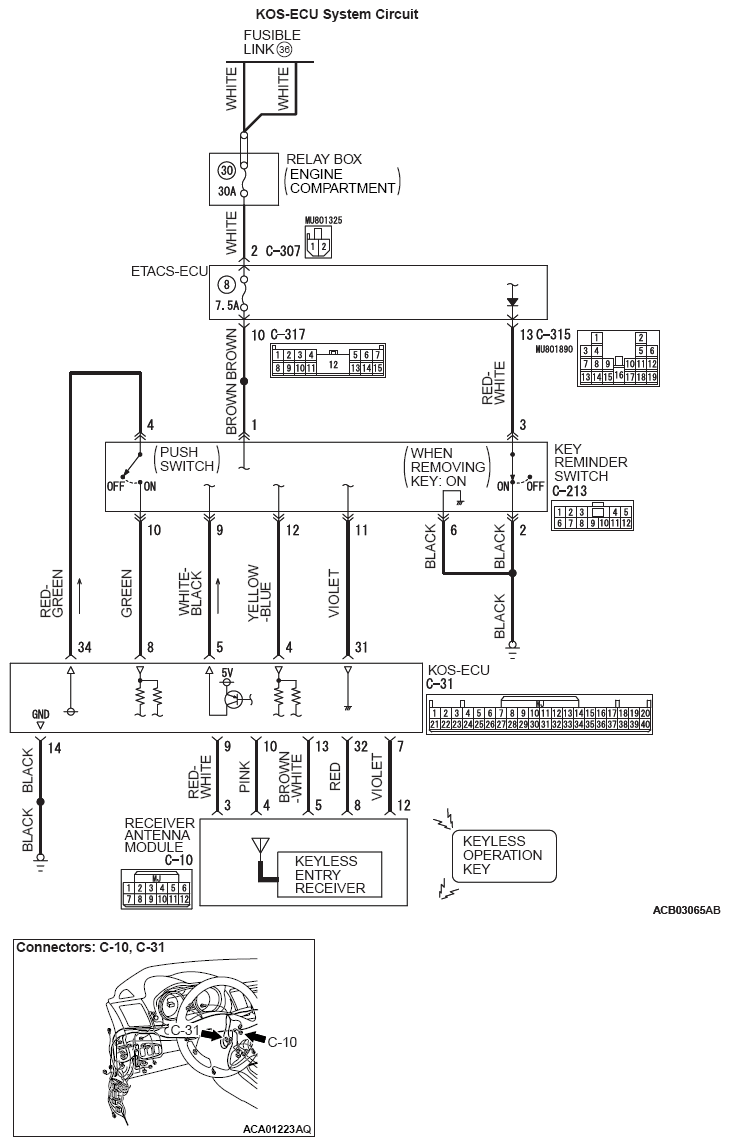

Fig 1: KOS-ECU System Circuit Diagram
G08294710Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
