Removal And Installation
WARNING:
This page is about a different variant/trim than selected.

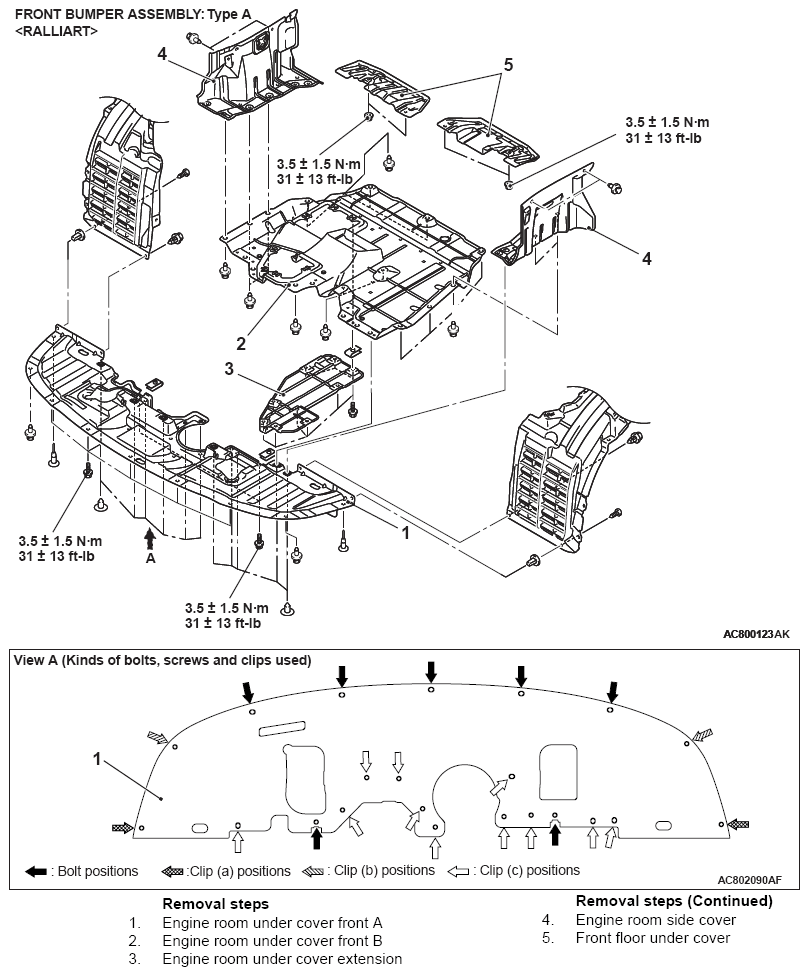

Fig 1: Under Cover Components With Torque Specifications (Type A, Ralliart)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

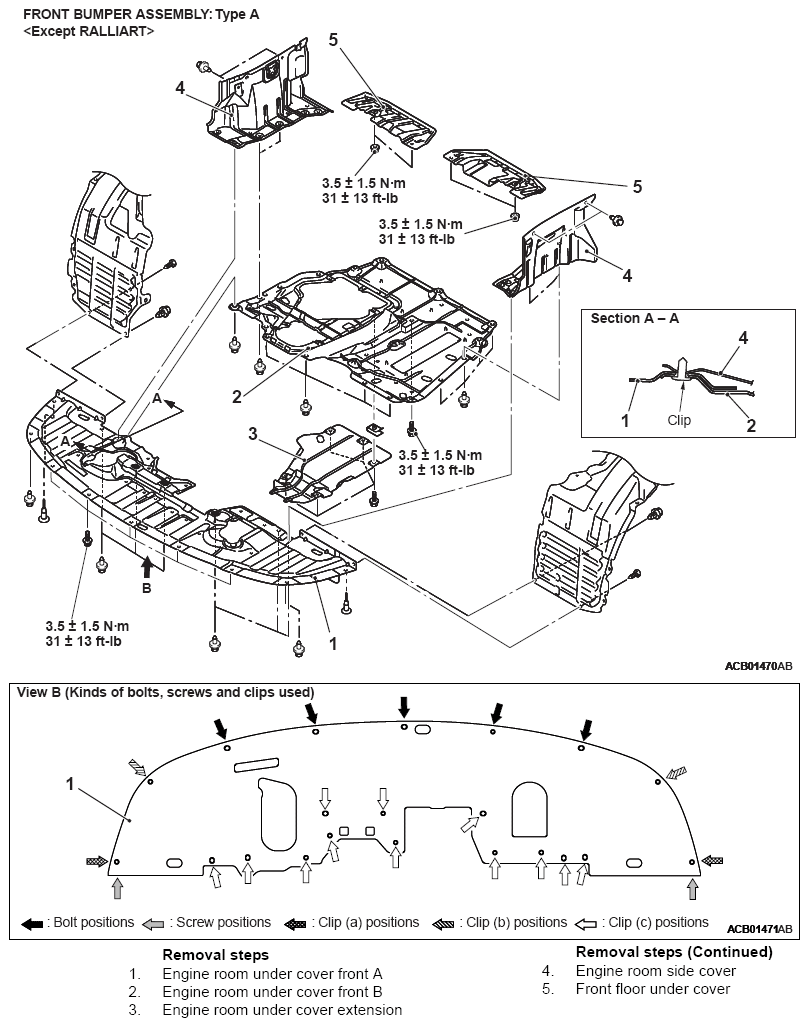

Fig 2: Under Cover Components With Torque Specifications (Type A, Except Ralliart)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

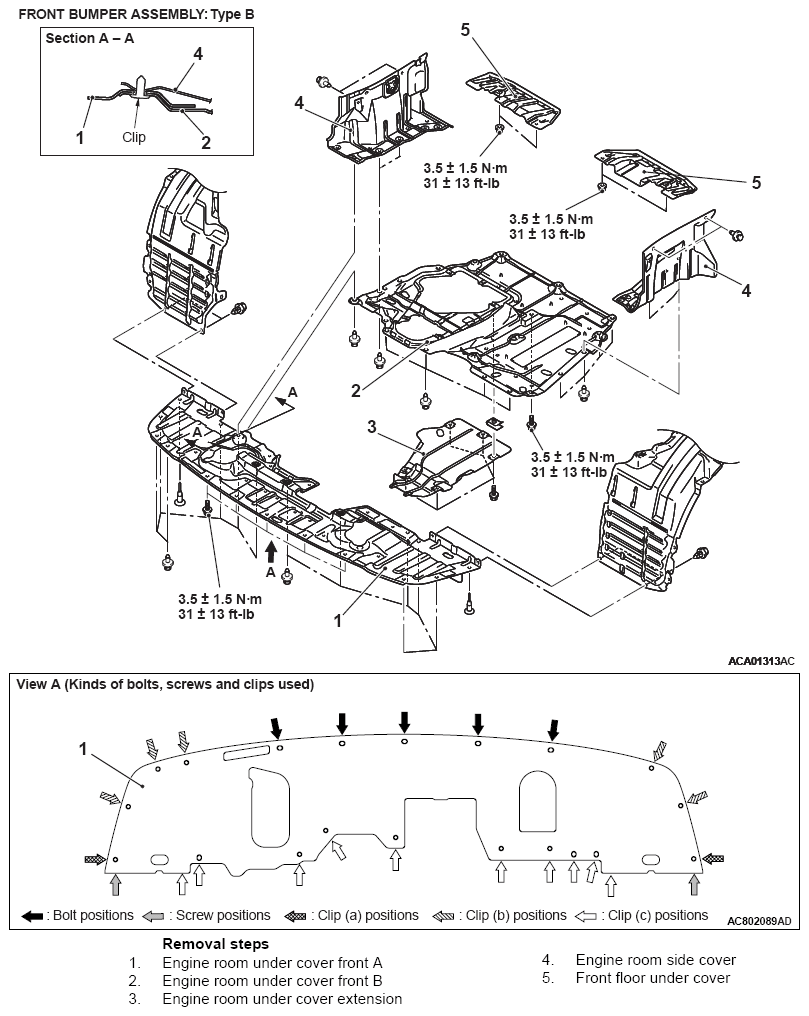

Fig 3: Under Cover Components With Torque Specifications (Type B)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
