Fuel Tank Assembly

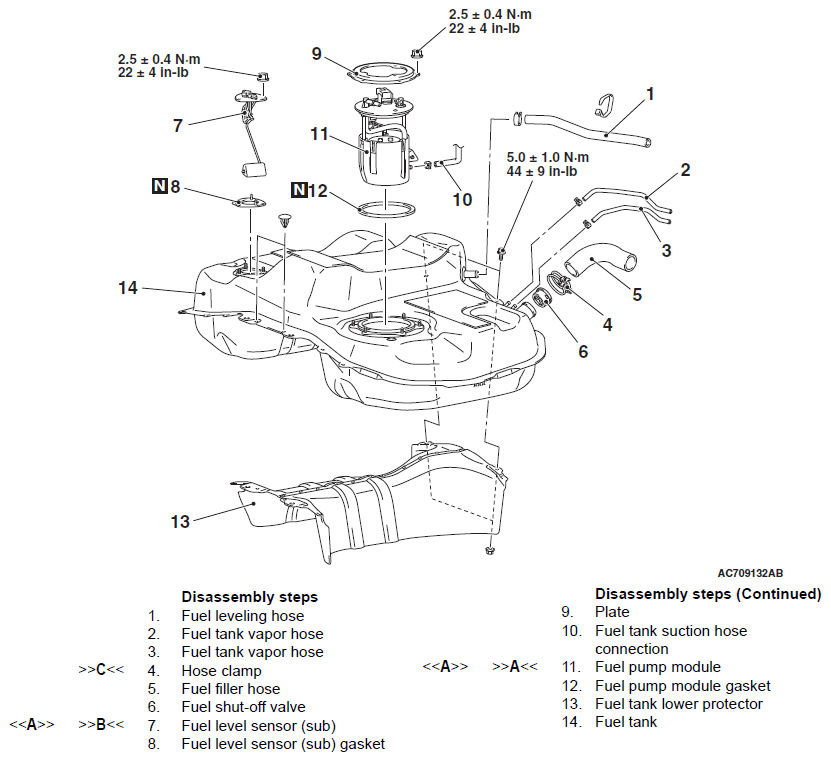

Fig 1: Exploded View Fuel Tank Assembly With Torque Specifications
G06676686Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
