Engine Compartment

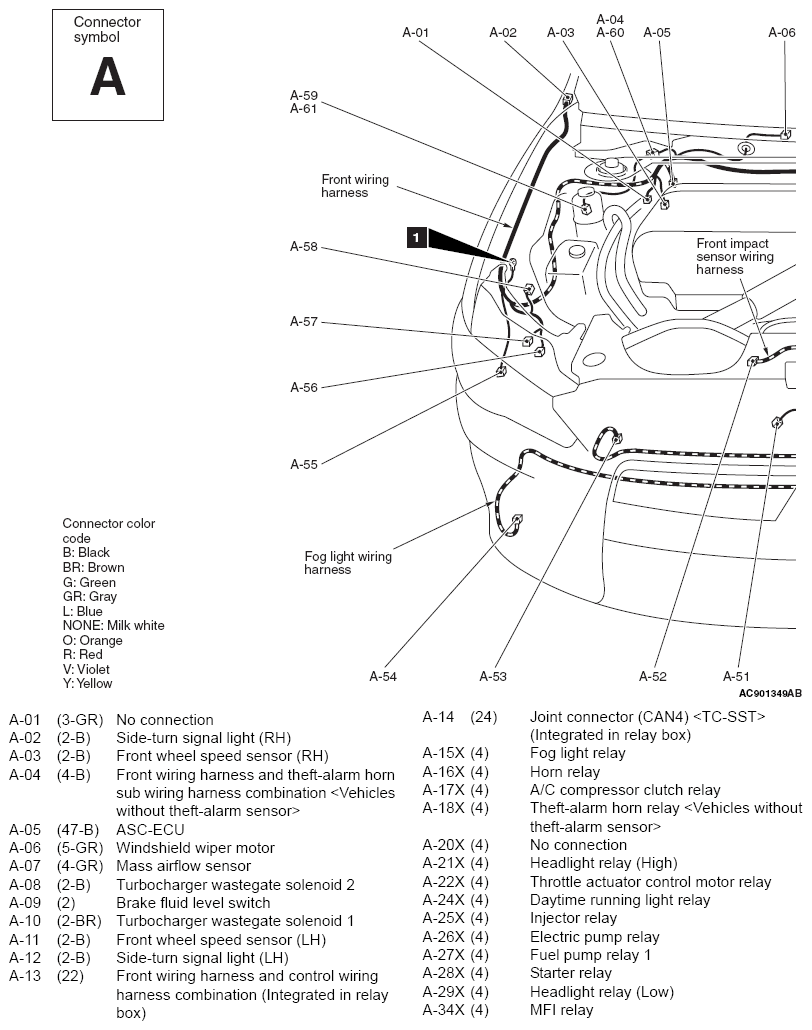

Fig 1: Wiring Harness & Connector Locations - Engine Compartment (1 Of 2)
G08304627Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

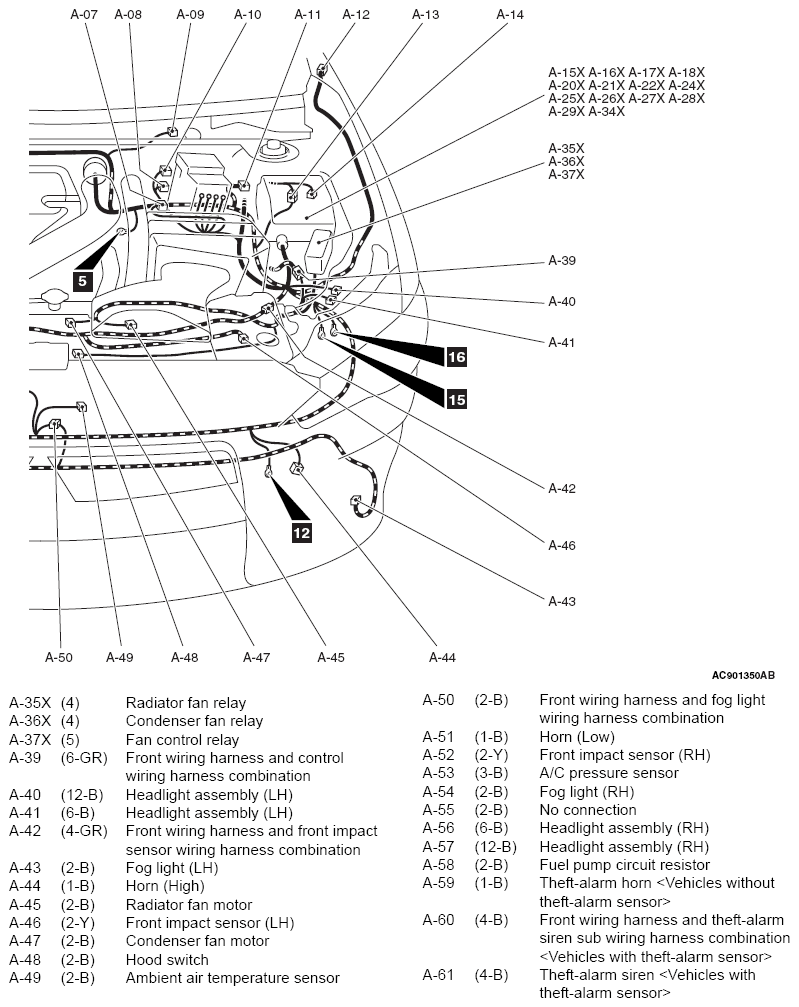

Fig 2: Wiring Harness & Connector Locations - Engine Compartment (2 Of 2)
G08304628Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
