Removal And Installation: Notes
CAUTION:
When connecting the reservoir hose assembly, do not apply lubricant.
No foreign matter should be allowed in the hydraulic unit and hose connection part.

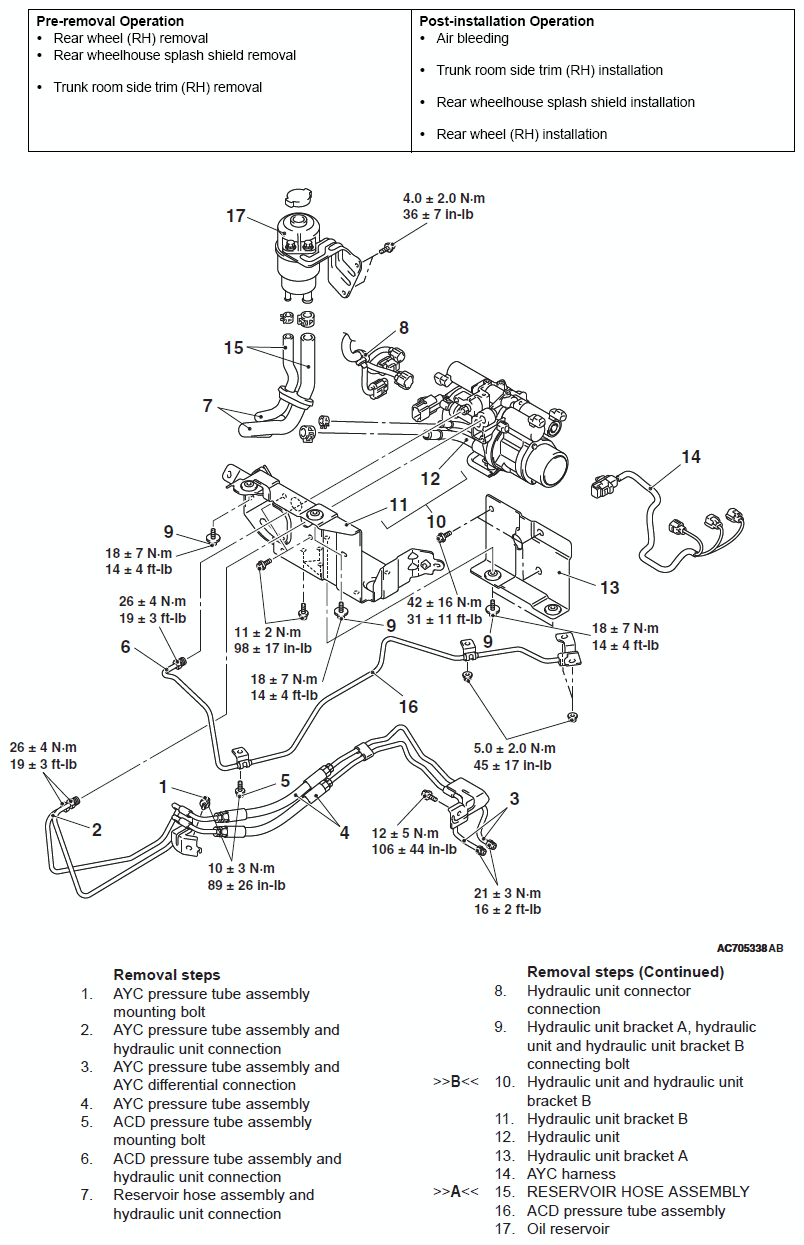

Fig 1: Hydraulic Unit Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
