Rear Window Defogger Does Not Operate: Notes

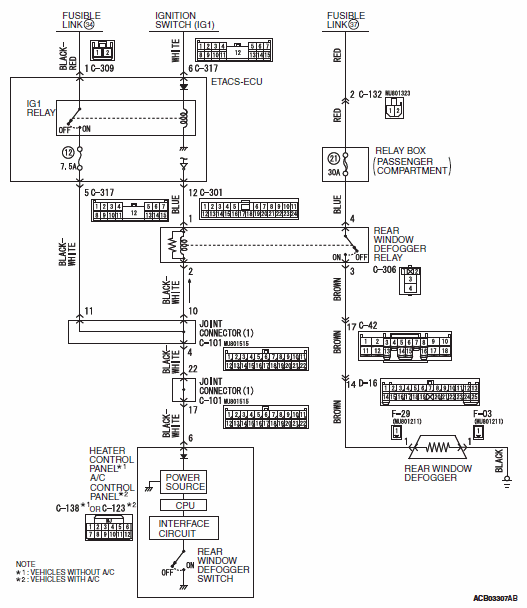

Fig 1: Rear Window Defogger Circuit Diagram
G00523326Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

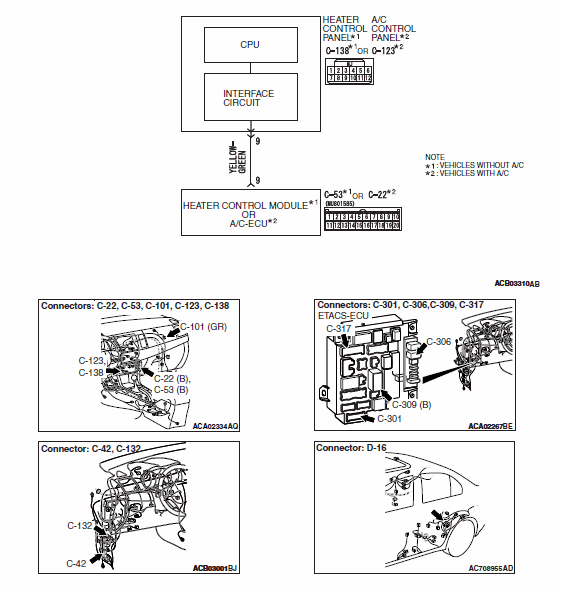

Fig 2: A/C Control Panel Circuit Diagram
G00523327Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Locating Connectors F-03 & F-29
G00523328Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
