Fuse Block: Application and ID




CENTRALIZED JUNCTION

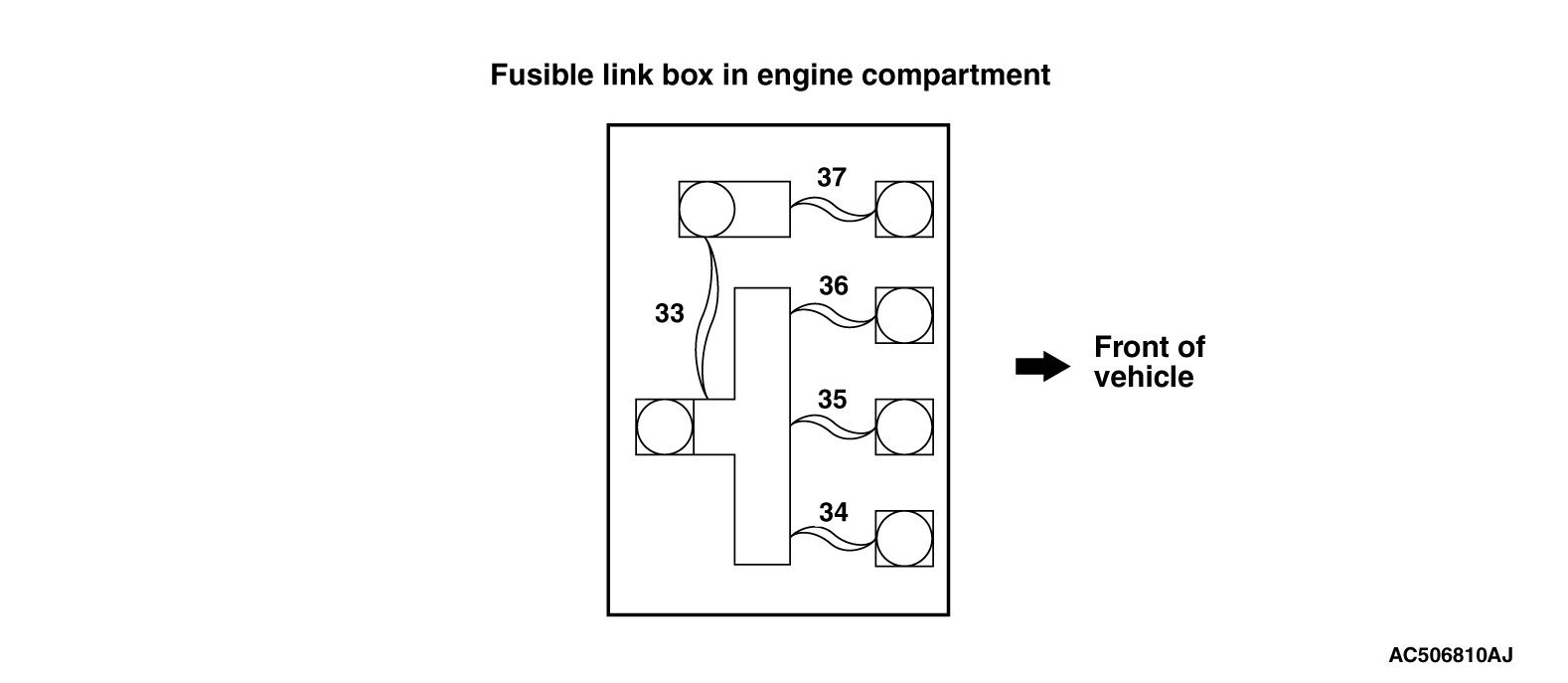

FUSIBLE LINK AND FUSE

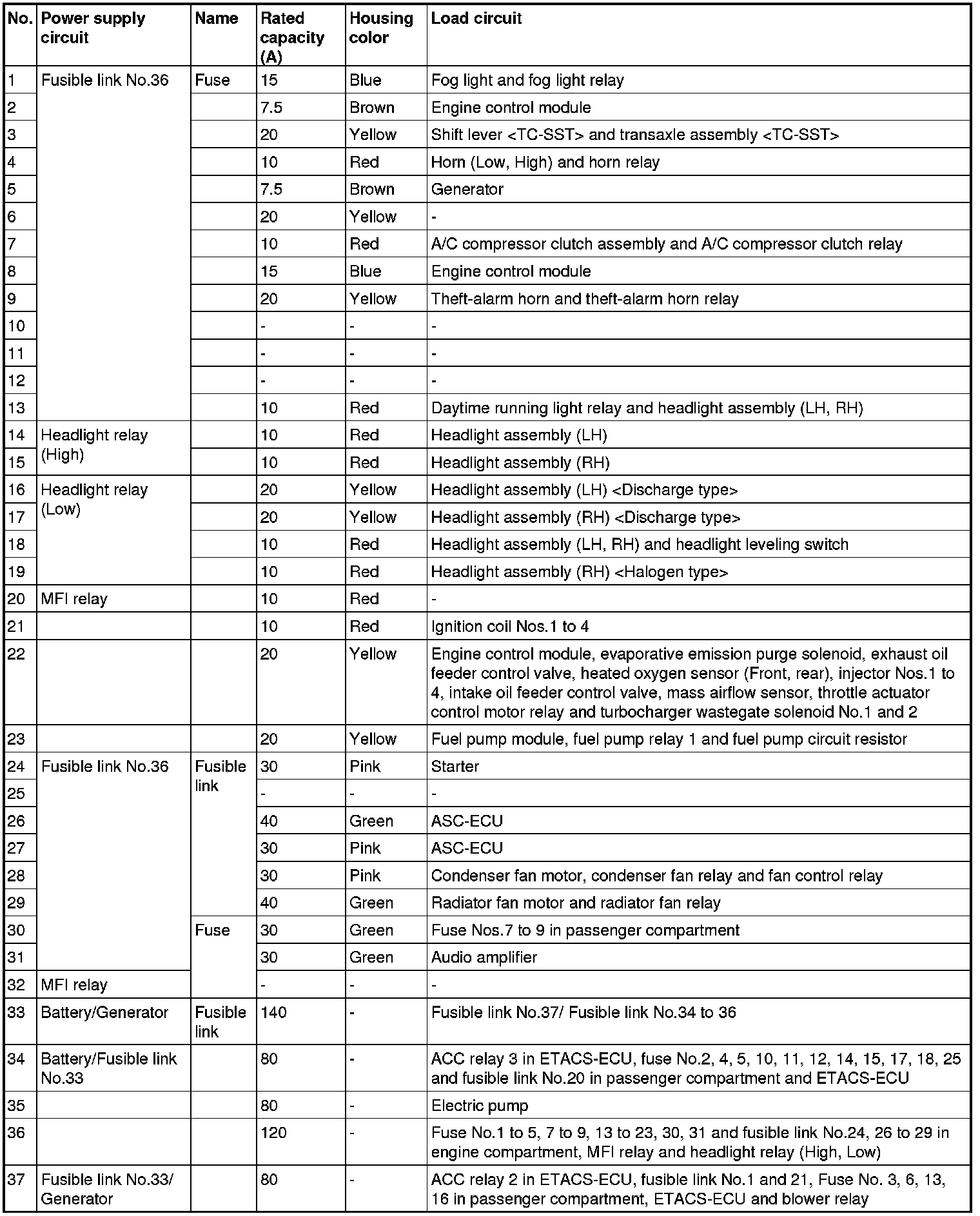

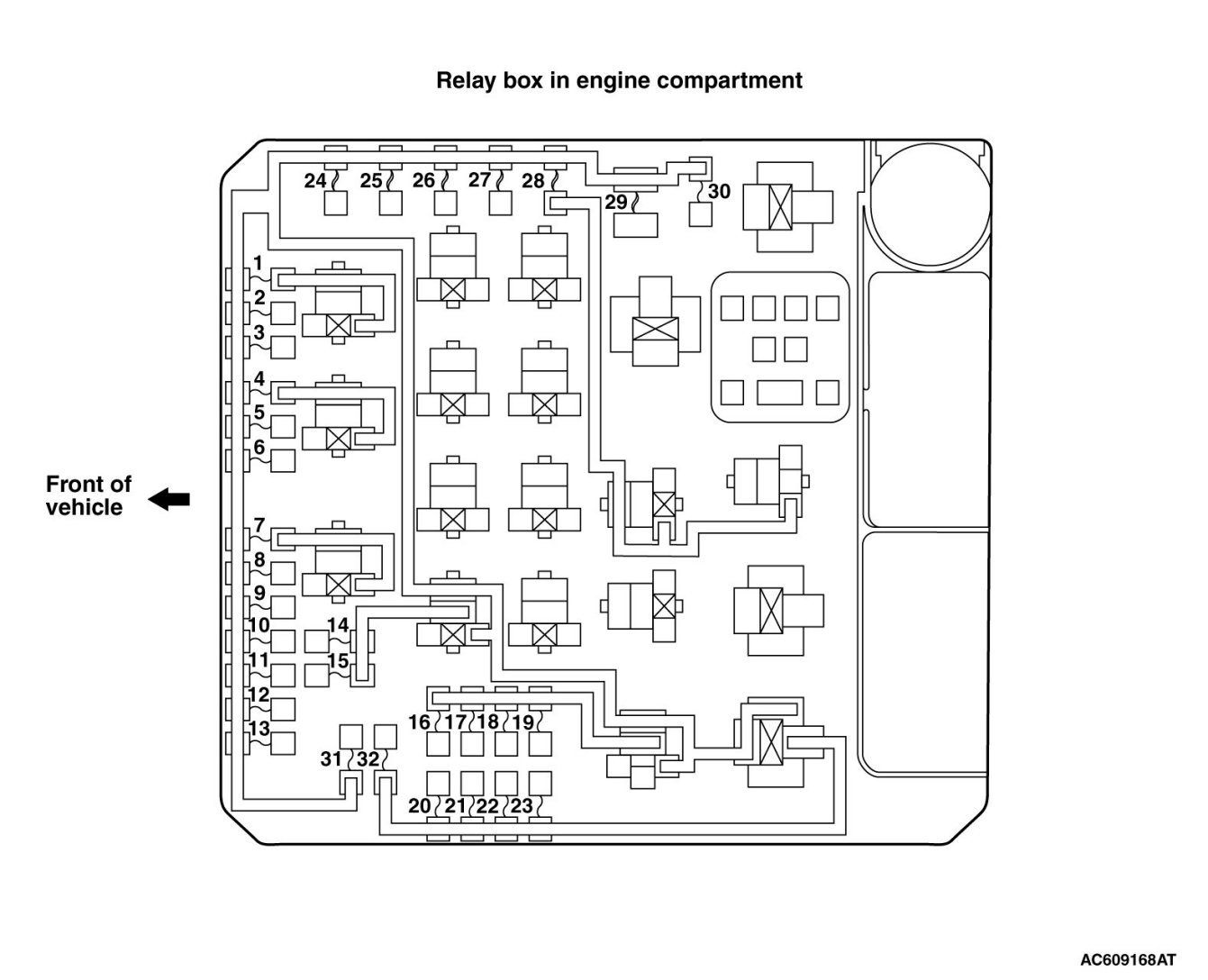

ENGINE COMPARTMENT

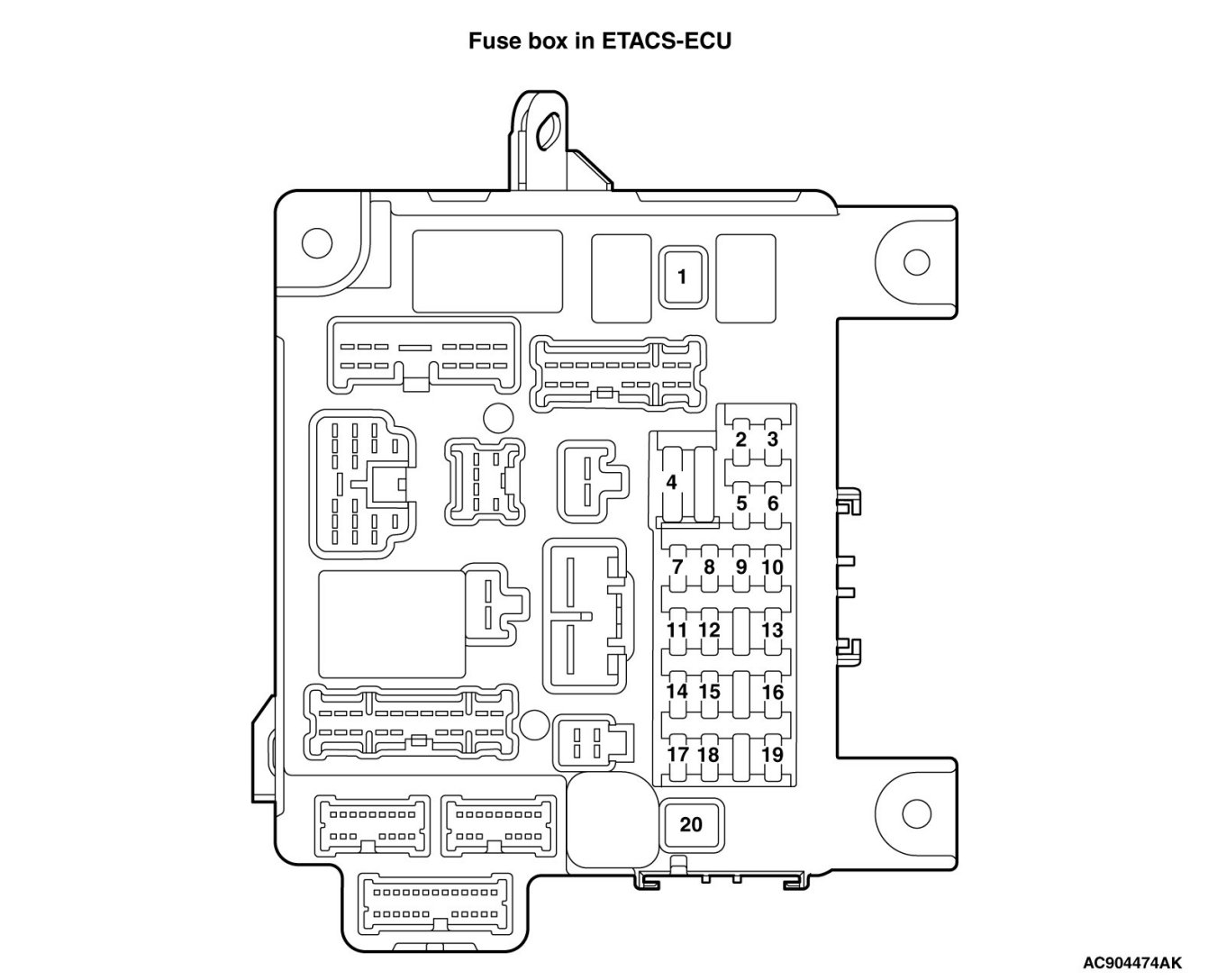

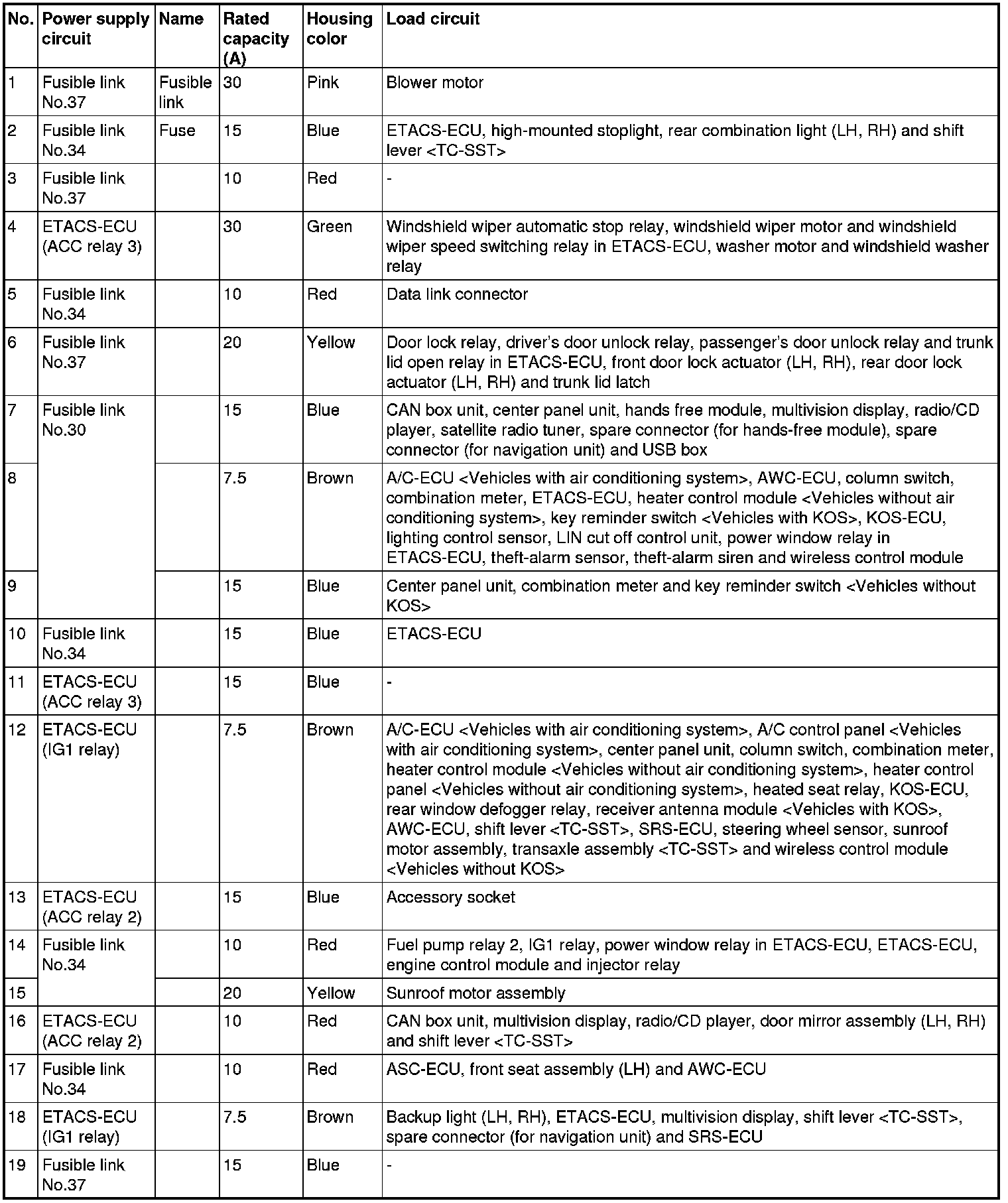

PASSENGER COMPARTMENT

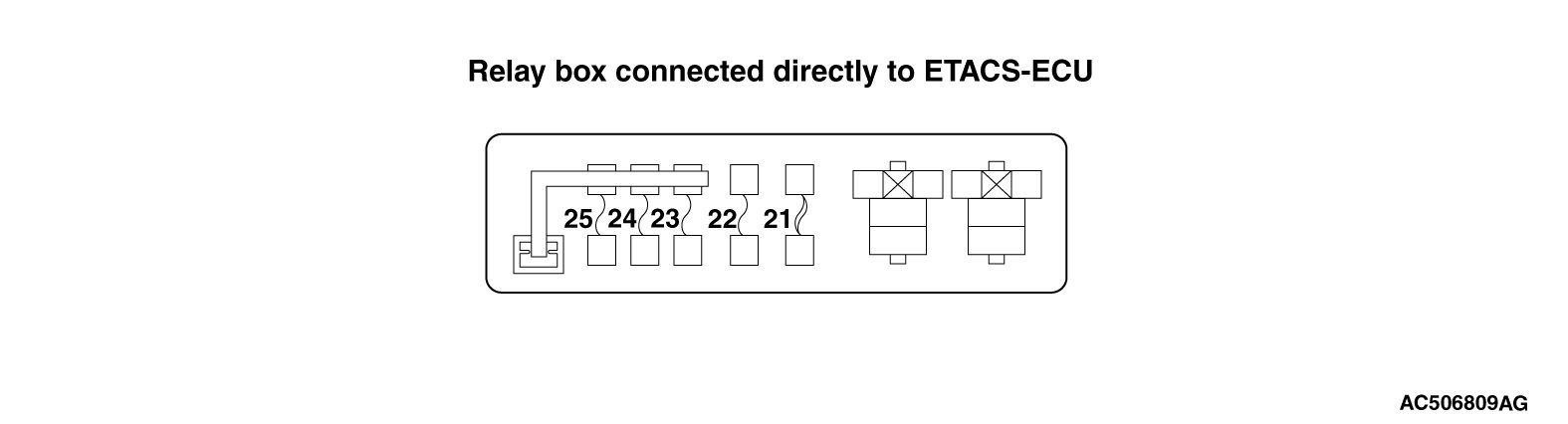

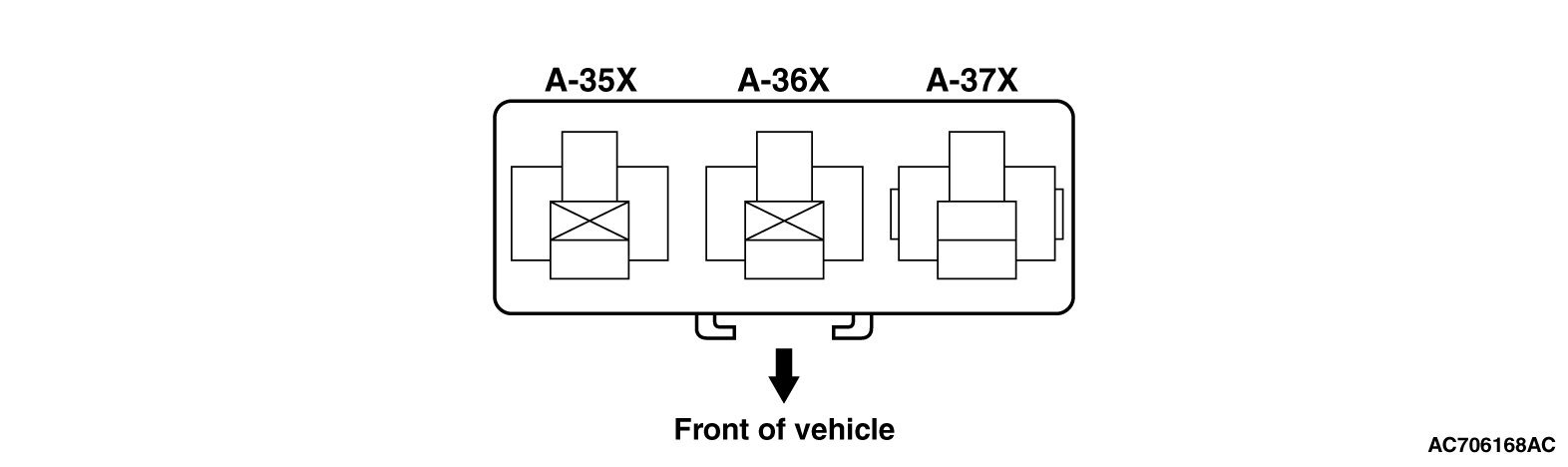

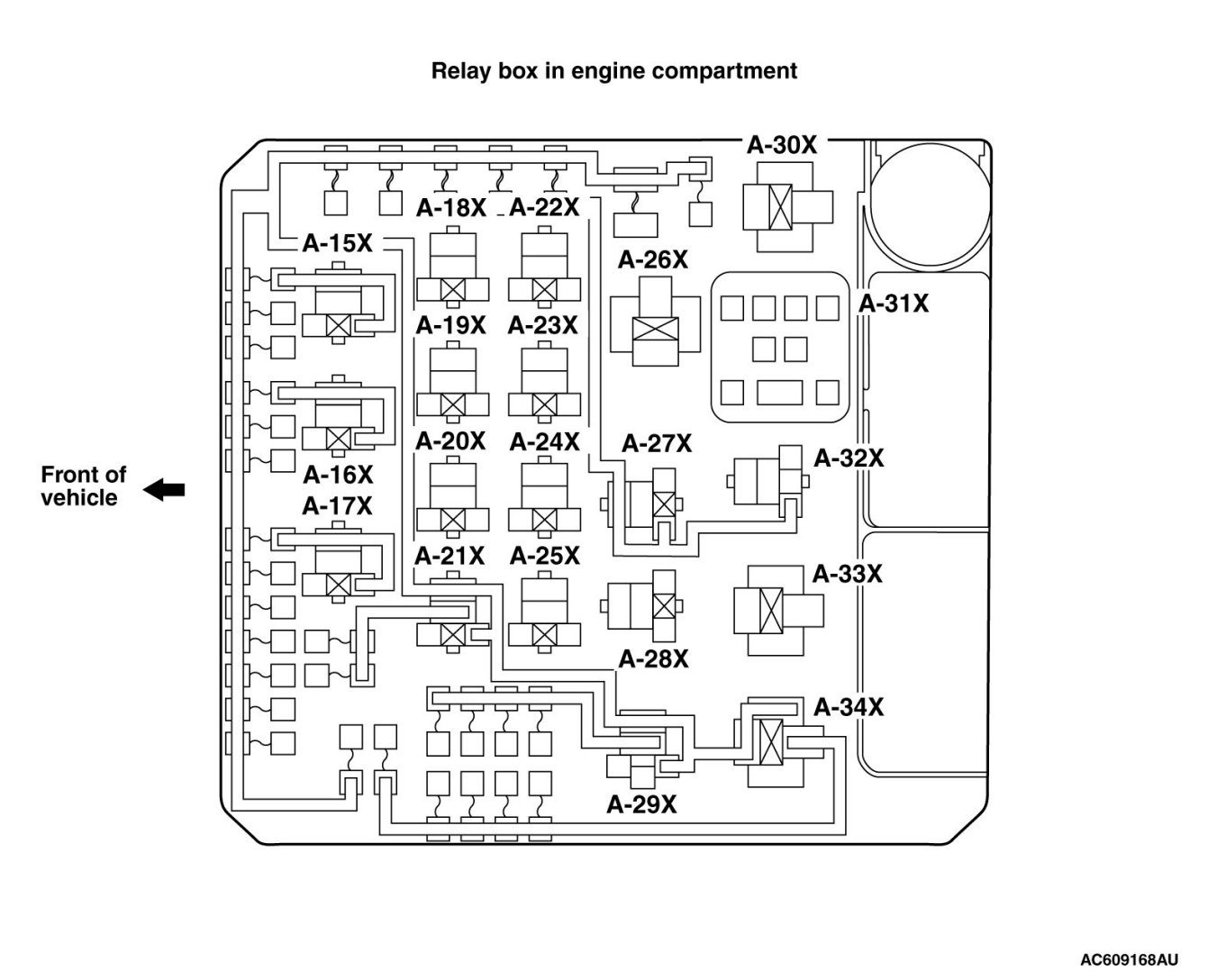

CENTRALIZED RELAY
