Removal And Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.

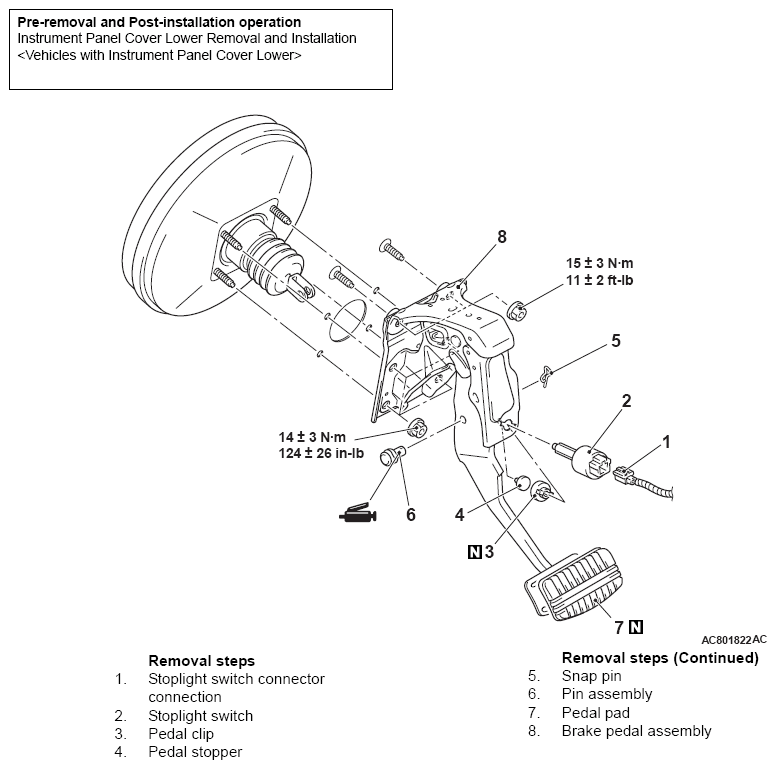

Fig 1: Brake Pedal Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
