Inspection Procedure 1: Power Supply Circuit Check: Notes

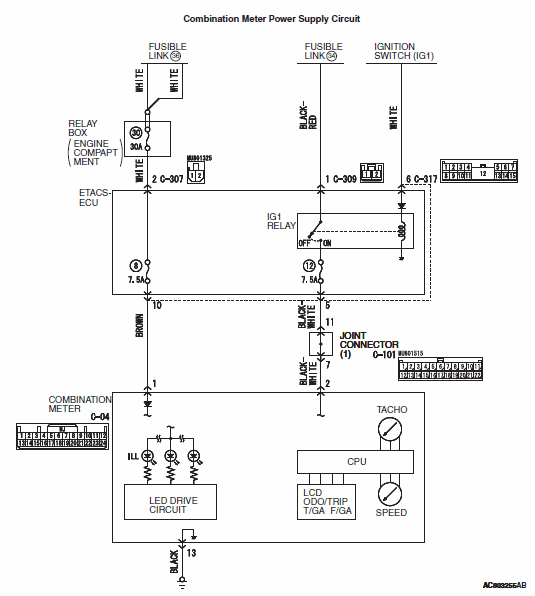

Fig 1: Combination Meter Power Supply Circuit Diagram
G00527941Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

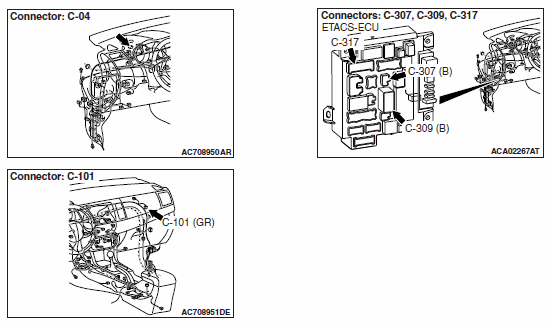

Fig 2: Locating Combination Meter Power Supply Connectors
G00527942Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
