Lubrication Points

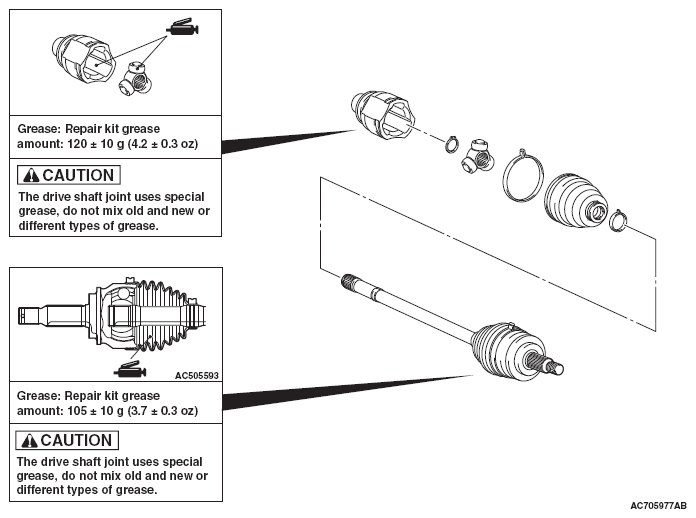

Fig 1: Identifying Lubrication Points Driveshaft Assembly
G05904326Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
