INSPECTION PROCEDURE 1: Power Windows Do Not Work At All: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

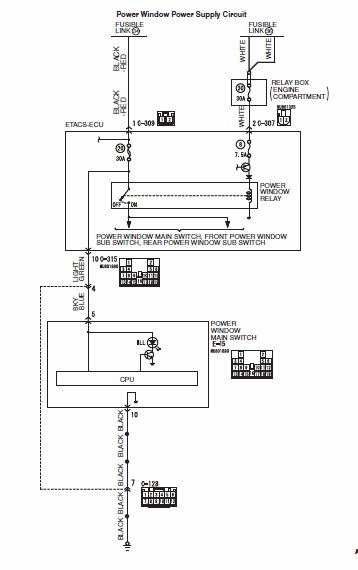

Fig 1: Power Window Power Supply Circuit Diagram
G00527075Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Locating Connector C-128
G00527076Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Locating Connector E-15
G00527068Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Locating Connectors C-307, C-309 & C-315
G00527077Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
