Lancer ES, 4D Hatchback
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel Supply System - Lancer
>>
Fuel Tank - 2.4L Engine (AWD)
>>
Disassembly And Assembly
>>
Fuel Pump Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fuel Pump Module
NOTE:
For installation and removal, refer to Fuel Pump Module Replacement in On-vehicle Service (refer to
FUEL PUMP MODULE REPLACEMENT < 2.4L ENGINE (AWD) >
).

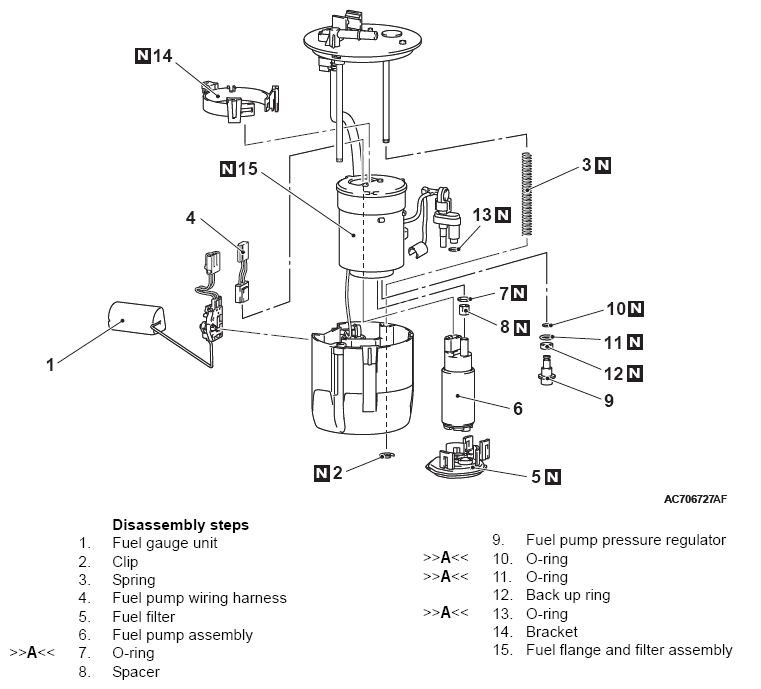

Fig 1: Exploded View Of Fuel Pump Module
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
