Removal And Installation (2.0L Engine Turbo): Notes

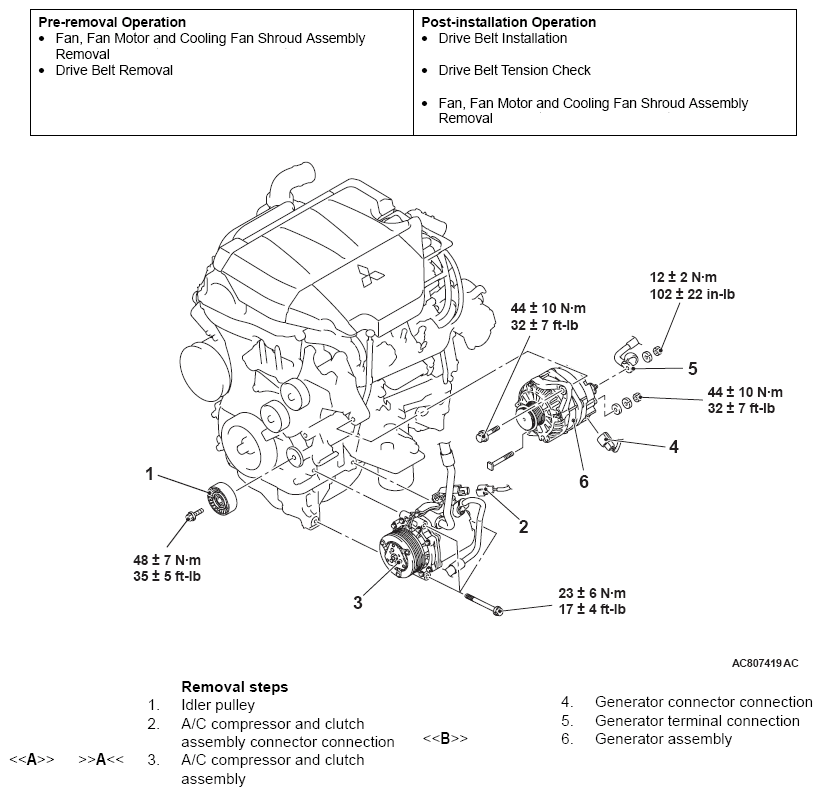

Fig 1: Generator Assembly Components With Torque Specifications (2.0L Engine Turbo)
G08290670Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
